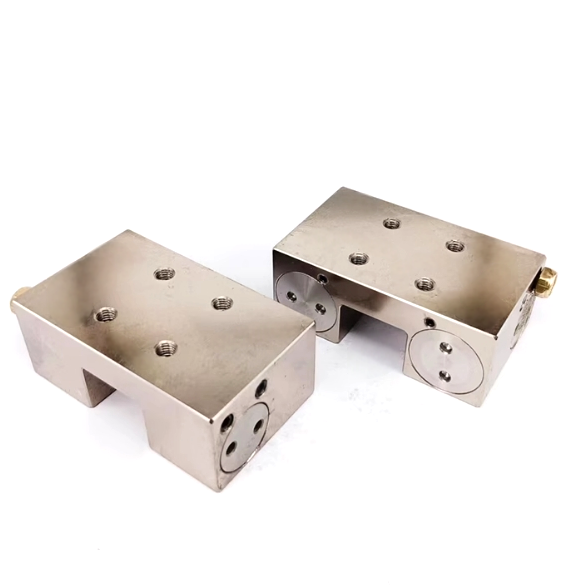

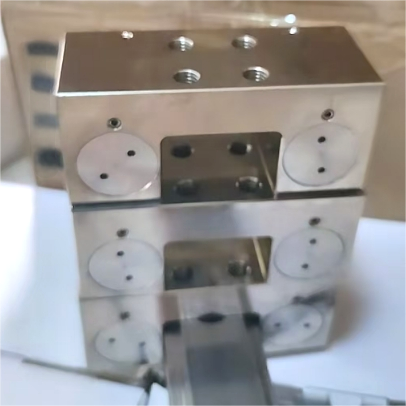

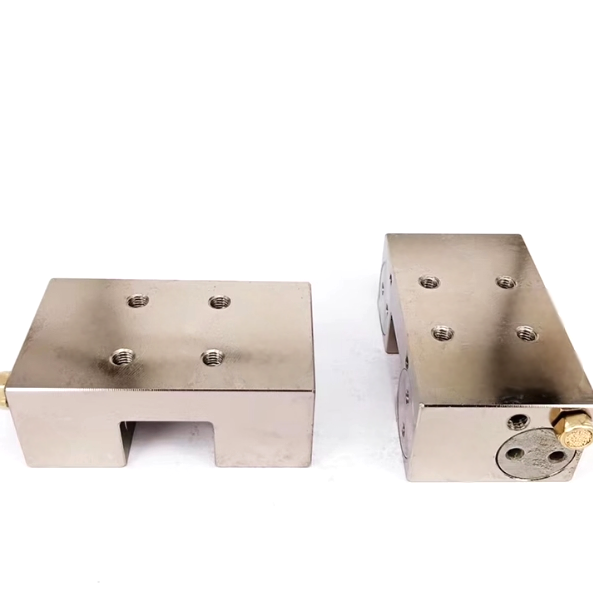

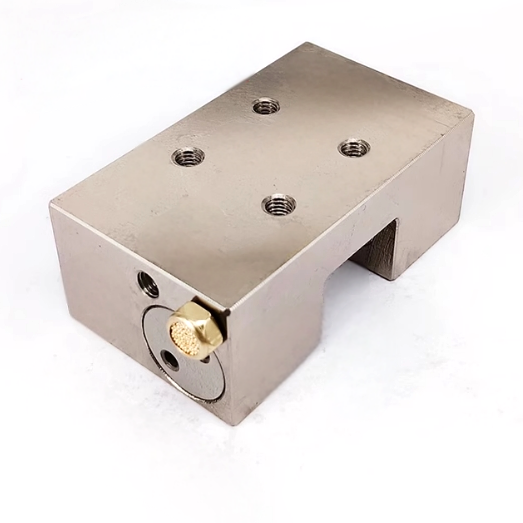

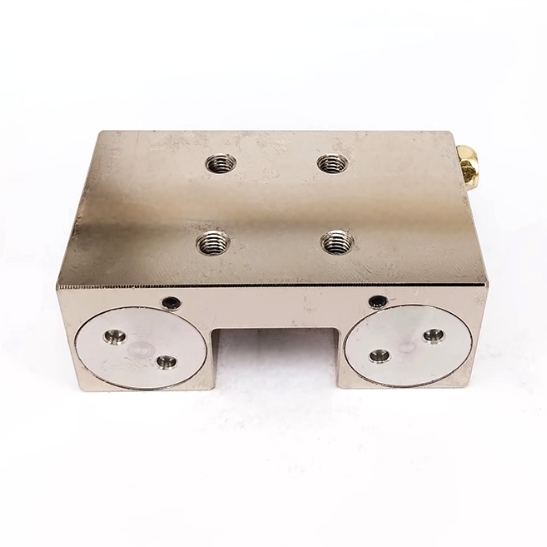

Alternative To MK2001A Pneumatic Normally Open 20mm Guide Clamp Braking
The pneumatic normally open clamp braking operates in a loosened state when air is not supplied and transitions to clamped state when air is supplied.Designed for 20mm linear guides,it offers universal compatibility with most brands available on the market.This clamp serves as a replacement for the popular MK2001A clamp,effectively preventing vibration while enhancing the rigidity and safety of your linear guide system.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 1000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK2001A Clamping Element.
High Durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Product Video
Alternative To MK2001A Pneumatic Normally Open 20mm Guide Clamp Braking
The pneumatic normally open clamp braking operates in a loosened state when air is not supplied and transitions to clamped state when air is supplied.Designed for 20mm linear guides,it offers universal compatibility with most brands available on the market.This clamp serves as a replacement for the popular MK2001A clamp,effectively preventing vibration while enhancing the rigidity and safety of your linear guide system.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 1000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK2001A Clamping Element.
High Durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
