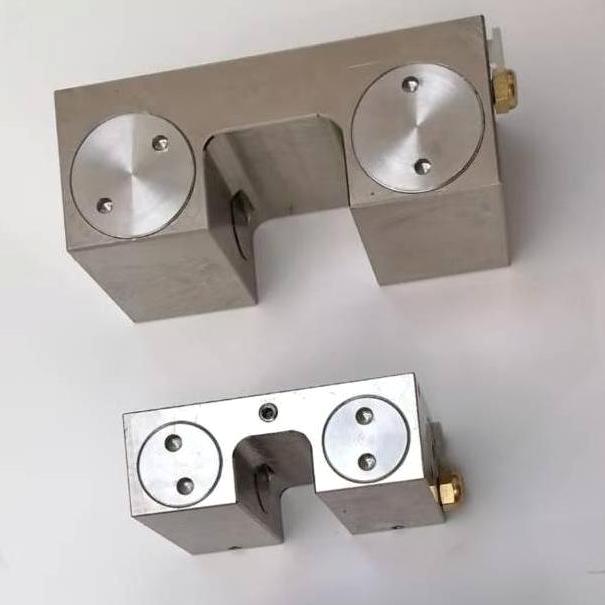

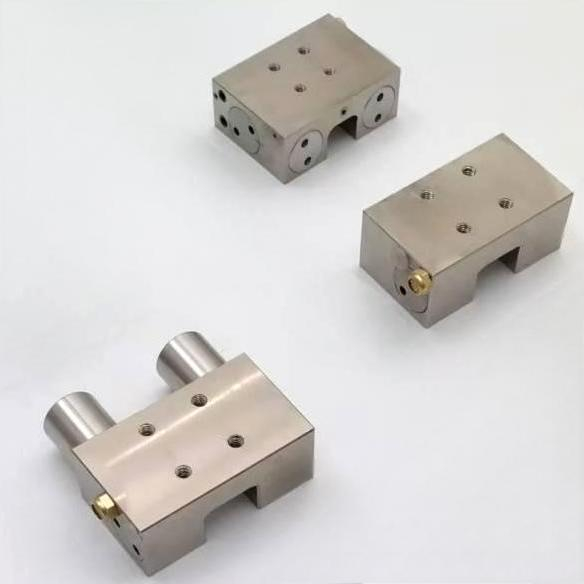

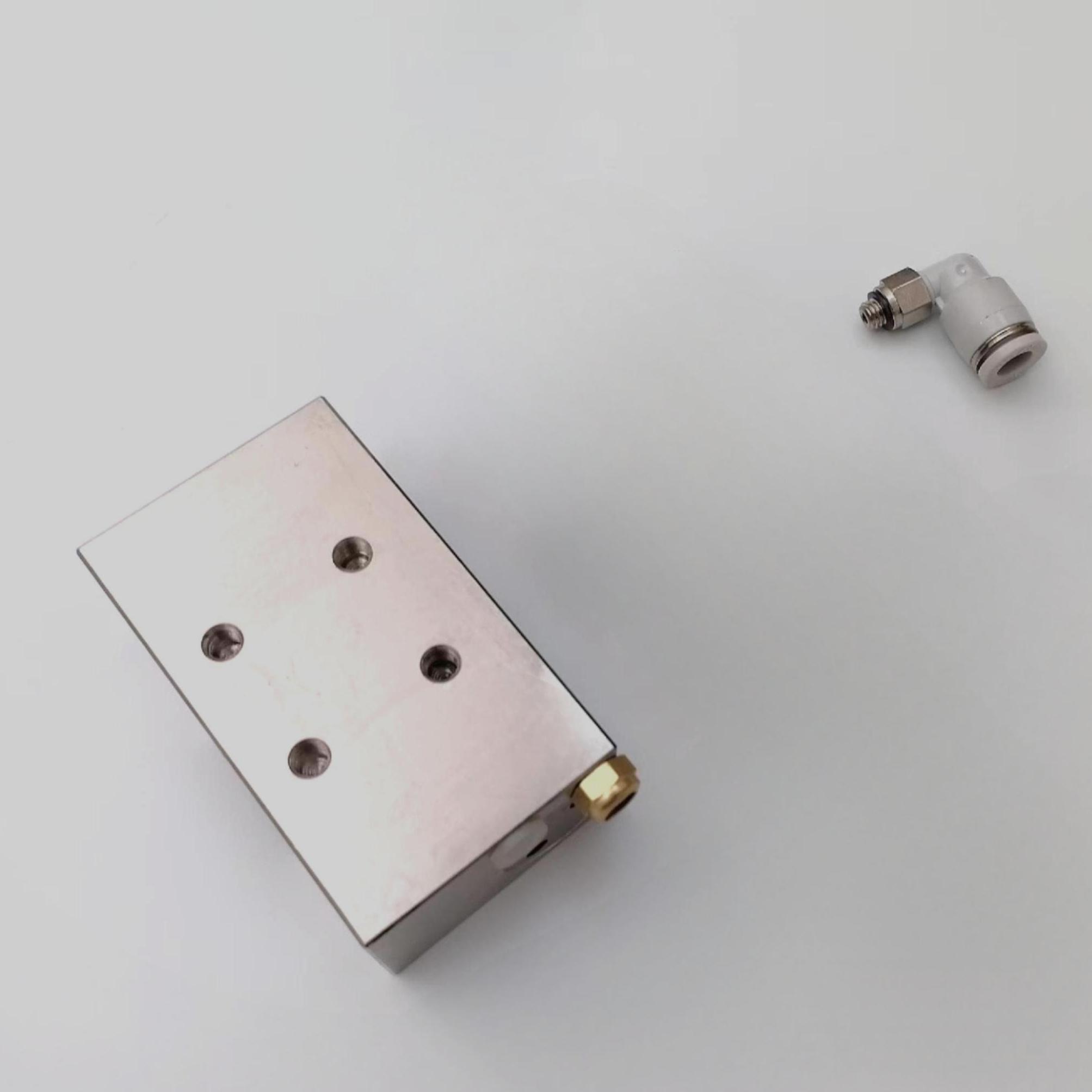

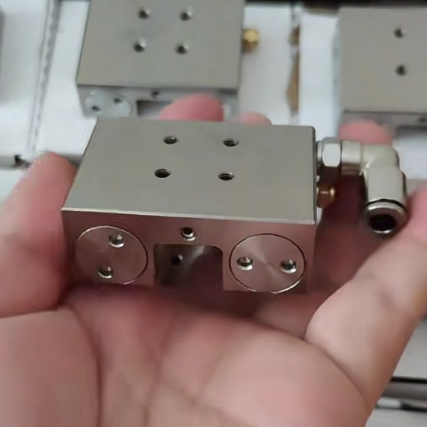

20mm Linear Rail Pneumatic Normally Open NO Clamp Locking
This pneumatic normally open clamping locking works with 20mm linear guides.It stays released without air pressure and clamps/brakes when air is applied.The clamping element is in stock for fast delivery at a competitive price.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 1000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Linear Rail Clamp Locking Advantages:
Fast delivery within 3 days.
Help you save 35% of the cost.
High Durability,up to 5 million static clamping cycles.
Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamping element.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Pneumatic Normally Open Clamp Brake Product Video
