Lead time:Large stock inventory.

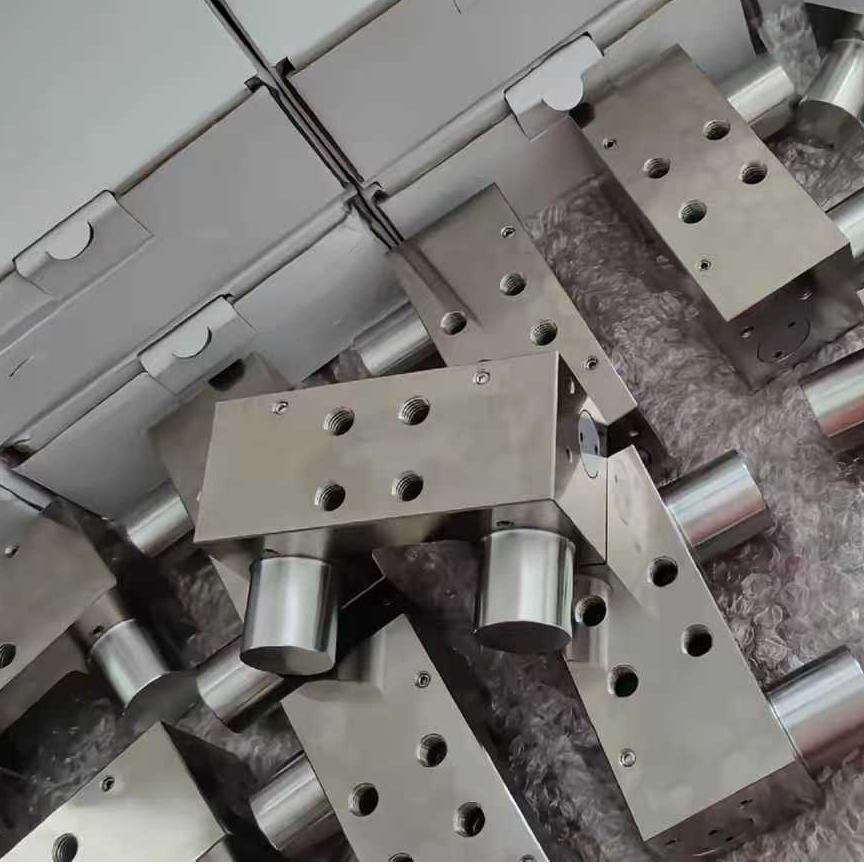

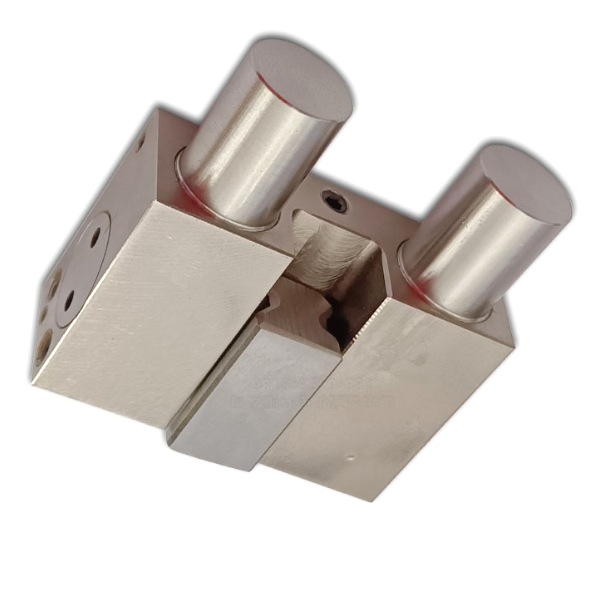

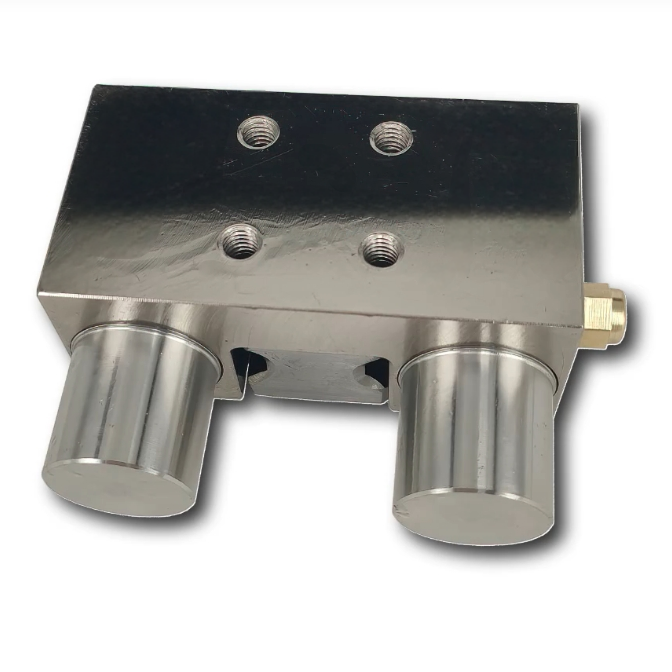

20mm Linear Rail Pneumatic Normally Close Clamping Braking Element
This clamping and braking element directly replaces the MKS series pneumatic normally closed linear rail clamp.It's compatible with most standard 20mm size linear guides.Ships same-day from massive stock.Competitive pricing for industrial-grade reliability.Request a quote today!
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 20mm |
| Standard type rated holding force(N) | Standard connection 600N,pressurized connection 1300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Linear Rail Clamping and Braking Element Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close(NC) Clamp Braking Video
