LMK20B
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||

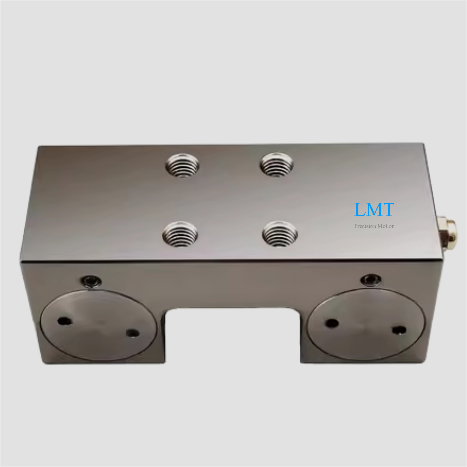

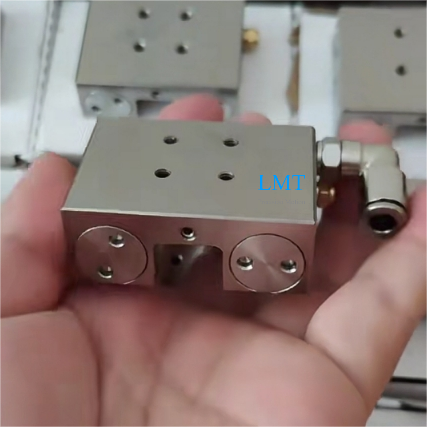

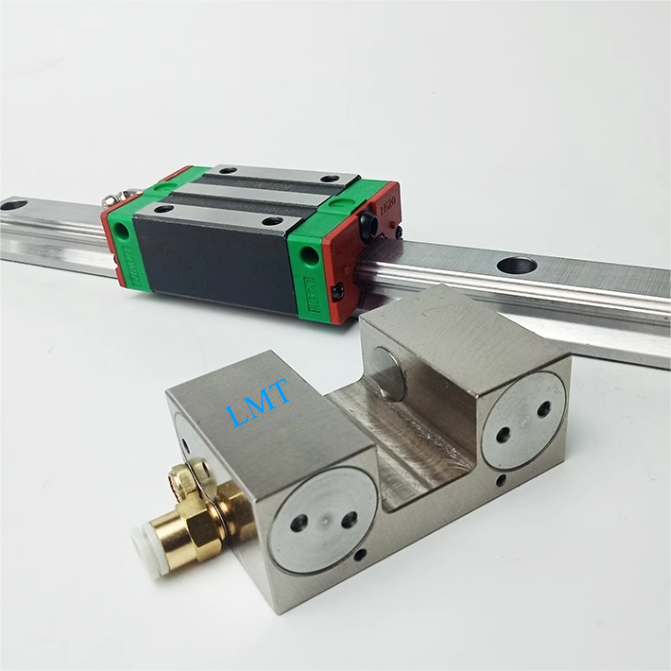

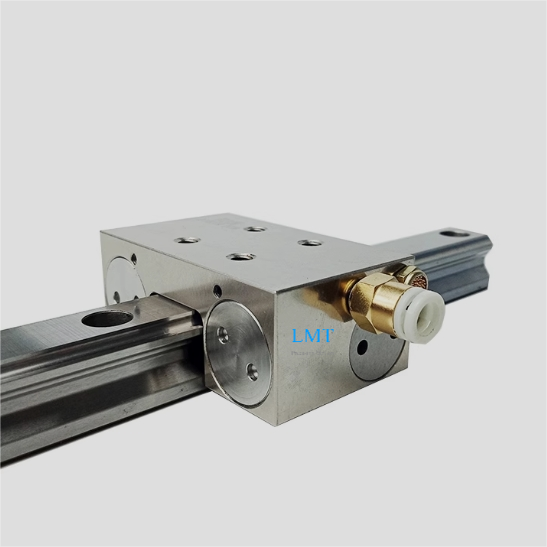

A high-performance pneumatically actuated clamp designed exclusively for 20mm linear guide rails.The clamp provides precise position locking,prevents vibration,and improves the rigidity of the linear guide.
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 1000N |
| Open air pressure | 0.55~0.65Mpa |
| Clamping service life | 5 million times |
| Main boday material | 42CrMo, sandblasted electroless nickel coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
-Main body:42CrMo,electroless sandblasting nickel plating
-Air filter: Brass
-Contact surface:Equivalent to SKD11,electroless nickel plating
-Adjusting bolt:Equivalent to SKD11,electroless nickel plating
-Suitable for ball linear guide rails
-Used for worktable fixing,positioning and anti-vibration
-Normally open type：
Air supply ON: Clamp closed and locked
Air supply OFF: Clamp released and open
-Order model: LMK (Rail size)B ,Example: For size 25mm ball linear guide rail,the order model is LMK25B
Fast delivery within 3 days.
Help you save 50%~70% of the cost.
High Durability,up to 5 million static clamping cycles.
Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamp.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
