Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
This manual Clamp Brake delivers instant slide table immobilization,precision positioning,and vibration suppression for 35mm linear guides.Engineered for vertical axis safety,machinery end stops,and anti-creep applications,its mechanical locking mechanism provides fail-safe stationary locking without external power.Robust construction ensures zero backlash during CNC/automation processes.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 35mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
35mm Linear Guide Manual Clamp Key Advantages:
The manual braking is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.

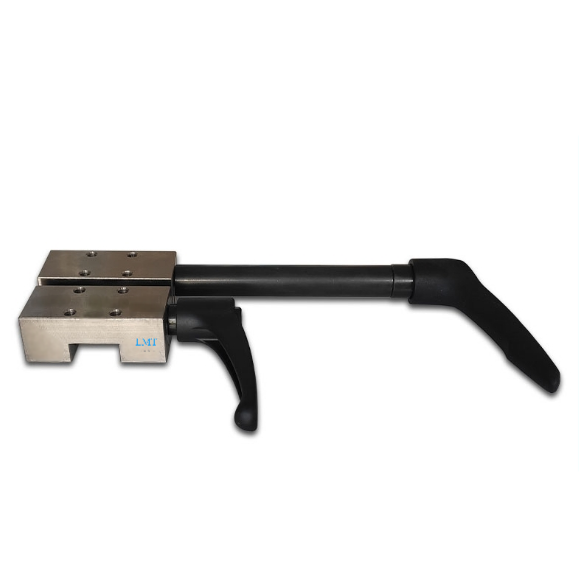

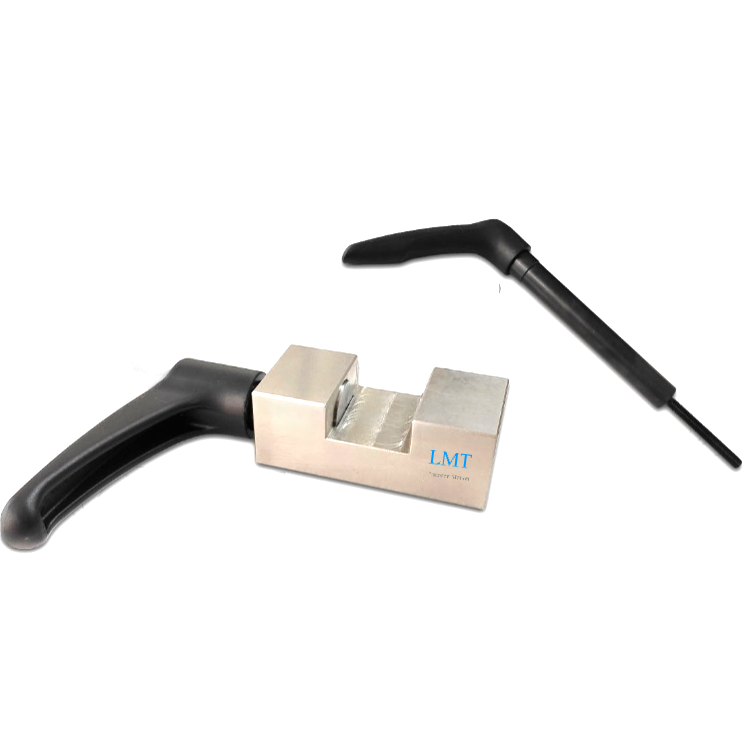

Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual clamp mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.

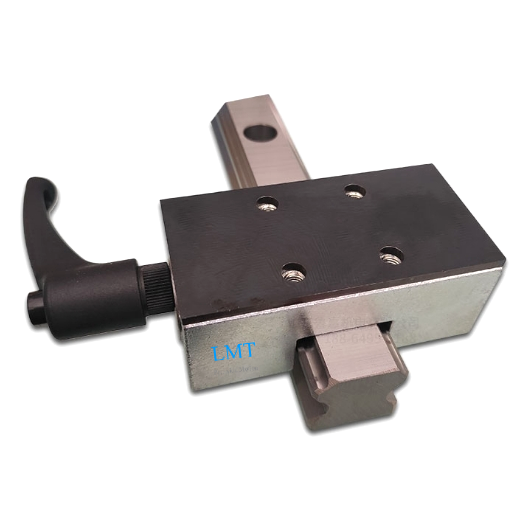

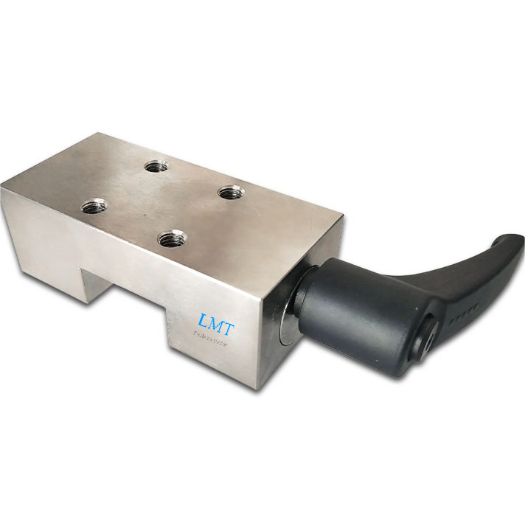

Linear Rail Manual Brake Pictures
