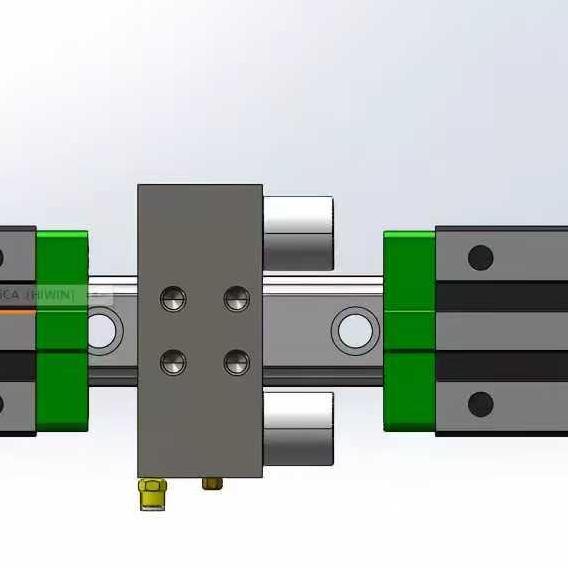

Replace MKS Series Clamping Braking Element for 35mm Linear Rail
This clamping and braking element can replace the popular MKS series pneumatic normally closed guide clamp in the market for most 35mm linear guides.Our clamping elements have a great advantage in price and lead time.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | Standard connection 1250N,pressurized connection 3250N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
35mm Linear Rail Clamp Braking Key Advantages:
Lead time:Within 3 days.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 35mm rail profiles.

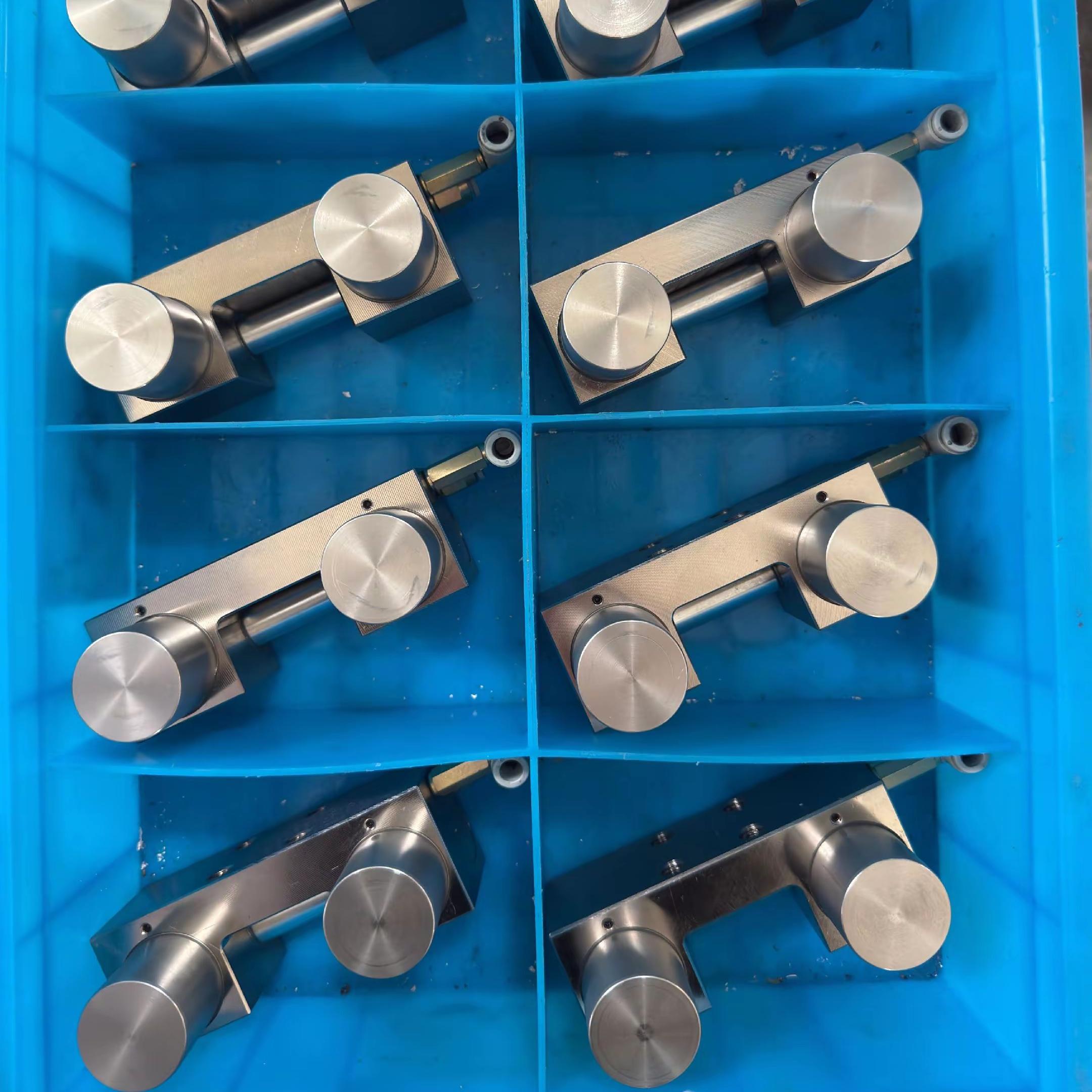

Pneumatic Normally Close Clamp Brake Video
