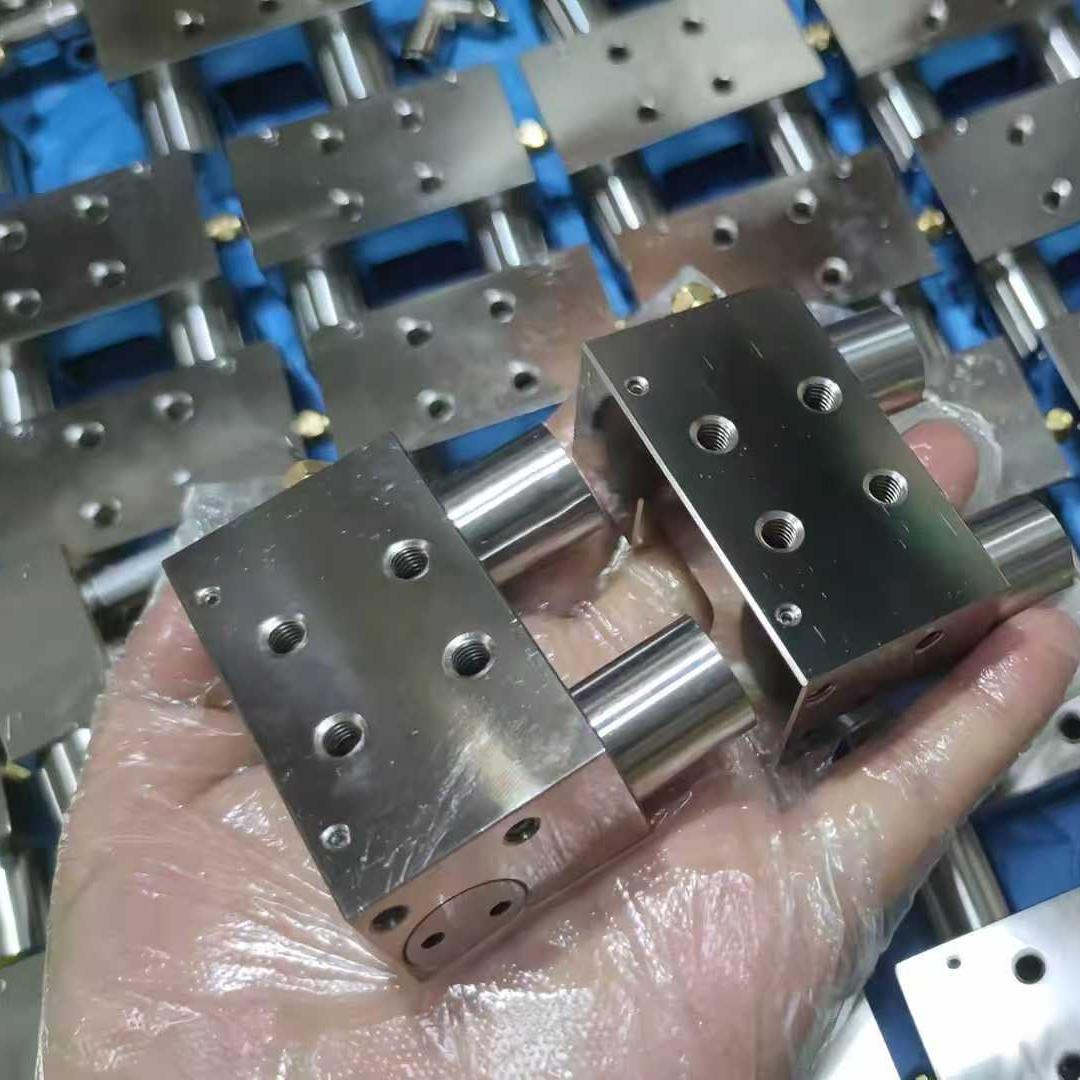

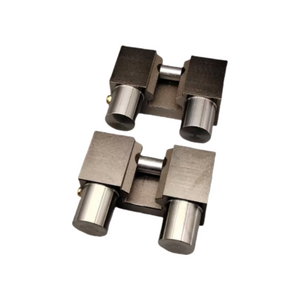

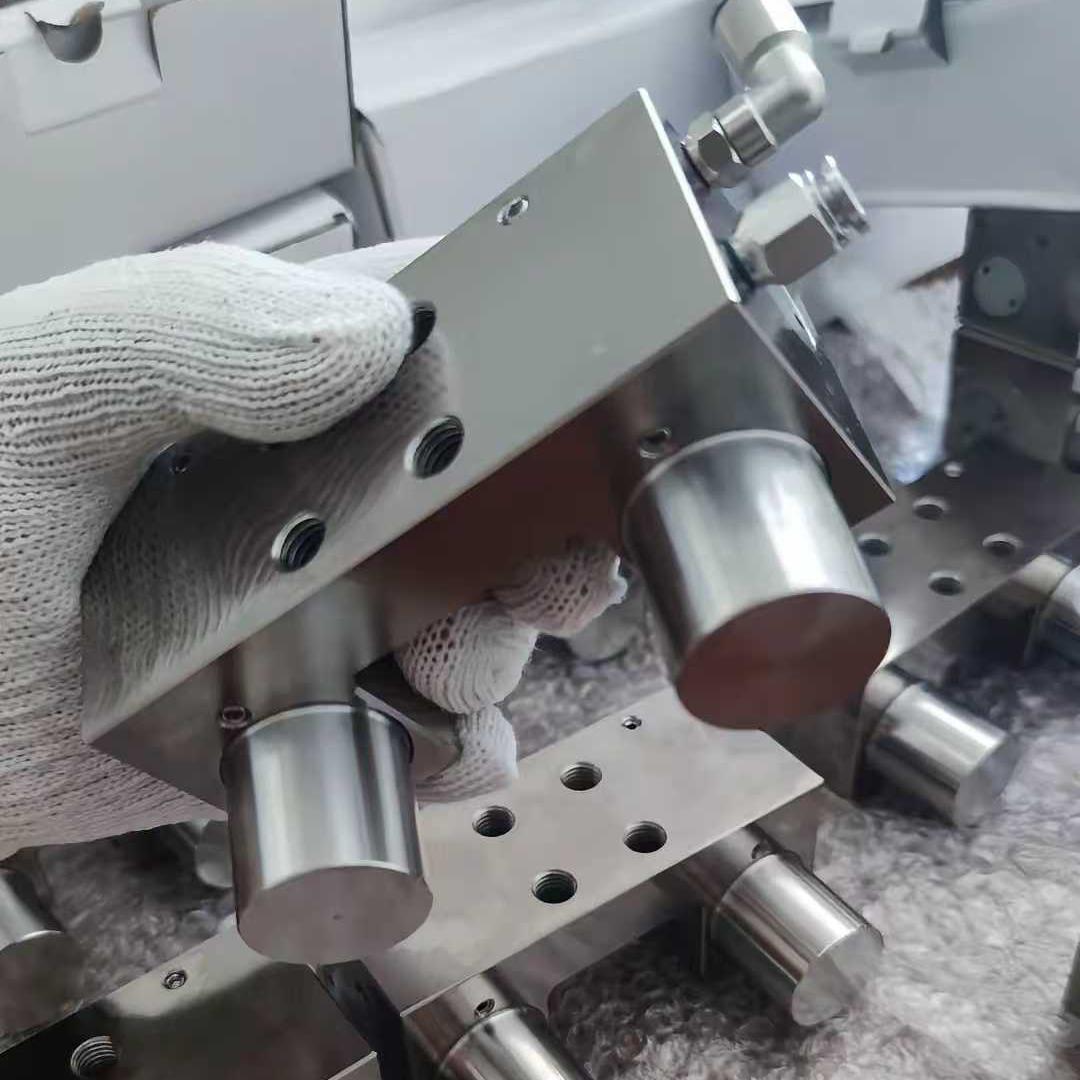

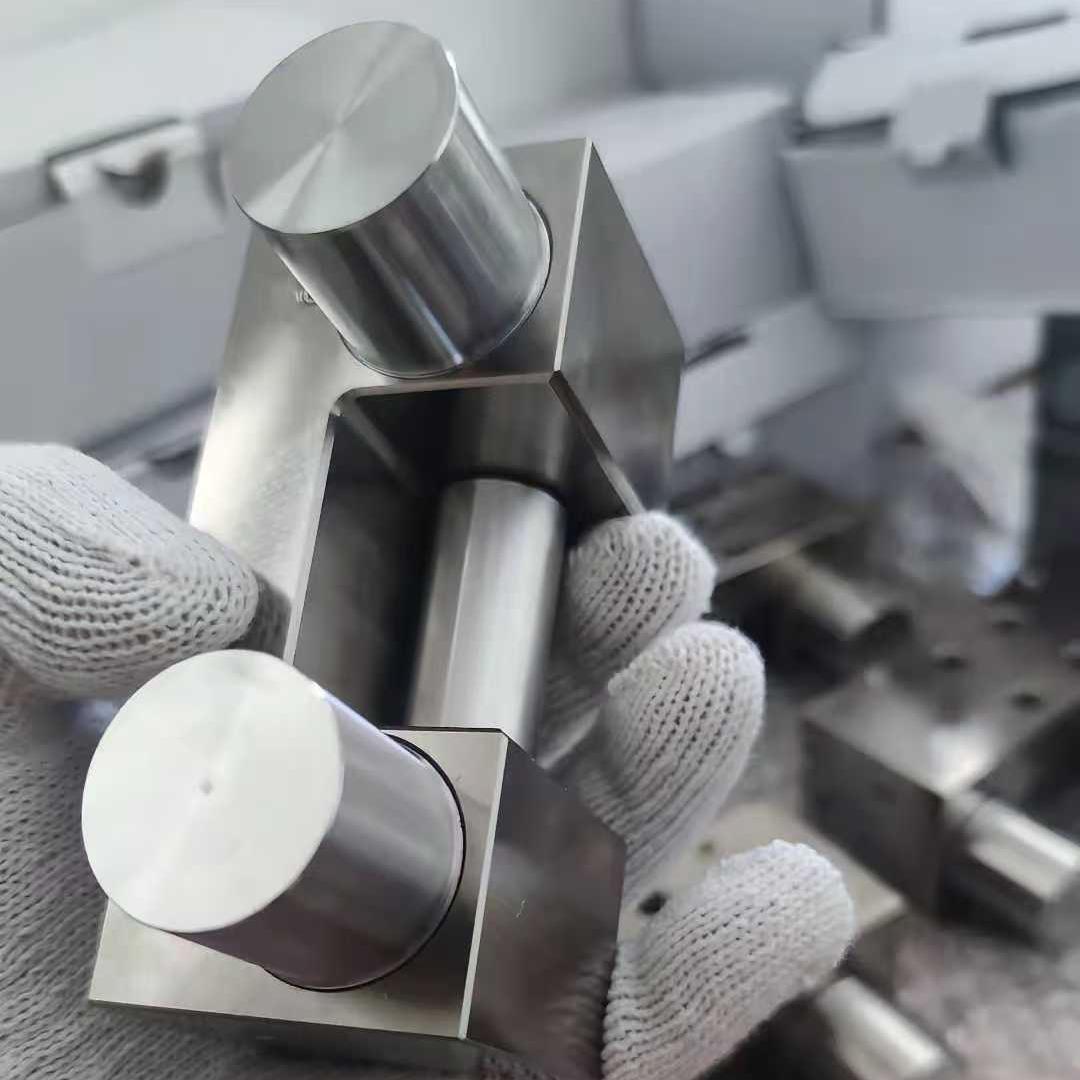

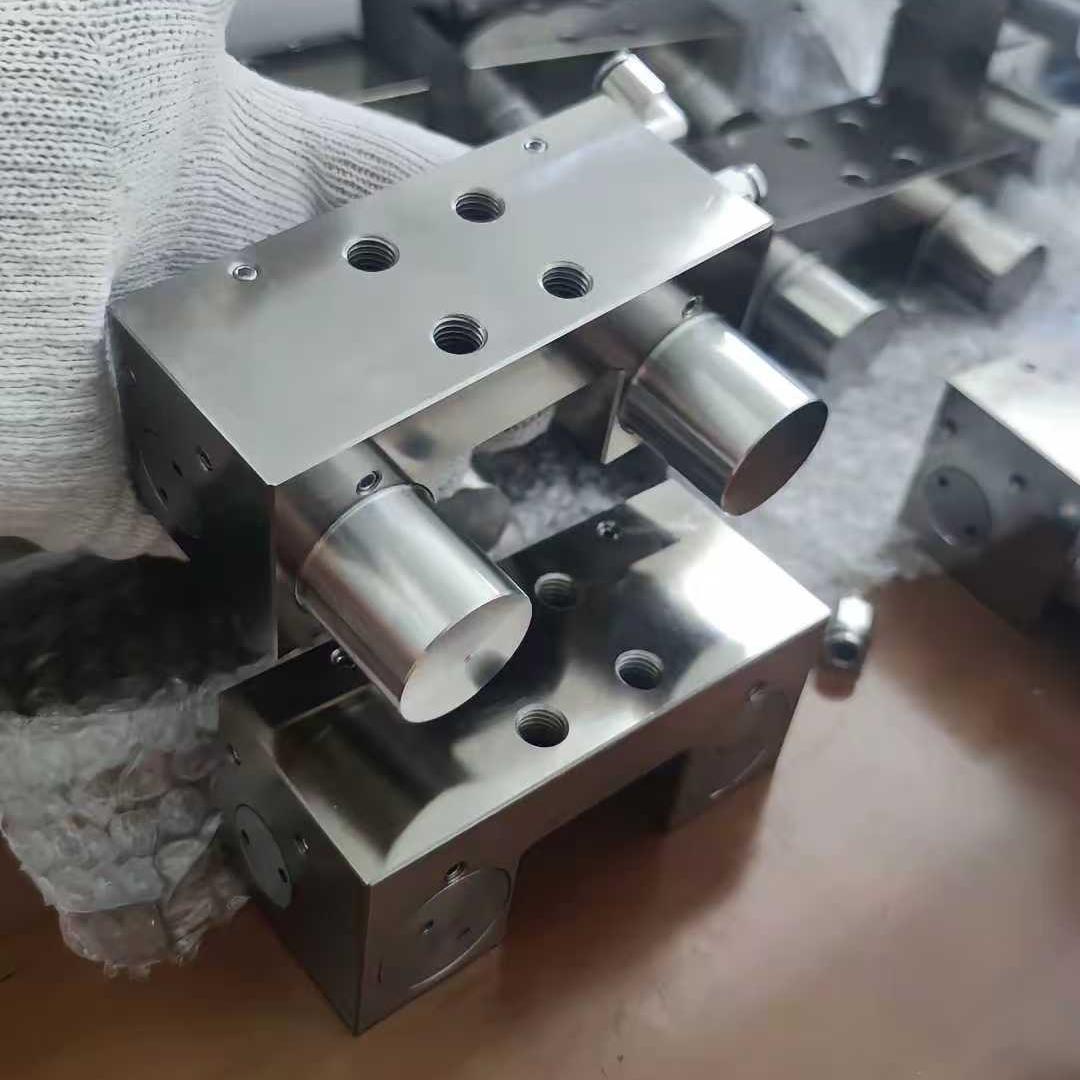

Pneumatic Normally Closed Clamp Braking for 35mm Linear Guide
Operating on a normally closed (NC) principle,this linear guide clamp braking system engages automatically without air supply and releases upon pneumatic actuation.It delivers positive braking force specifically for 35mm linear guides.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 1250/3250N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Our Linear Guide Clamp Brake Key Advantages:
Lead time:Within 3 days.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 35mm rail profiles.

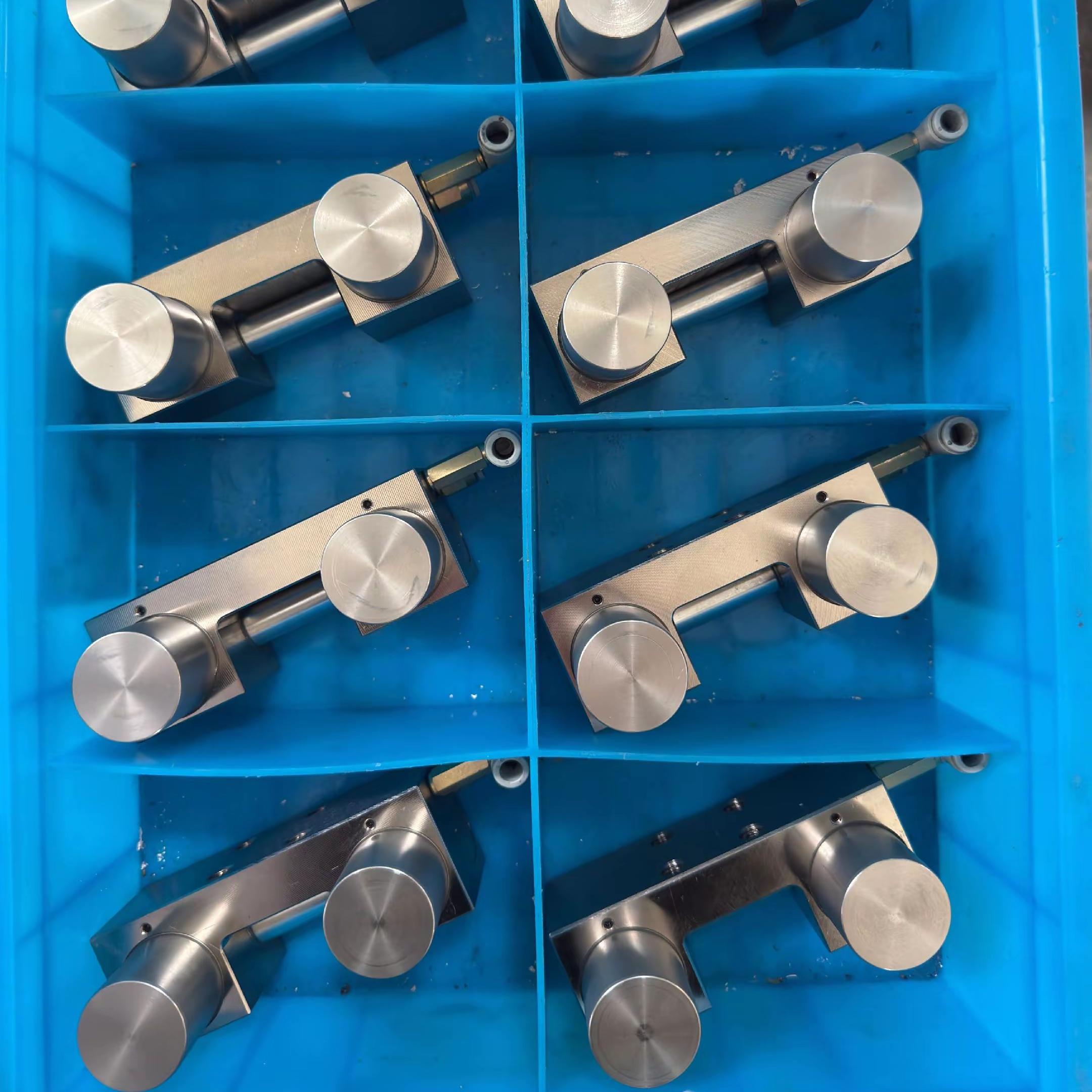

Pneumatic Normally Close Clamp Brake Video
