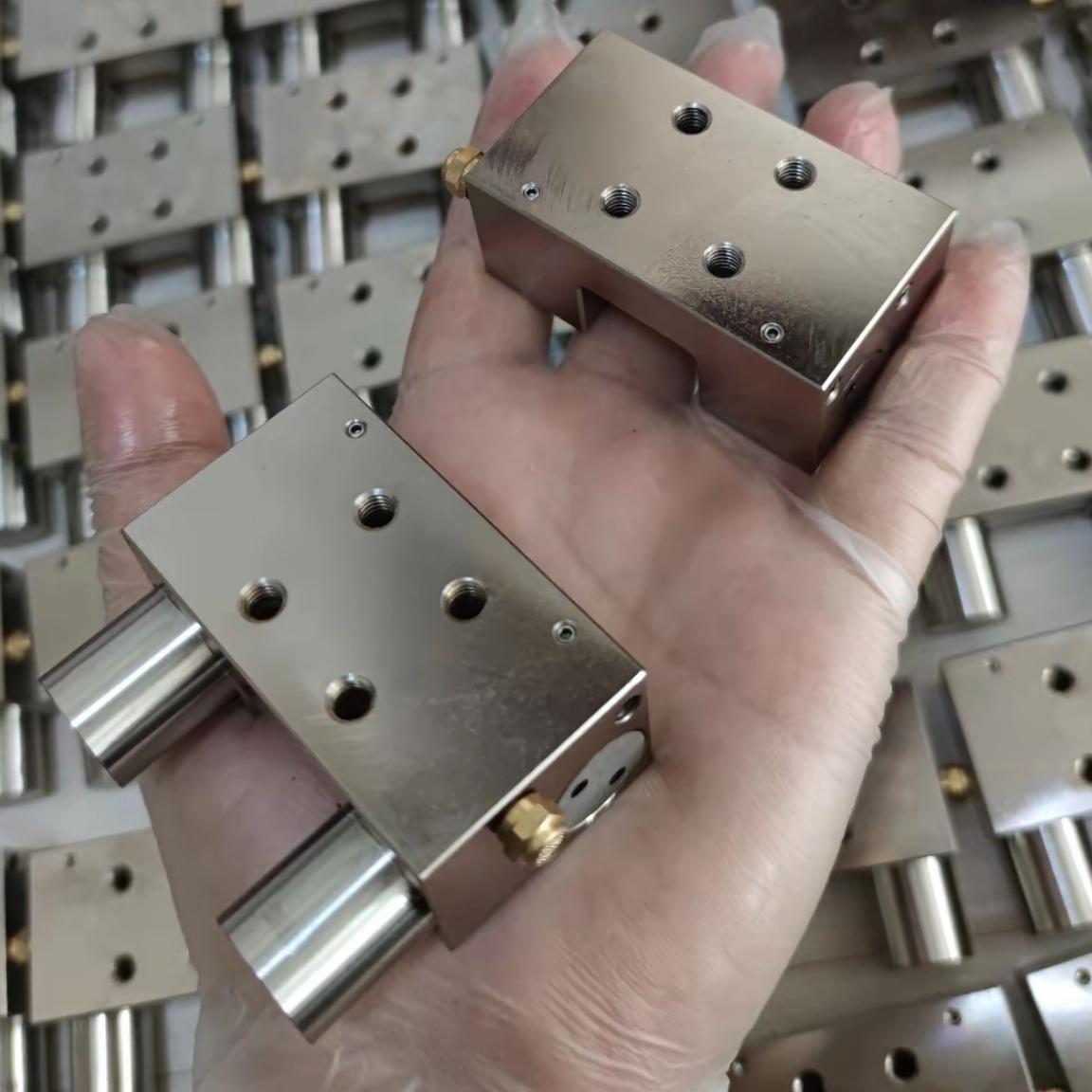

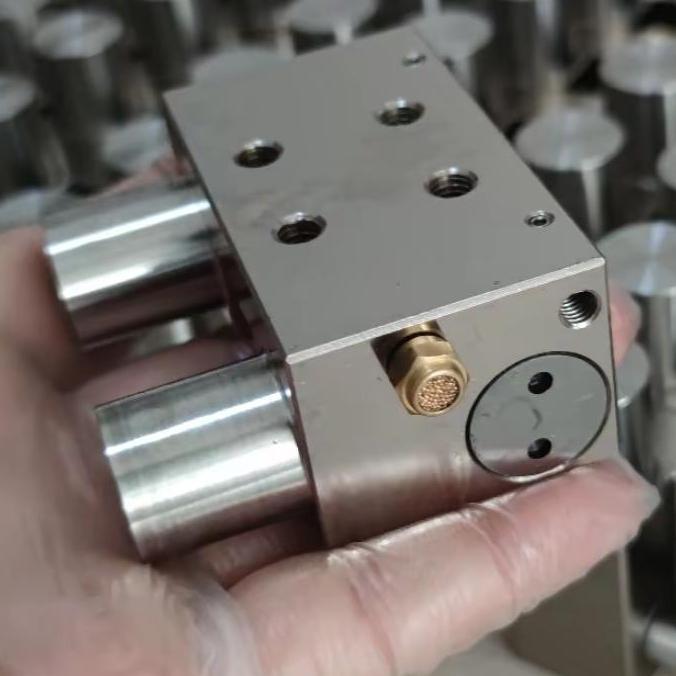

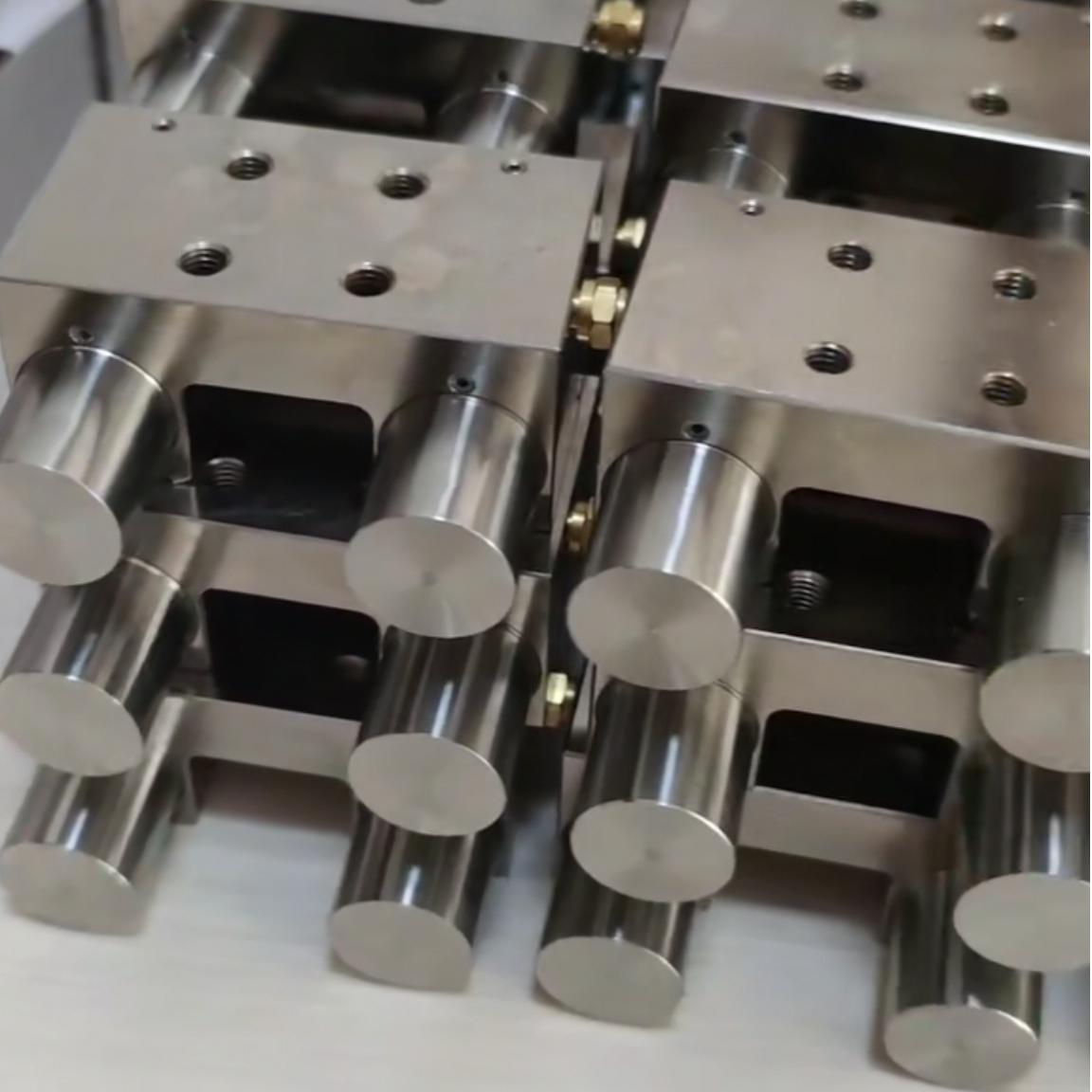

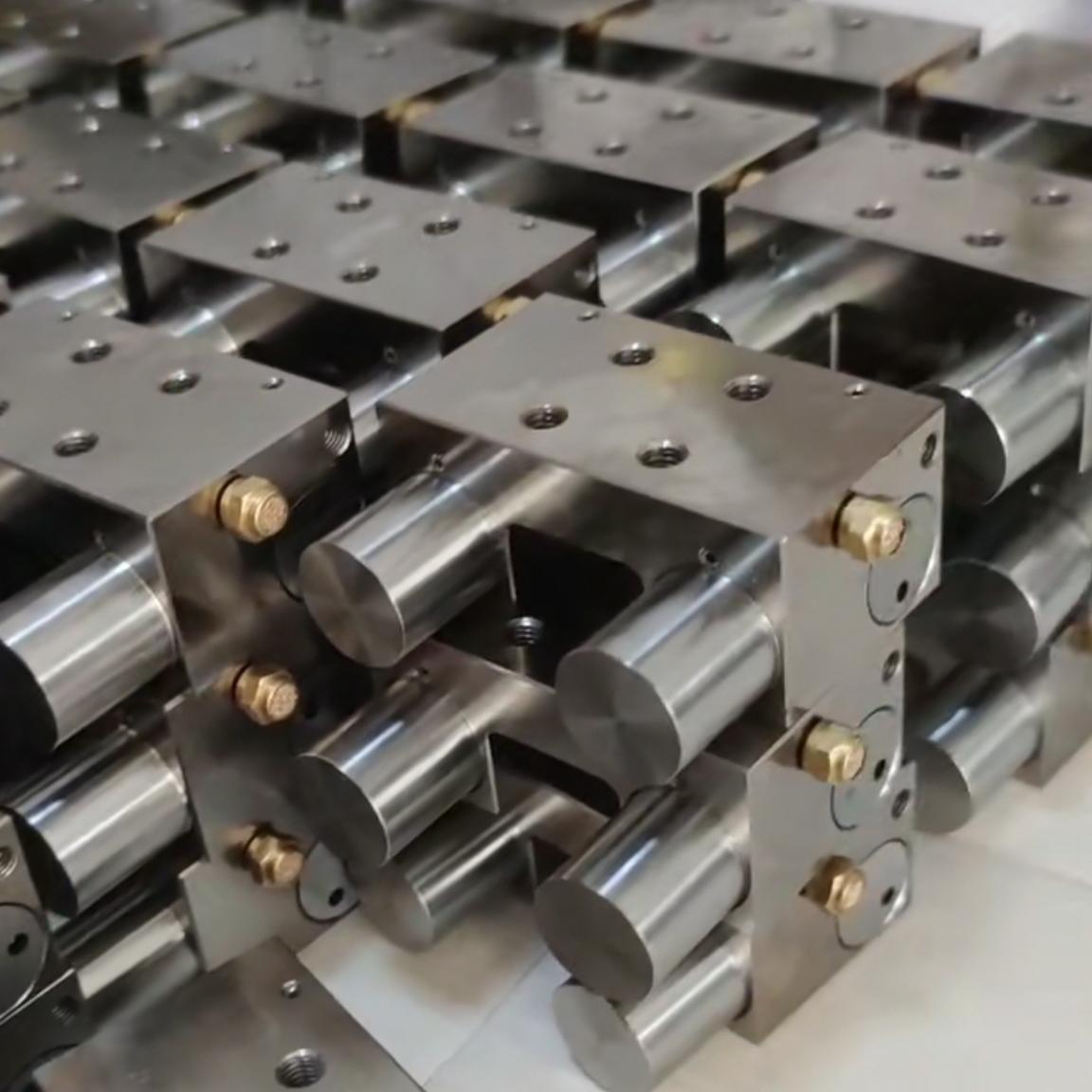

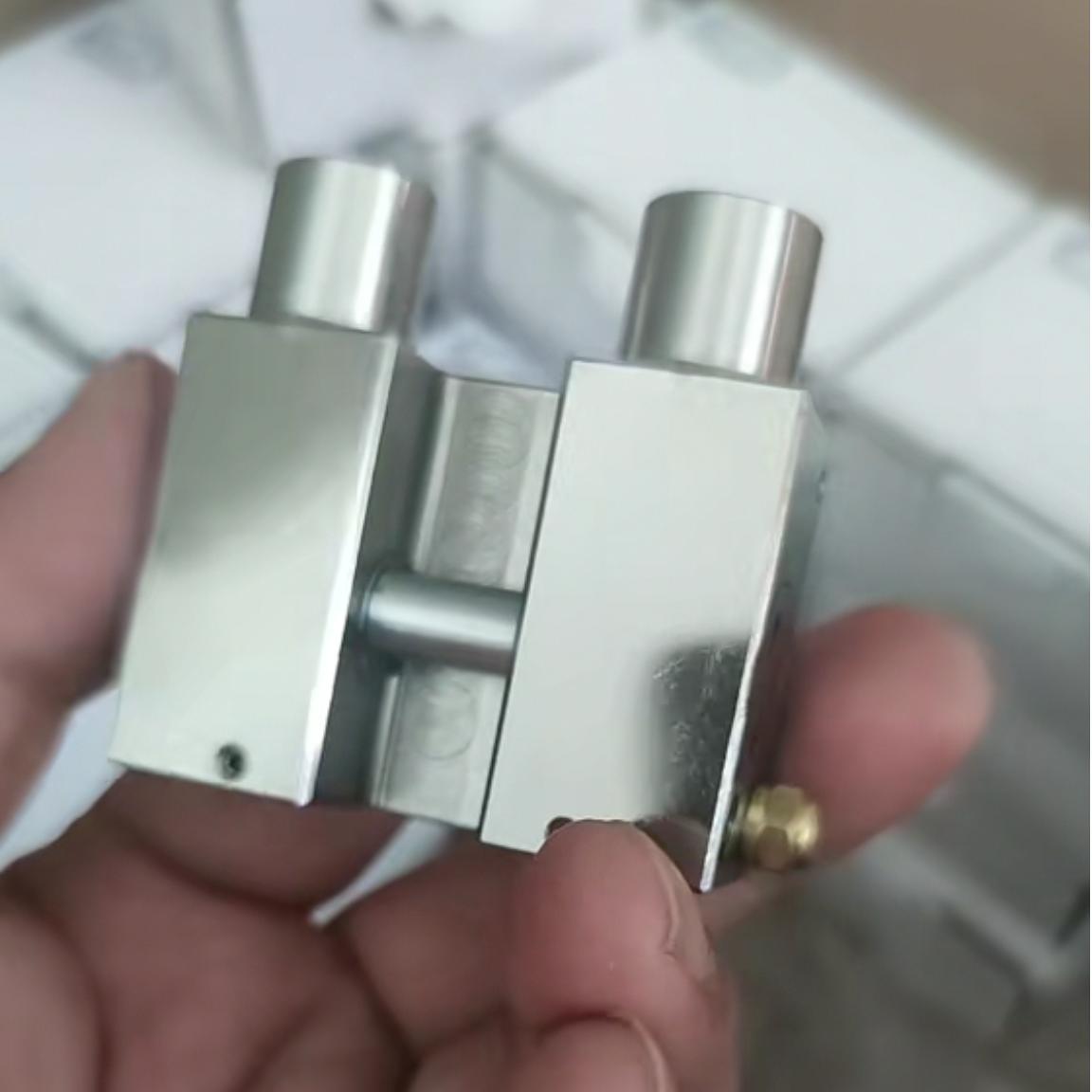

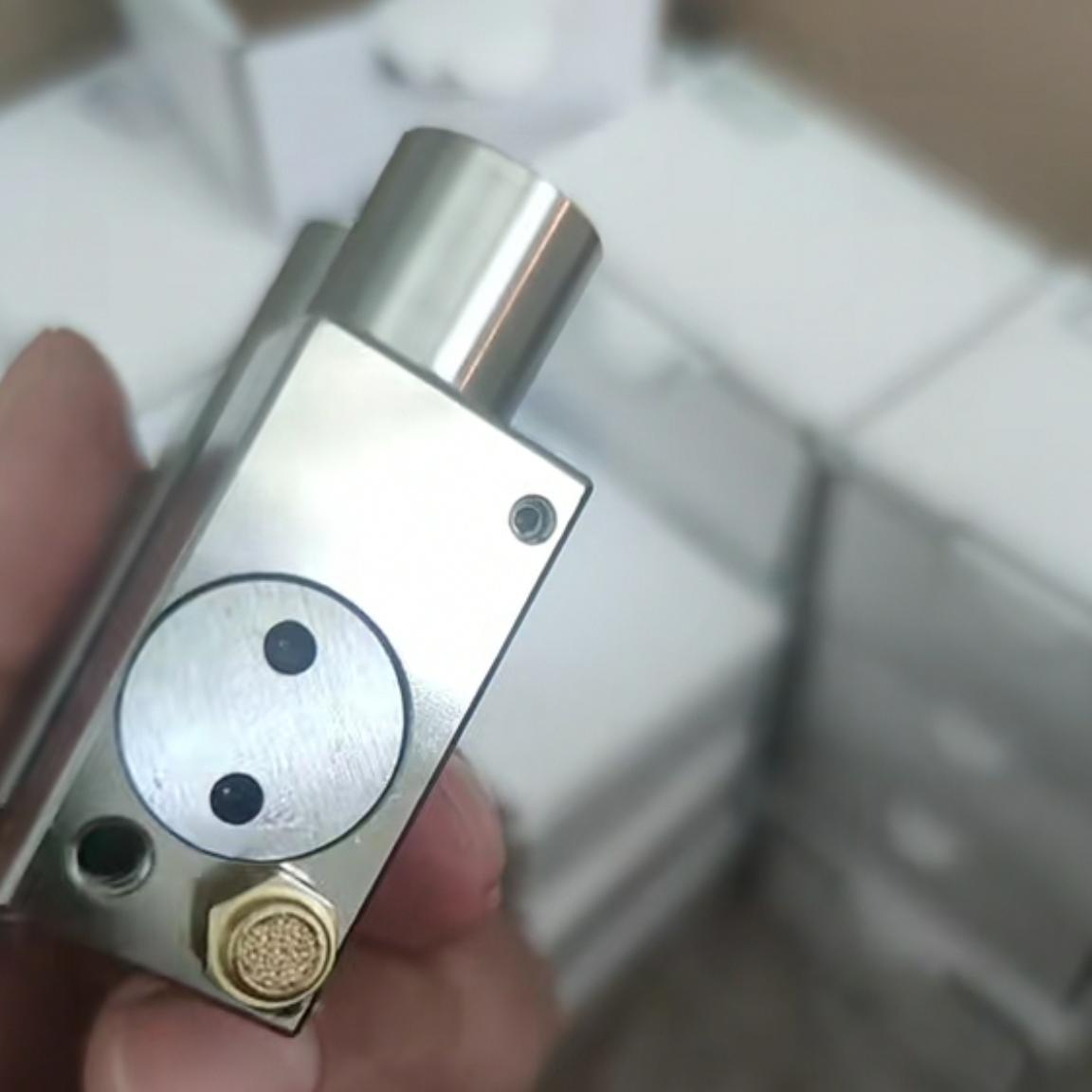

Air Operated Pneumatic NC Clamp Brake for 35mm Linear Guide
Reinforces 35mm linear guide to withstand heavy loads and dynamic forces.This air operated clamp brake is ideal for CNC machinery,robotic arms,material handling,and precision assembly lines requiring vibration-free positioning and emergency braking.Elevate your automation reliability with our high-value clamping solution!
Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 35mm |
| Standard type rated holding force(N) | Standard connection 1250N,pressurized connection 3250N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
35mm Linear Guide Clamp Brake Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Air Operated Pneumatic NC Clamp Brake Video
