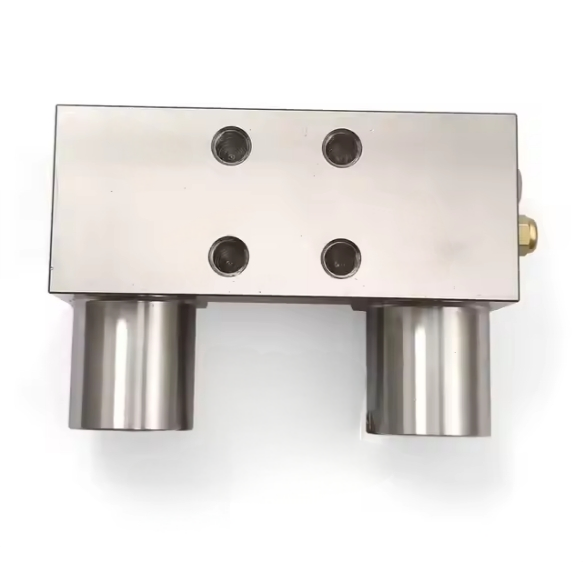

35mm Size Linear Rail Pneumatic Normally Close Locking Clamp
Find the perfect,cost-competitive alternative to MKS-series pneumatic normally close locking clamps for your 35mm linear guides.Our robust,corrosion-resistant locking clamps ensure reliable holding force and effortless upgrades.Massive in-stock inventory guarantees rapid dispatch.Get your quote now for a fast,reliable MKS replacement solution!
Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 35mm |
| Standard type rated holding force(N) | Standard connection 1250N,pressurized connection 3250N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |

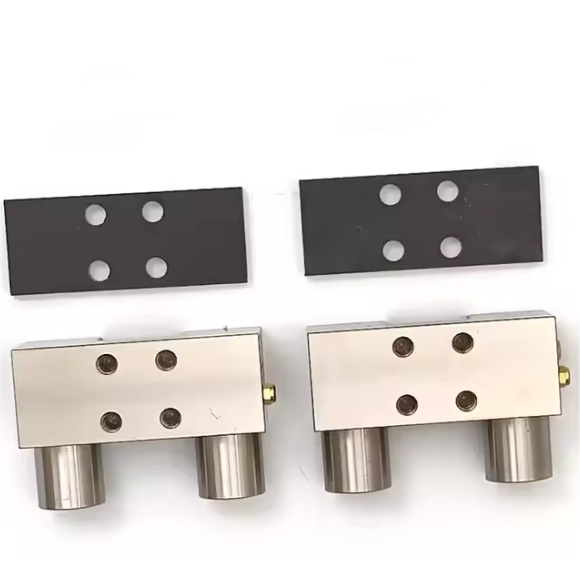

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
35mm Linear Guide Locking Clamp Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close Clamp Braking Video
