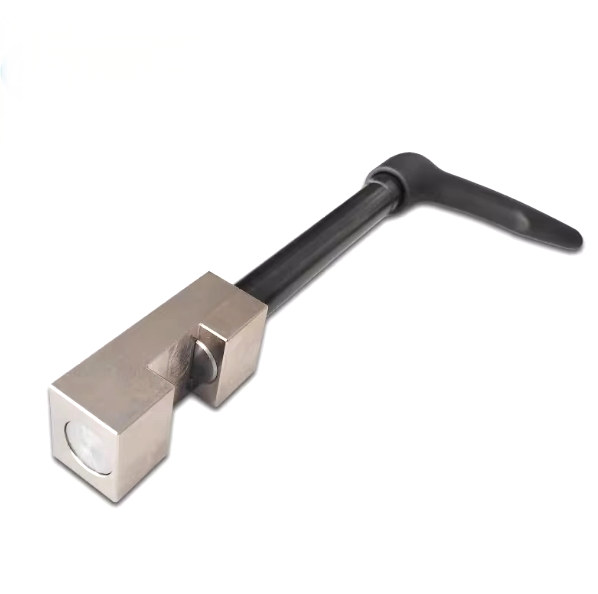

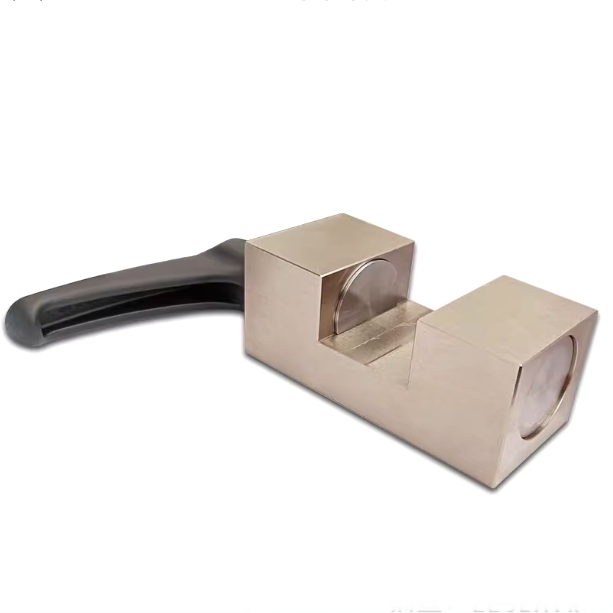

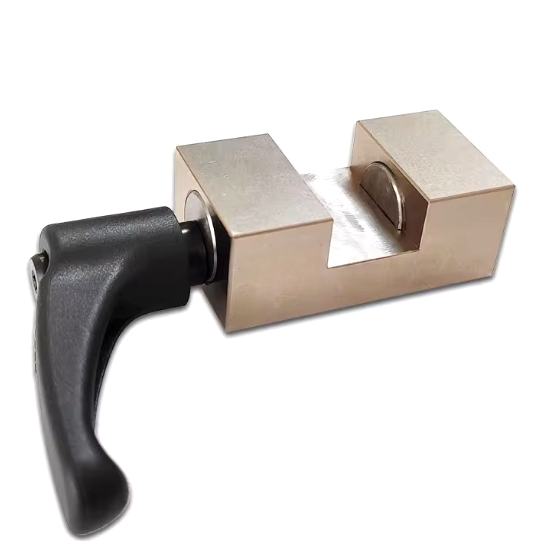

HGH35CA HGW35CA Linear Guide Manual Brake Clamp
Compatible with Hiwin's HGH35CA and HGW35CA linear guides,this manual brake clamp delivers instant,tool-free locking to stabilize linear motion components.Its rotary handle ensures quick adjustments with consistent force,while the space-saving design integrates seamlessly into automation setups,CNC machinery,and precision equipment.Ideal for applications demanding rapid positioning,rigidity,and reliability in tight spaces.
| Clamp Types | Manual |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |

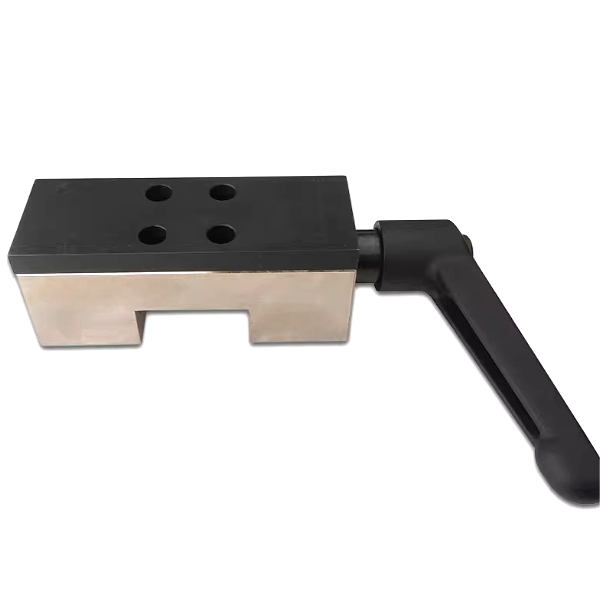

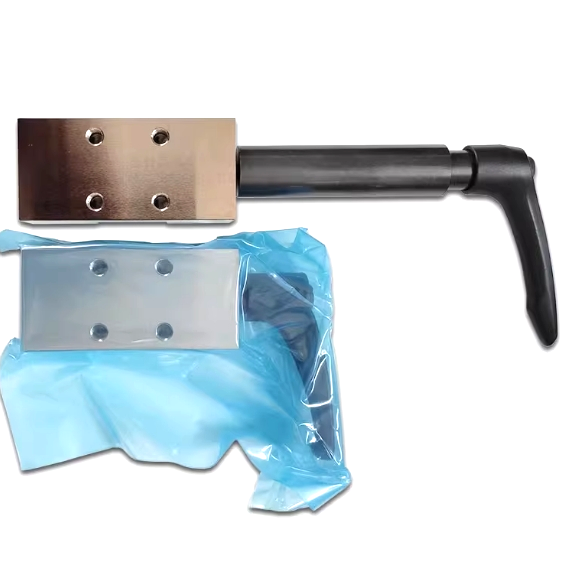

Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Advantages of Our Manual Clamp Brake：
35% cost savings.
Lead time within 5days.

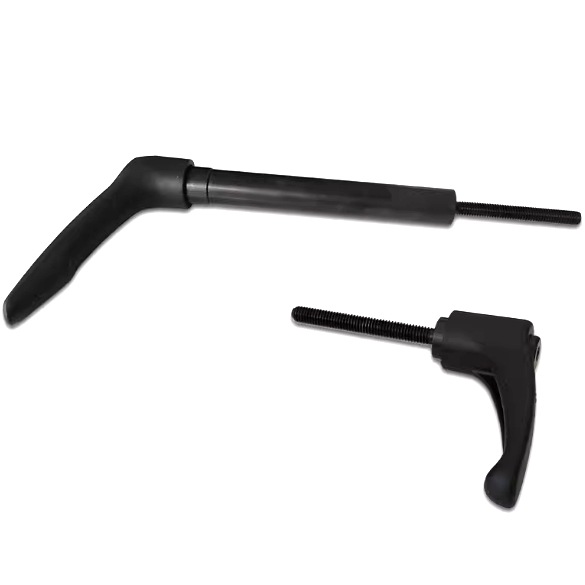

Standard or extended handles are available.
Fully compatible alternative to Zimmer HK-series linear clamps.
Customize linear guide clamp dimensions to match your specific setup.
Featuring a high-grade electroless nickel-plated finish,the clamp resists rust,ensuring extended service life in demanding conditions.
Download manual linear guide clamp size table.png
