LMK2511B or LMK25B
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||

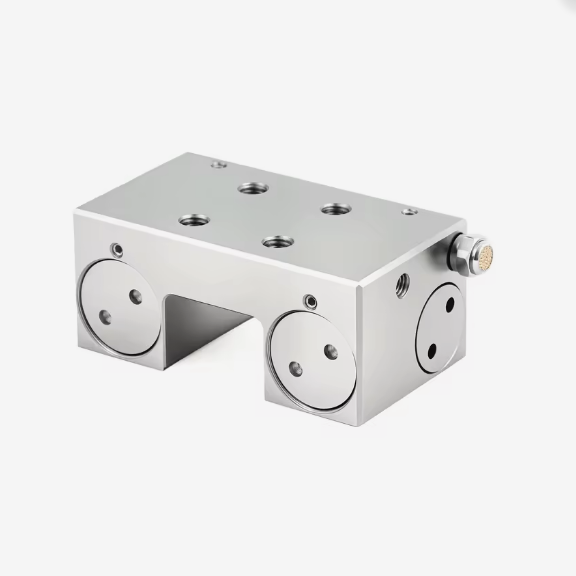

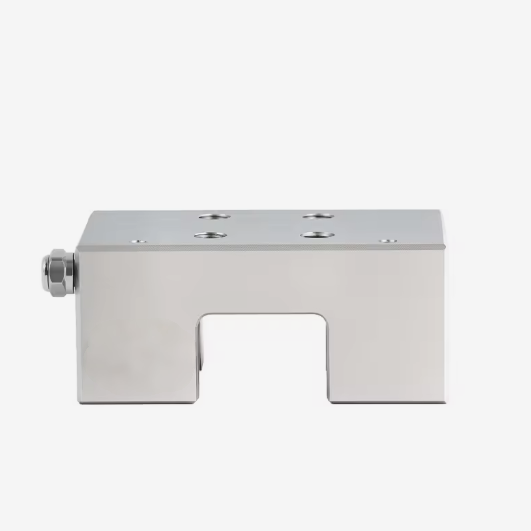

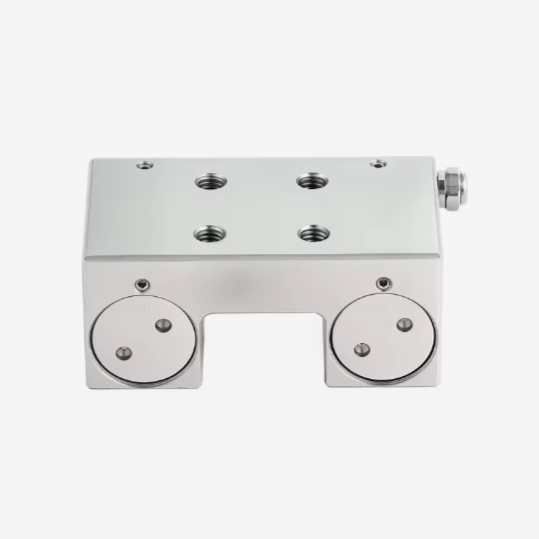

Alternative To MK Series Pneumatic Clamping Element for HGH25 HGW25 Linear Guide
This pneumatic clamping element is a high-performance alternative to the MK series,designed for HGH25 / HGW25 linear guide.It features stable pneumatic actuation,reliable static holding,quick response,and strong compatibility for linear motion locking applications.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
LMT Pneumatic NO Clamping Element Advantages:
-Fast delivery within 3 days.
-Help you save 25%~45% of the cost.
-High Durability,up to 5 million static clamping cycles.
-Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamp.
-This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,IKO,PMI,WON,NSK,NB,and ABBA.
-Pneumatic normally open clamps that are in a loosened state when air is not supplied.
-Through the wedge block expanding force principle,using air pressure to realize clamping.
-Compact structure with strong holding force.Novel design to avoid rigid impact when clamping.
-Easy to install,directly connected with the worktable,no need to change the size of the worktable.
