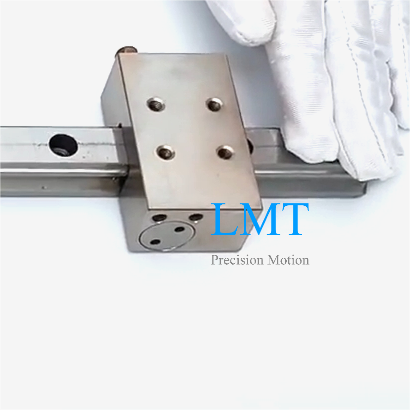

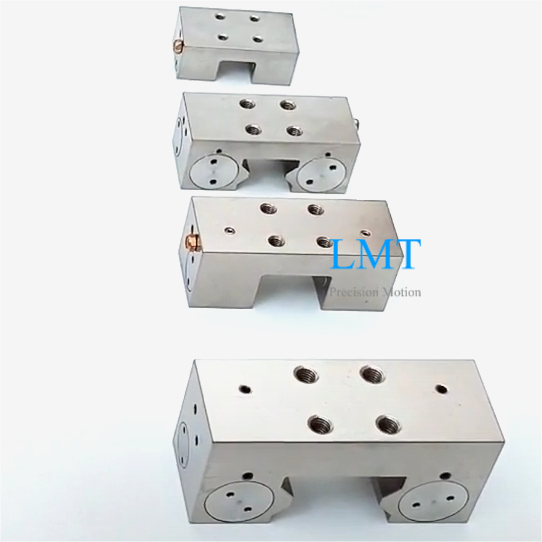

Pneumatic Normally Open Clamp Fixture for HGH35 HGW35 Linear Guide
Achieve unwavering stability and precision in demanding applications with this purpose-built pneumatic normally open clamp fixture for HIWIN 35mm HGH35 and HGW35 linear guides.Engineered as a critical rigidity enhancer,this robust device actively combats vibration and deflection during high-force machining,heavy payload handling,or rapid directional changes.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 35mm |
| Rated holding force(N) | 2000N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HGH35 HGW35 Linear Rail Pneumatic NO Clamp Advantages:
Fast delivery within 2 days.
Help you save 25%~45% of the cost.
Direct replacement for Zimmer and NBK brand MK series pneumatic normally open clamp fixture.
High durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Pneumatic Normally Open Rail Clamp Video
