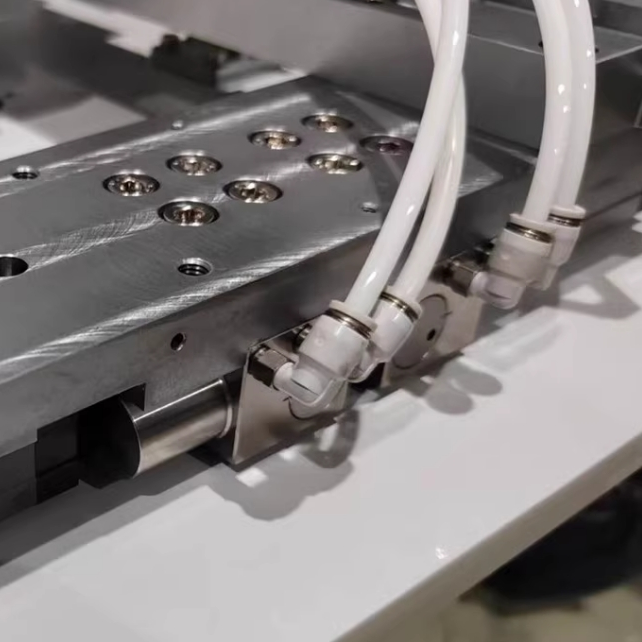

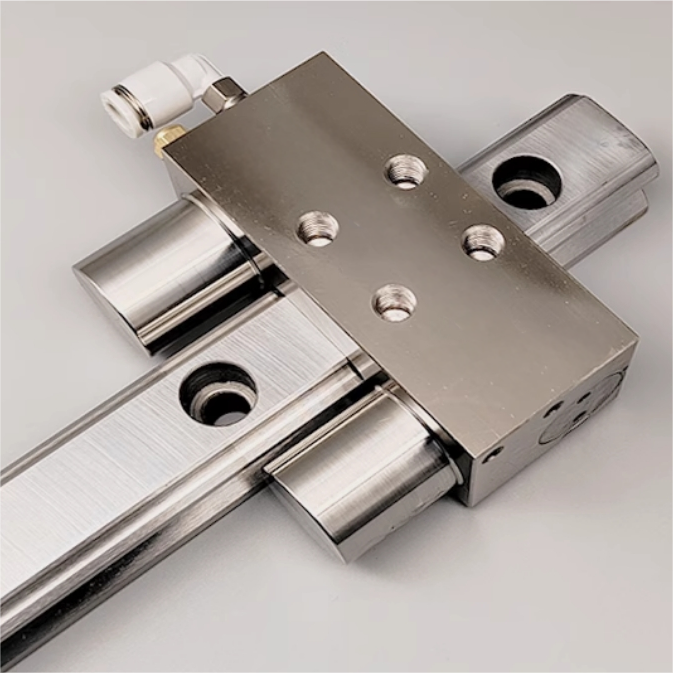

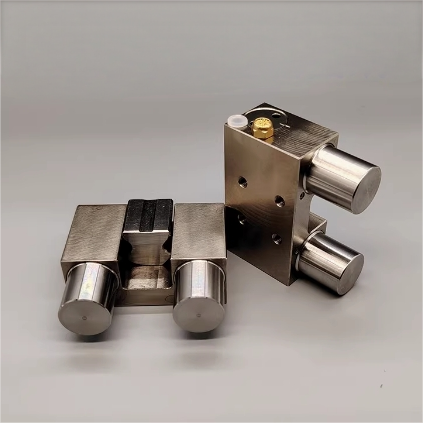

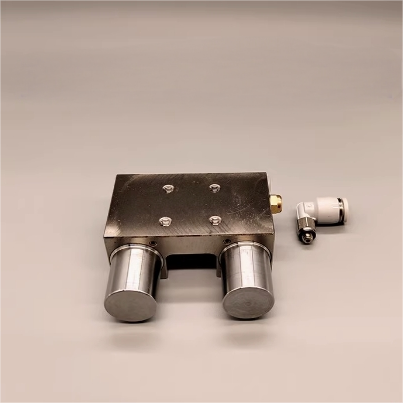

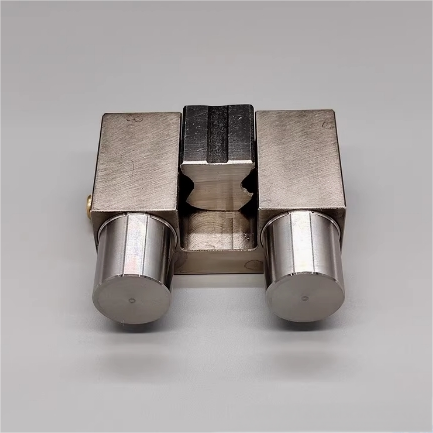

This pneumatic normally closed linear guide clamp brake is in the clamping state when not supplied with air and is suitable for 20mm ball linear guides.Combining robust clamping force with rapid pneumatic actuation,this linear rail clamp brake is ideal for industrial automation,CNC machinery,and applications requiring reliable positioning under dynamic loads.
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 20mm |
| Rated holding force(N) | 600/1300N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Pneumatic Linear Guide Clamp Brake?
Fast Delivery: Enjoy industry-leading lead times of 3–7 days to keep your projects on schedule.
Custom Solutions:Modify clamping force,air intake orientation,or dimensions to match unique rail setups or operational needs.
Competitive Pricing:Optimized production workflows and bulk material sourcing ensure affordability without compromising quality.
Durability:High-grade hardened steel components and anti-corrosion treatments extend service life in demanding environments.
Trusted Performance:Rigorously tested for precision,consistency,and load capacity to meet industrial safety standards.
Elevate your linear motion systems with a clamp-and-brake solution that delivers safety,adaptability,and rapid deployment,contact us to get a quote!
Download Pneumatic Normally Closed Rail Clamp Size Chart.png
