LMSK2501

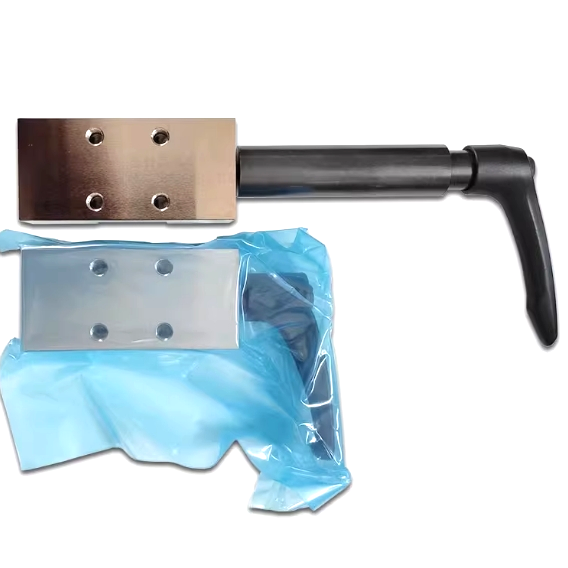

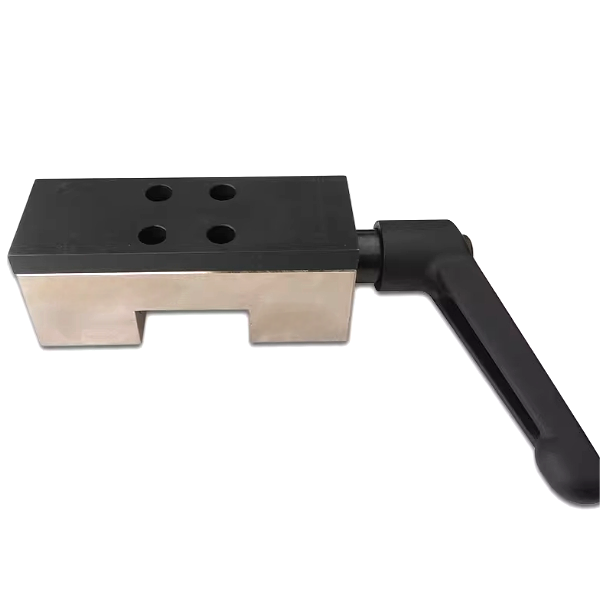

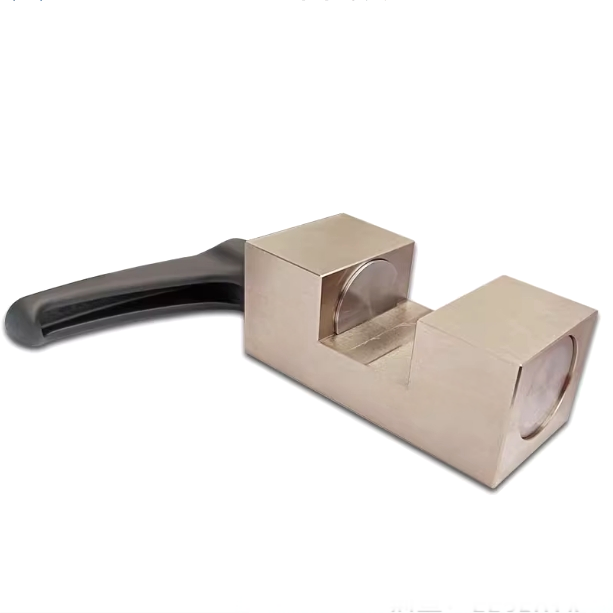

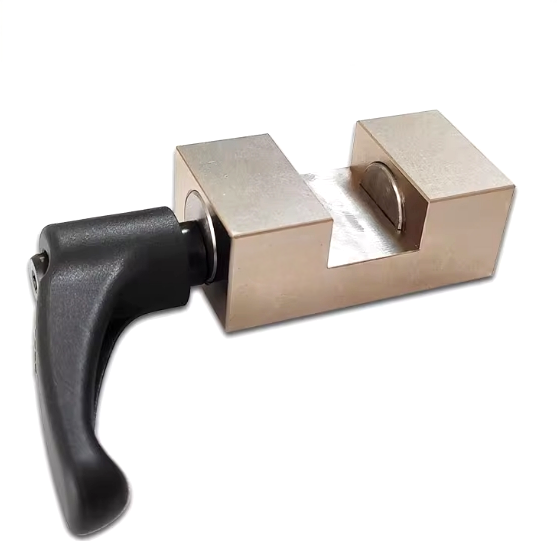

HGH25CA HGW25CA Linear Slide Guide Manual Brake Clamp
This clamp enables secure locking of linear guide through a manual rotary handle.Engineered for industrial applications such as CNC equipment,automation systems,and high-load machinery,the linear guide clamp provides reliable fixation to prevent unintended sliding or vibration,maintaining stability and accuracy in demanding environments.Its direct compatibility with HGH25CA/HGW25CA linear guides makes it an essential component for enhancing operational control and safety.
| Clamp Types | Manual |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Advantages of Our Manual Clamp Brake：
35% Cost savings.
Lead time within 5days.

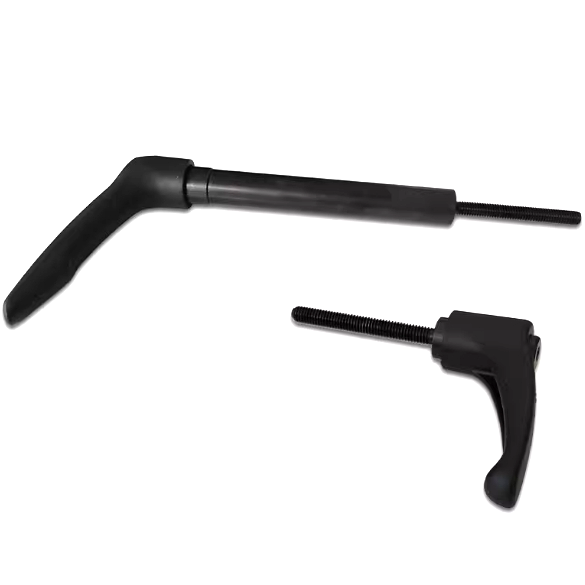

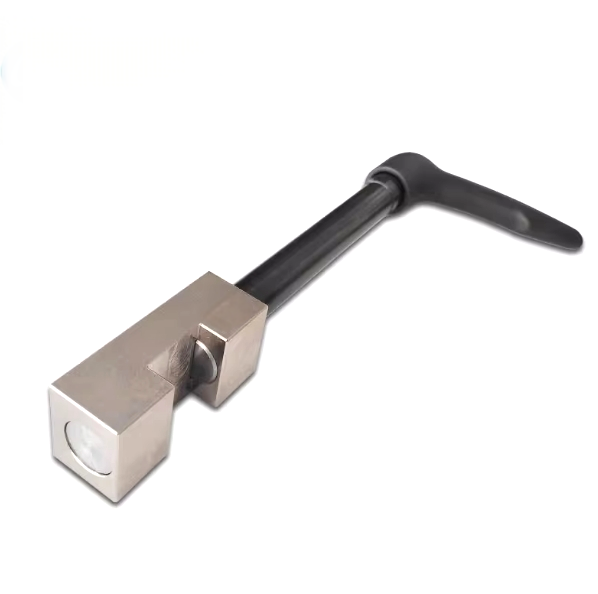

Standard or extended handles are available.
Fully compatible alternative to Zimmer HK-series linear clamps.
Customize linear guide clamp dimensions to match your specific setup.
Featuring a high-grade electroless nickel-plated finish,the clamp resists rust,ensuring extended service life in demanding conditions.
Download manual linear guide clamp size table.png
