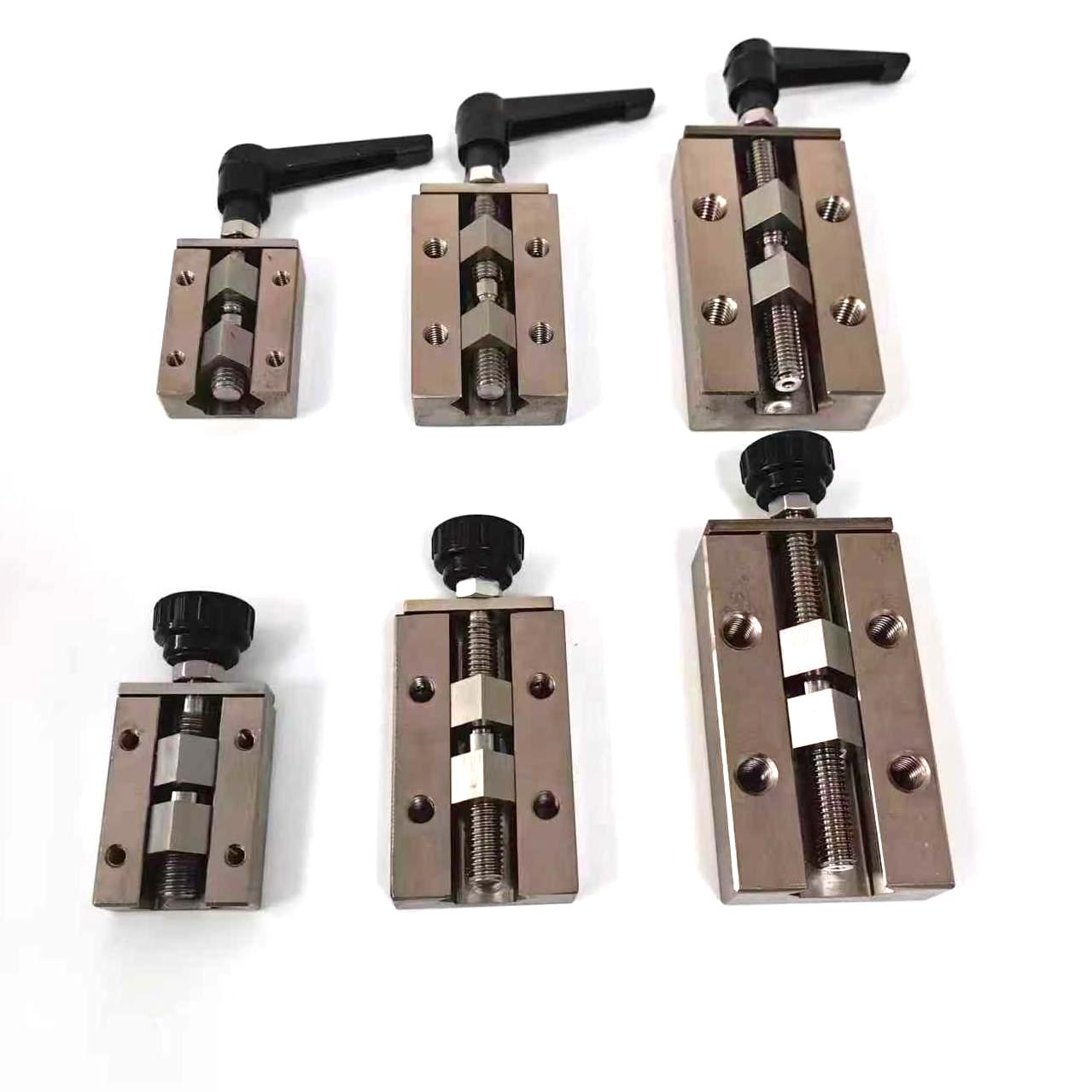

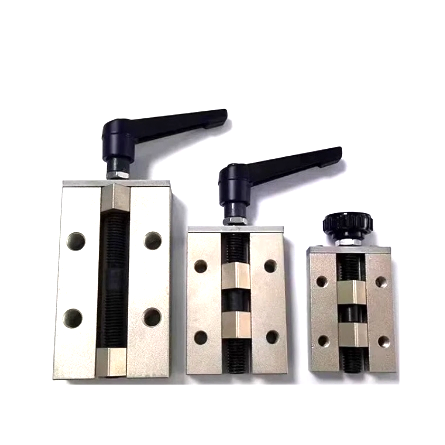

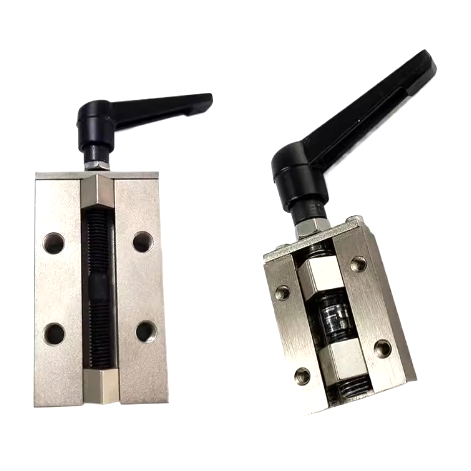

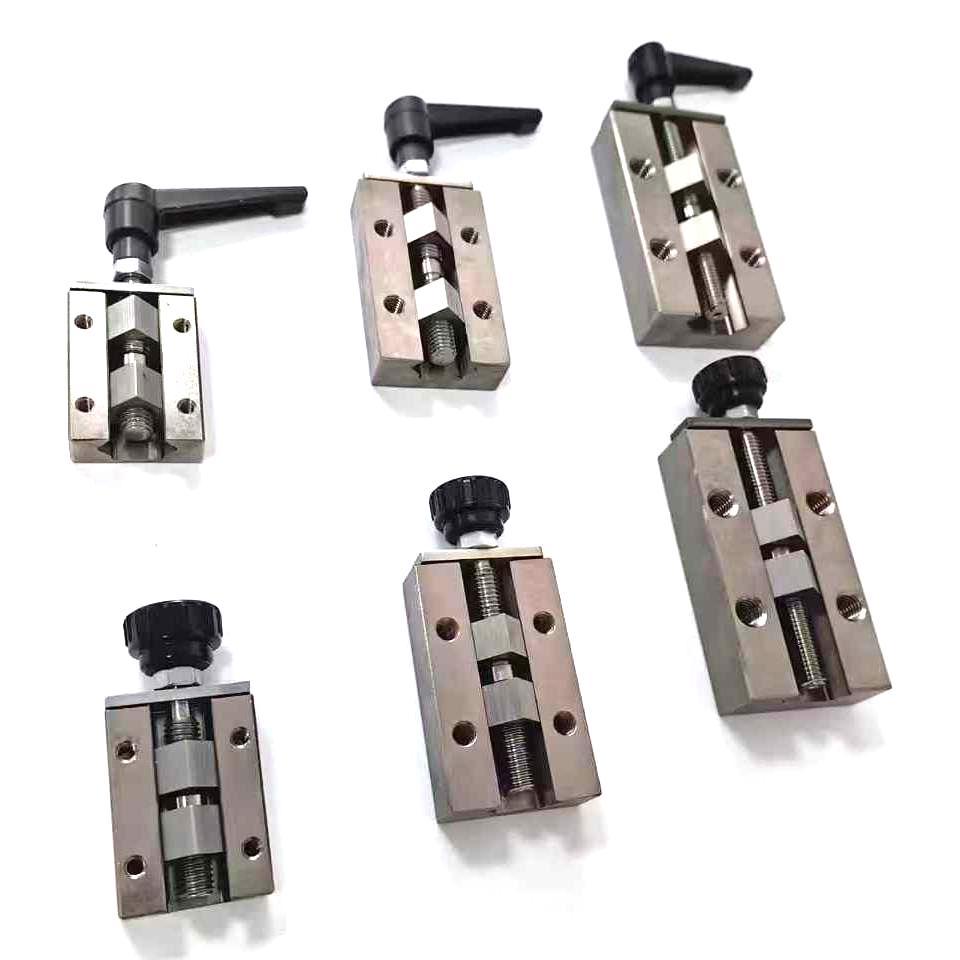

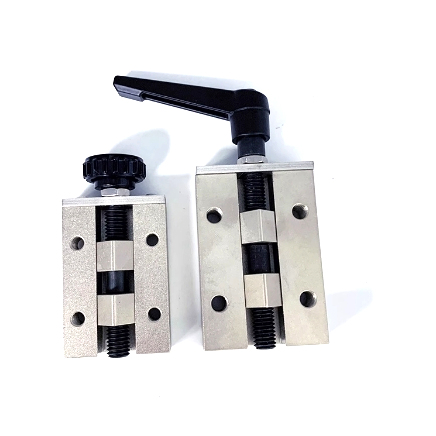

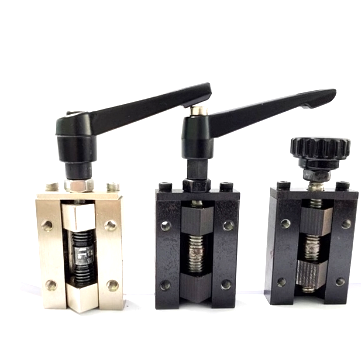

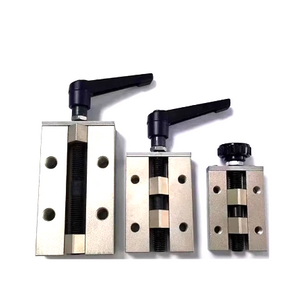

SVCK33 Manual Linear Guide Rail Clamp Fixture
The SVCK33 fixture is a manually operated clamping device designed for medium to heavy-duty linear guide systems,providing secure positional locking on compatible rails.This clamp allows users to fix carriages at any desired position along the rail with simple manual adjustment,ensuring stability during operation.
Linear Guide Clamp Materials
Knob Type | Part | Material | Surface Treatment | |
SVCK | (1) | Main Body | 1045 Carbon Steel or Equivalent | Electroless Nickel Plating |
(2) | Right &Left Hand Thread | 4137 Aloy Steel | Black Oxide Coating | |
（3） | Contacts | 1045 Carbon Steel or Equrvalent | — | |
SVCK33 Linear Guide Fixture Advantages：
Cost-Effective Solution:35% cost savings.
Fast Delivery: Lead time within 2 days.
Lightweight Design:Compact structure for space-constrained equipment.
SVCK Series Linear Guide Clamp Dimensions
Fitting Dimensions
Clamp Lever Type SVCK
Part Number | A | B | F | G | D | E | T | H₁ | H | ℓ1 | ℓ2 | ℓ3 | M | |
Type | H | |||||||||||||
SVCK | 24 | 32 | 44 | 24 | 24 | 43 | 10 | 10.5 | 16.3 | 17.2 | 9.5 | 6.8 | 5.2 | M4 |
28 | 35 | 50 | 25 | 25 | 43 | 10 | 11.5 | 17.3 | 20.2 | 9.5 | 7.8 | 4.2 | M5 | |
30 | 38 | 54 | 28 | 28 | 43 | 11 | 11.0 | 18.3 | 22.7 | 11.0 | 7.3 | 4.7 | M5 | |
33 | 38 | 62 | 26 | 26 | 43 | 10 | 14.0 | 19.8 | 22.7 | 9.5 | 0.3 | 1.7 | M6 | |
36 | 42 | 60 | 30 | 30 | 43 | 11 | 13.0 | 20.3 | 26.7 | 11.0 | 9.3 | 2.7 | M6 | |
42 | 46 | 80 | 32 | 32 | 43 | 11 | 18.0 | 25.3 | 27.7 | 11.0 | 14.3 | - | M8 | |
Contact our sales to get a quote!
