Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles

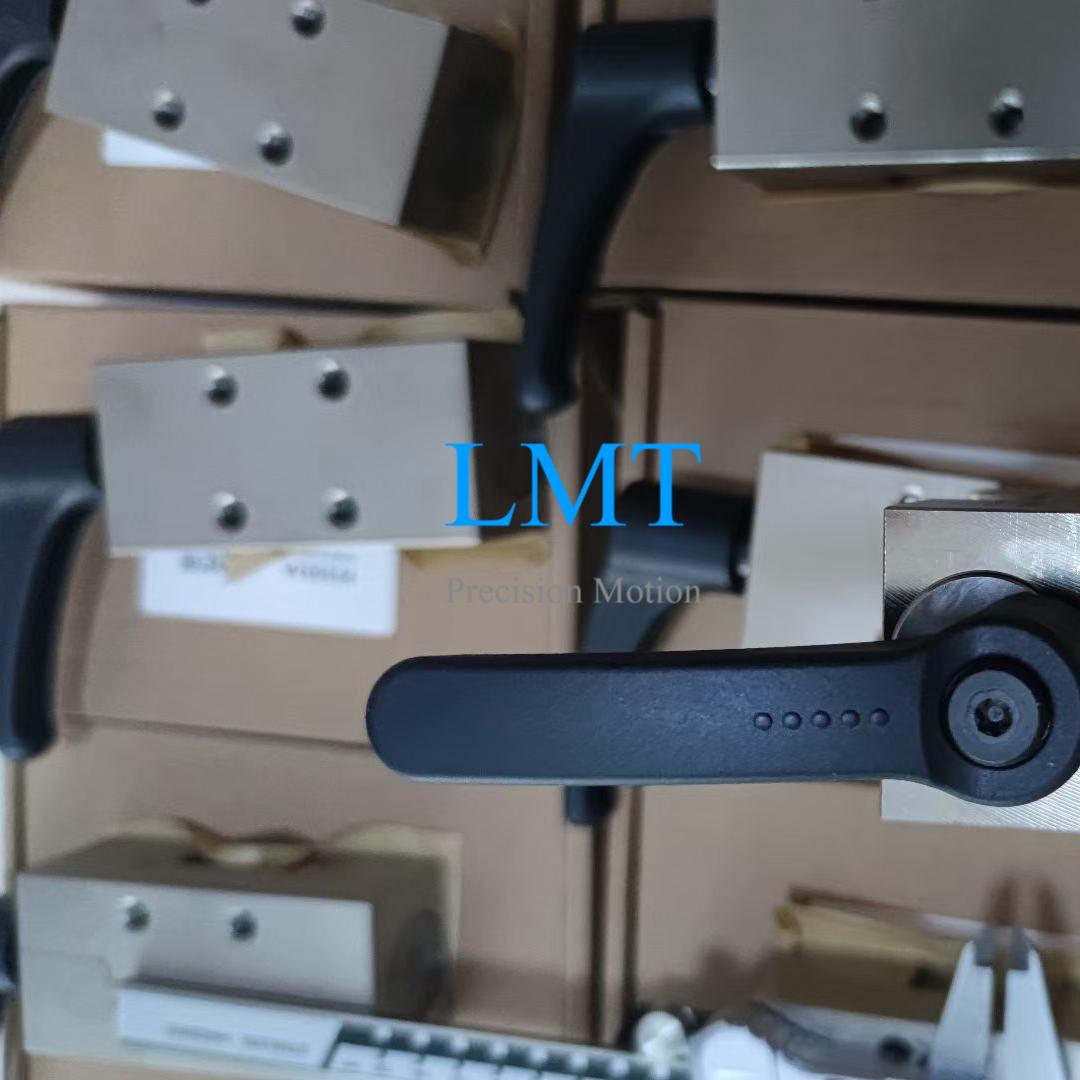

Lead time:Large inventory in stock
Stop costly vibration and worktable drift! Our robust 20mm manual linear rail clamp delivers exceptional holding force in a compact design.Manually secure your linear guides instantly for precise positioning,enhanced overall stiffness,and reliable anti-vibration performance.Achieve unwavering stability on your machine.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 20mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Rail Manual Clamp Key Advantages:
The linear rail clamp is suitable for most common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.

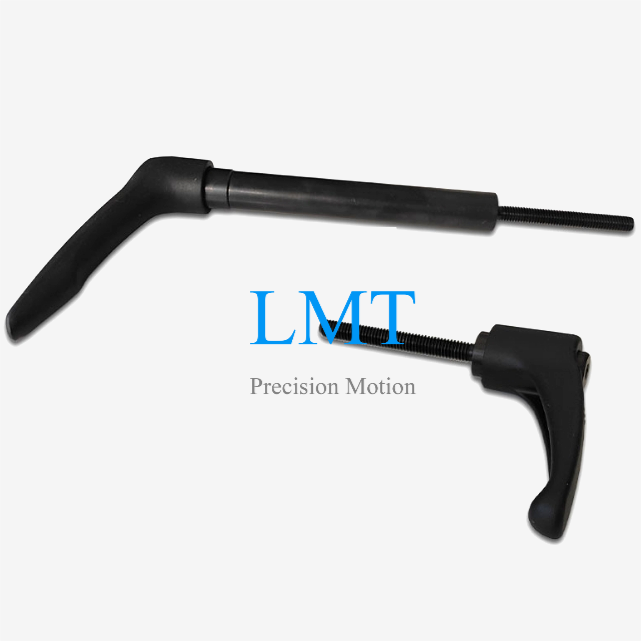

Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Its compact design minimizes space requirements,ideal for tight installations.
Replacement for Zimmer and NBK brand HK series manual rail clamps.

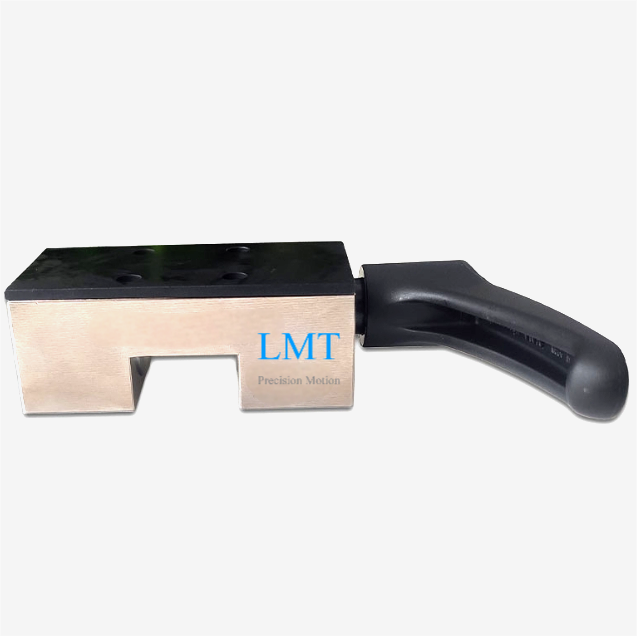

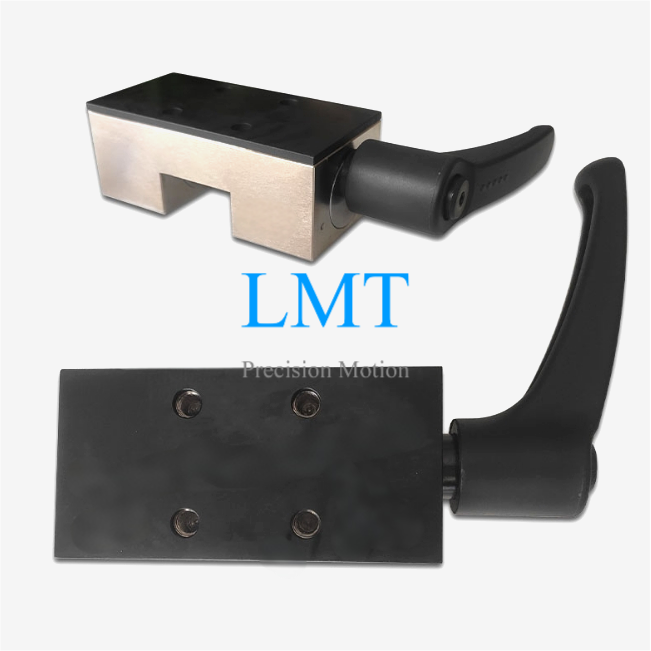

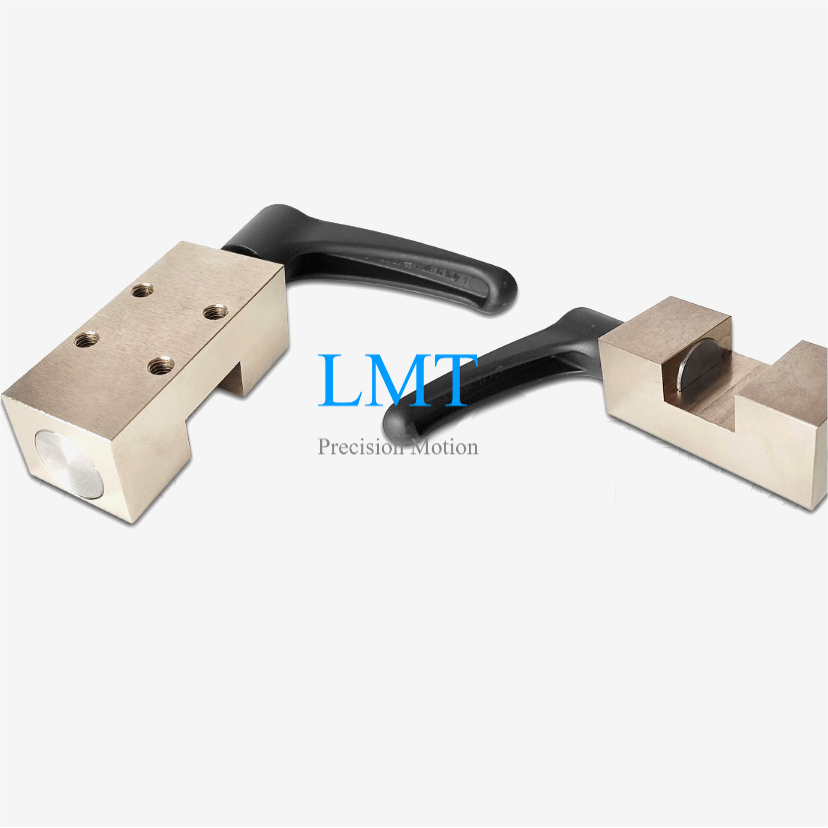

Linear Guide Rail Manual Clamp Pictures：
