Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
HK3501A Replacement Manual Clamp Fixture for HGH35 HGW35 Linear Guide
This manual rail clamp is compatible with HIWIN HGH35 and HGW35 linear guideways,serving as a direct replacement for the HK3501A model.It enhances system performance by delivering vibration damping,enhanced structural integrity,and precise positioning.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 35mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HGH35 HGW35 Linear Guide Manual Clamp Key Advantages:
The manual clamp is suitable for all common profile rail guides.
Our linear guide clamps will help you save 25%~45% of your costs.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual fixture mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.

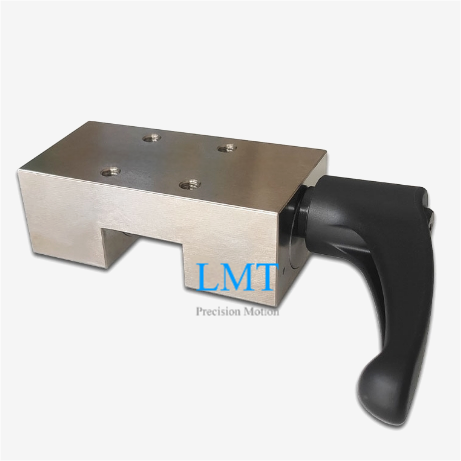

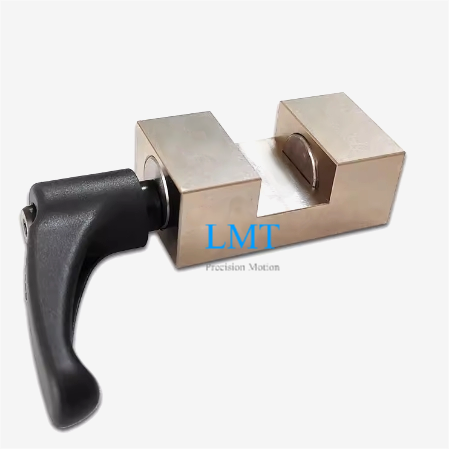

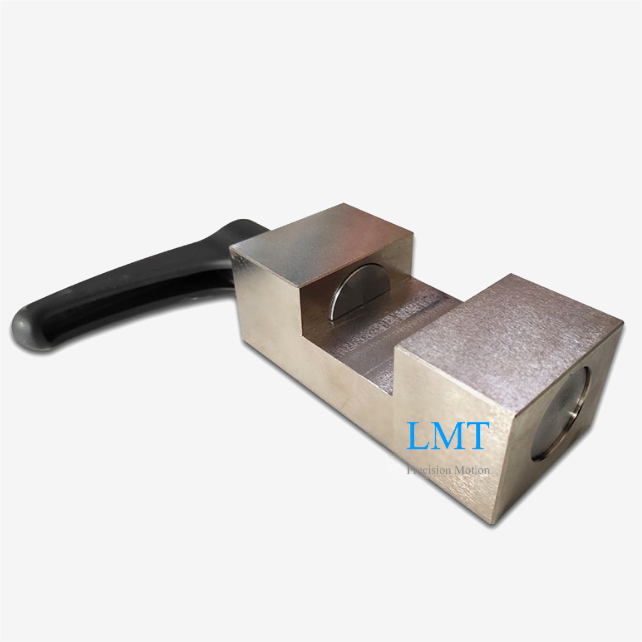

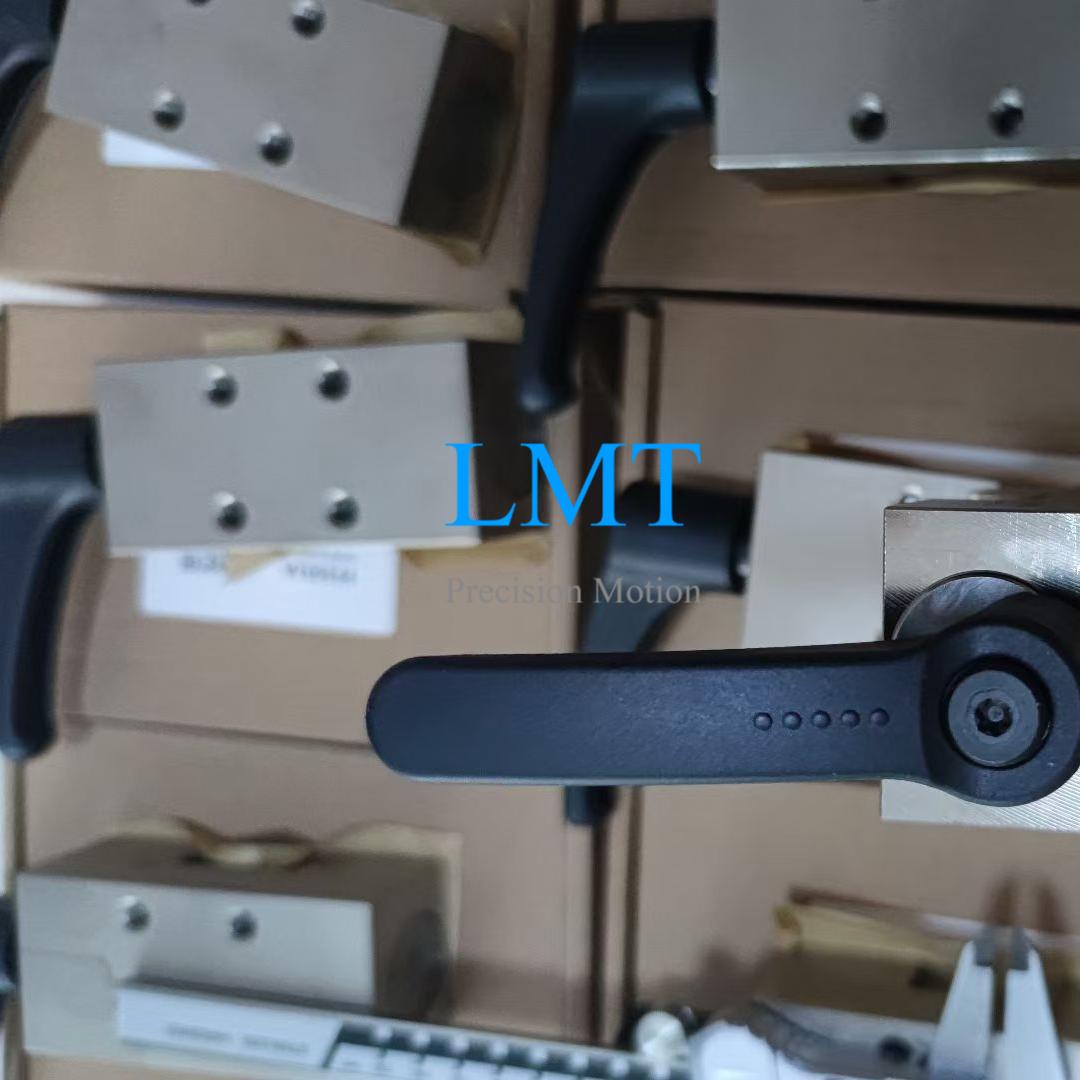

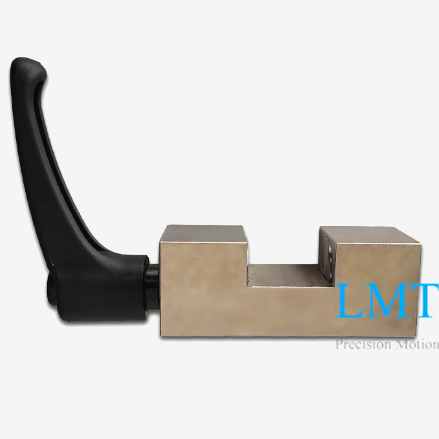

35mm Linear Rail Clamp Fixture Pictures:
