Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
30mm Linear Rail High Rigidity Manual Clamp Braking
Engineered for 30mm linear guides,this heavy-duty manual clamp offers exceptional holding force to firmly fix worktables and critical components.Its compact structure ensures easy integration,delivering anti-vibration stability,improved overall stiffness,and reliable precision positioning for CNC,mills,and automation.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 30mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
30mm Rail Manual Clamp Key Advantages:
The manual clamp is suitable for all common profile rail guides.
Help you achieve 25% to 45% cost savings on your projects.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual braking mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Industrial Applications of 30mm Manual Rail Braking:
CNC Machine Tooling: Workpiece fixturing on linear guideways;Auxiliary axis reinforcement.
Precision Measurement Systems:CMM track locking;Optical alignment rail stabilization.
Automated Assembly Lines:Conveyor track position locking;Robotic end-effector rail fixation.
Material Handling Equipment:Transfer cart track braking;Overhead crane rail alignment.
Woodworking Machinery:Panel saw guide rail securing;Router track vibration control.
Semiconductor Manufacturing:Wafer handler rail stabilization;Cleanroom automation positioning.

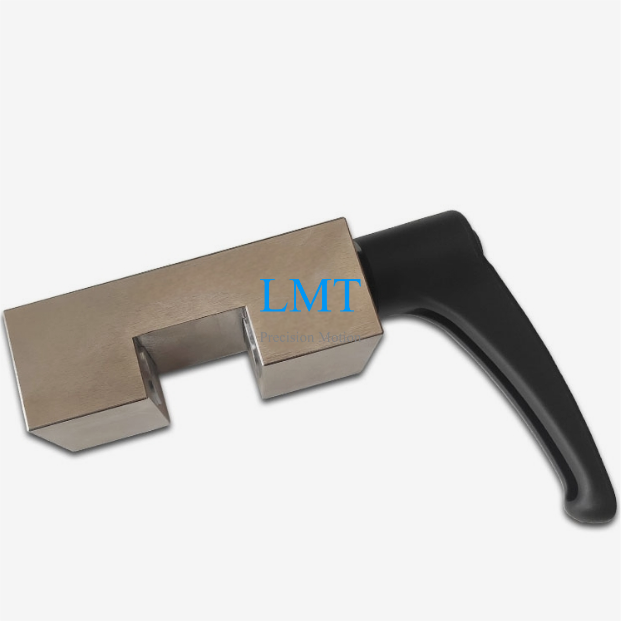

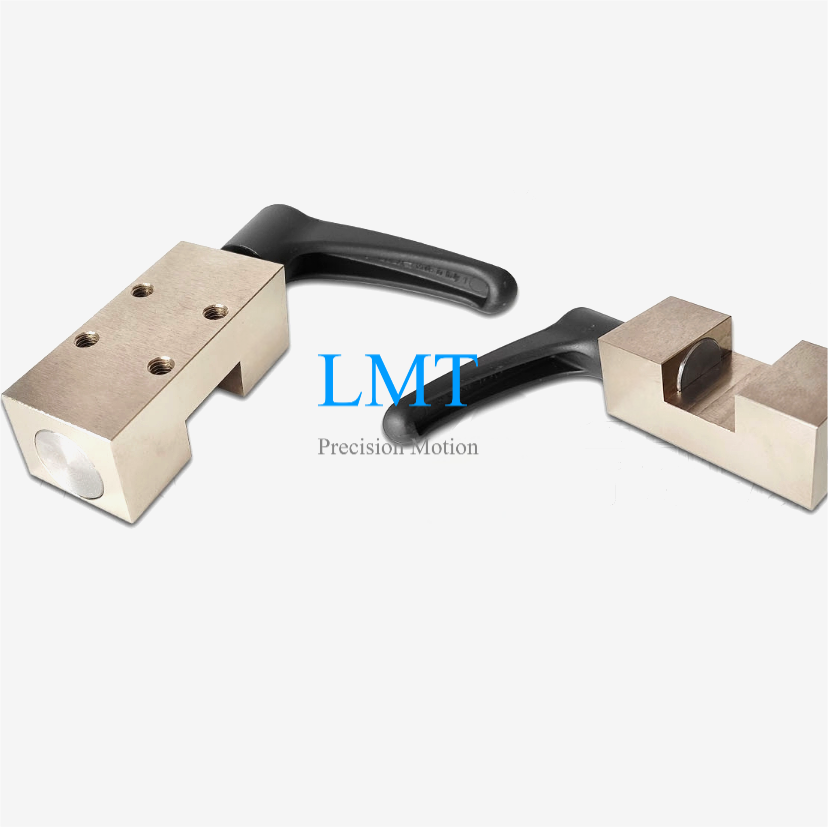

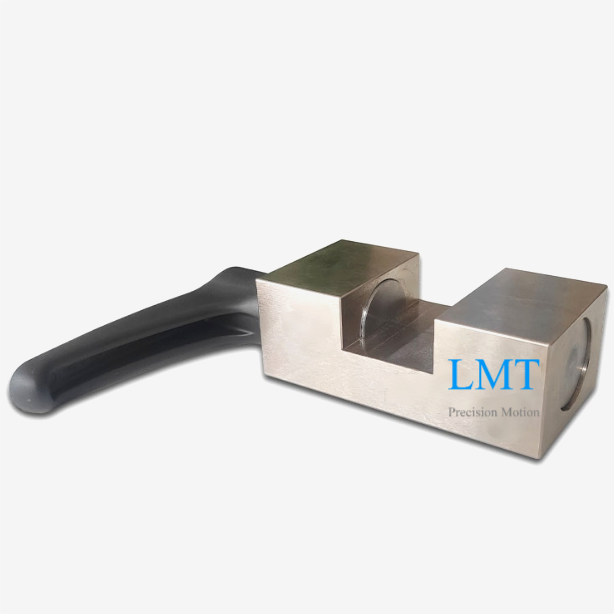

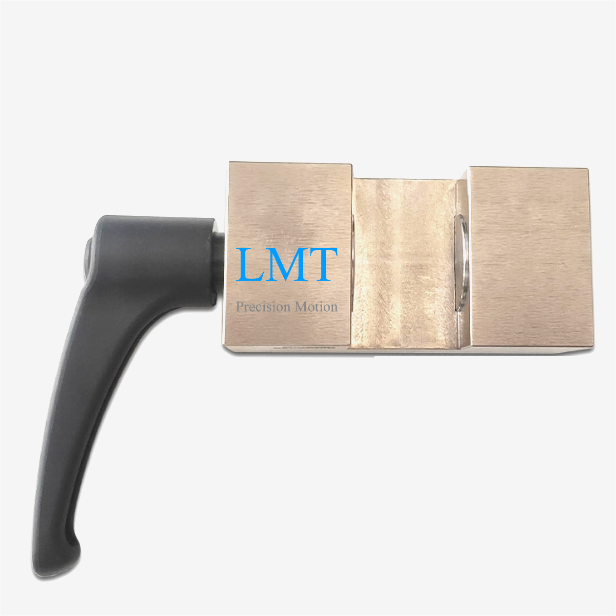

Manual Guide Clamp Pictures:
