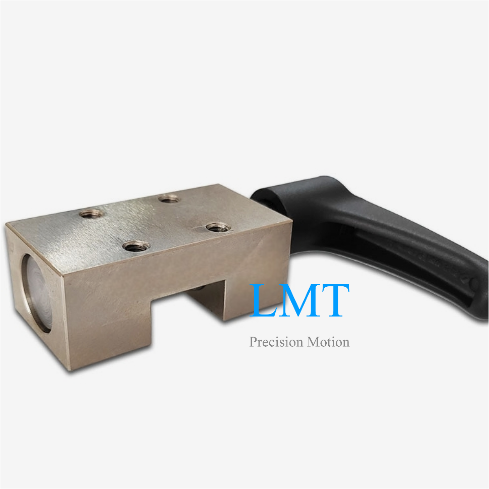

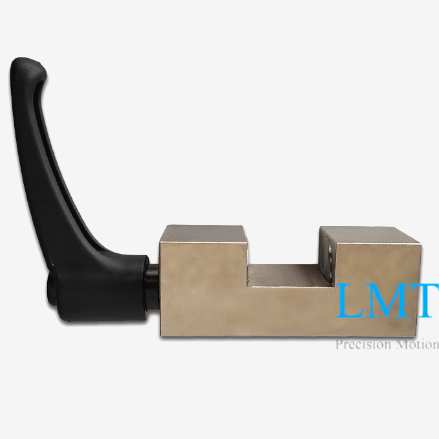

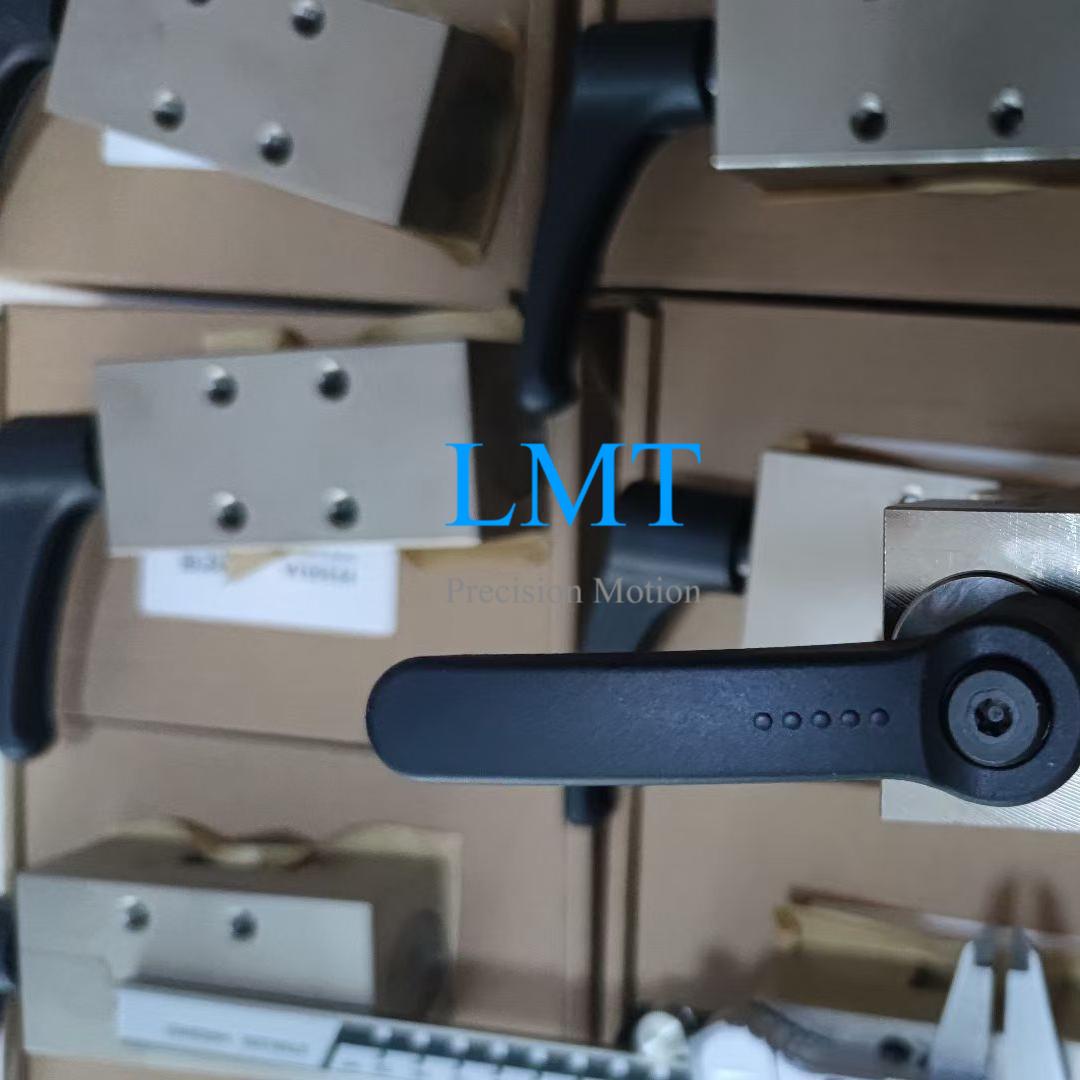

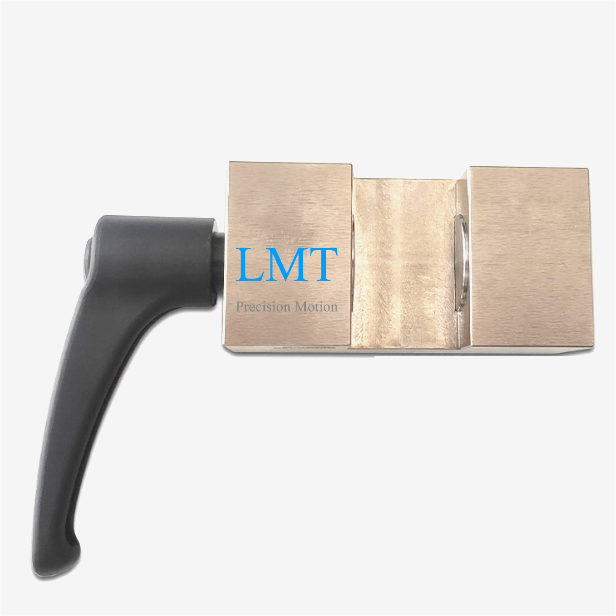

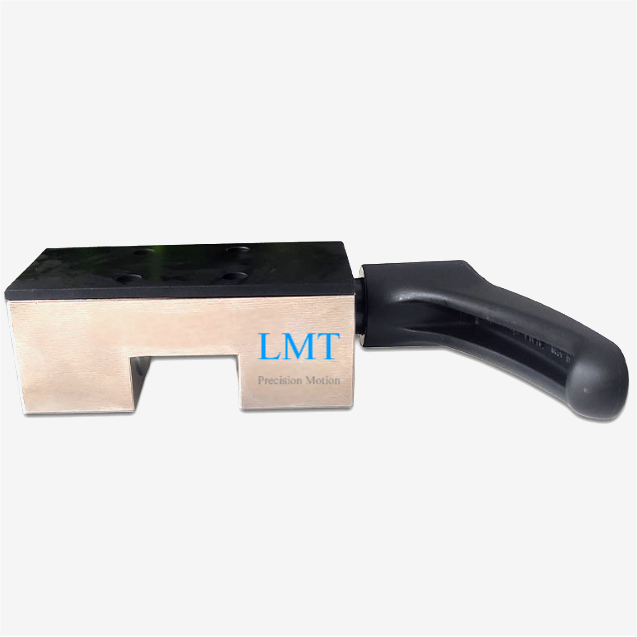

HK1501A Replacement Manual Clamp Fixture for 15mm Rails
Designed for 15mm linear rails,this manual clamp replaces the original HK1501A rail clamp,effectively dampening vibration,enhancing rigidity,and ensuring precise positioning.
Technical Data:
Clamp types | Manual |
Linear guide sizes | 15mm |
Rated holding force(N) | 1200N |
Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
Operating temperature | 0 °~70 °C |
Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
2D and 3D drawing | Available |
15mm Rail Manual Clamp Fixture Advantages:
Cost-effective:20%~40% cost savings.
Maintenance free:Up to 50,000 static clamping cycles.
Broad range of products:For all common profile rail guides.
Tool-free opening and closing:By turning the clamping lever.
Customizable dimensions:Tailor linear guide clamp to your exact requirements with custom sizing options.
Handle options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Designed to fully replace HK-series linear rail clamps,our product matches performance while offering superior cost efficiency.
Features a durable corrosion-resistant surface coating,safeguarding against rust and wear in challenging environments,ensuring extended operational life.
