Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
HK3001A Replacement Manual Clamp Fixture for HGH30 HGW30 Linear Rail
This manual guide clamp is compatible with HIWIN HGH30 and HGW30 linear guideways,serving as a direct replacement for the HK3001A clamp.It enhances system performance through vibration damping,rigidity enhancement,and precision positioning.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 30mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HGH30 HGW30 Rail Manual Fixture Clamp Key Advantages:
The manual clamp is suitable for all common profile rail guides.
Help you achieve 25% to 45% cost savings on your projects.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual fixture mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
30mm Manual Rail Clamp Applications:
CNC Machine Tooling: Workpiece fixturing on linear guideways;Auxiliary axis reinforcement.
Precision Measurement Systems:CMM track locking;Optical alignment rail stabilization.
Automated Assembly Lines:Conveyor track position locking;Robotic end-effector rail fixation.
Material Handling Equipment:Transfer cart track braking;Overhead crane rail alignment.
Woodworking Machinery:Panel saw guide rail securing;Router track vibration control.
Semiconductor Manufacturing:Wafer handler rail stabilization;Cleanroom automation positioning.

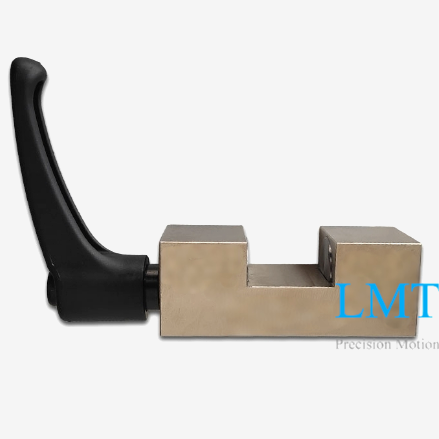

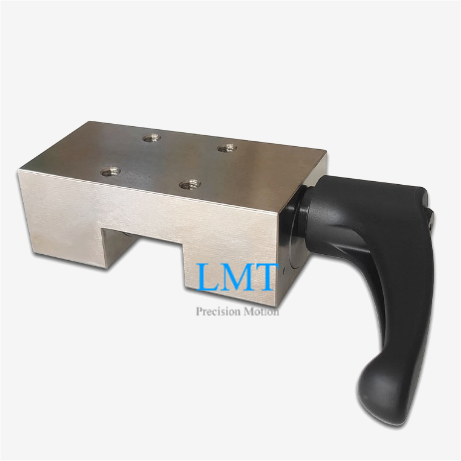

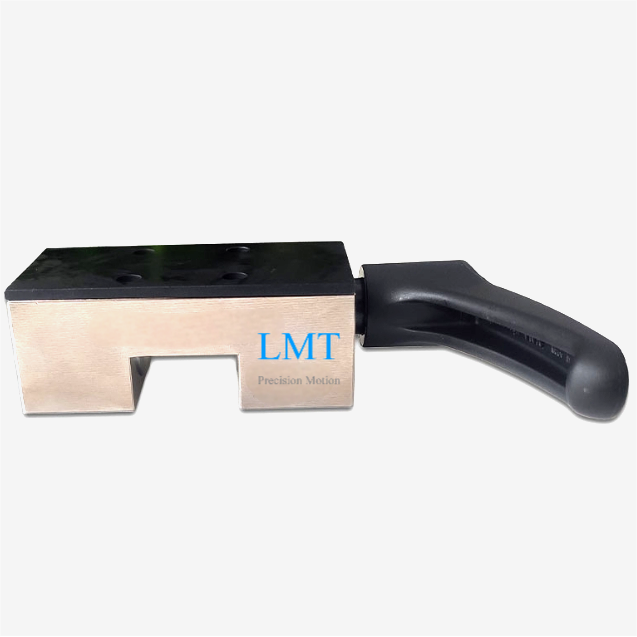

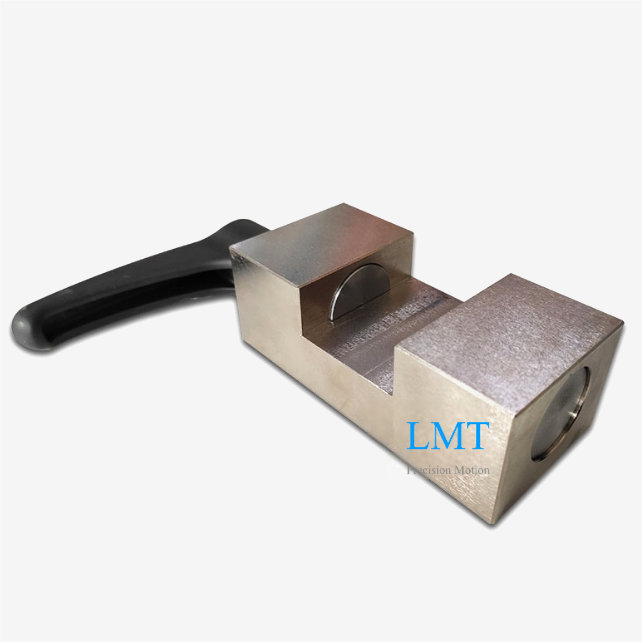

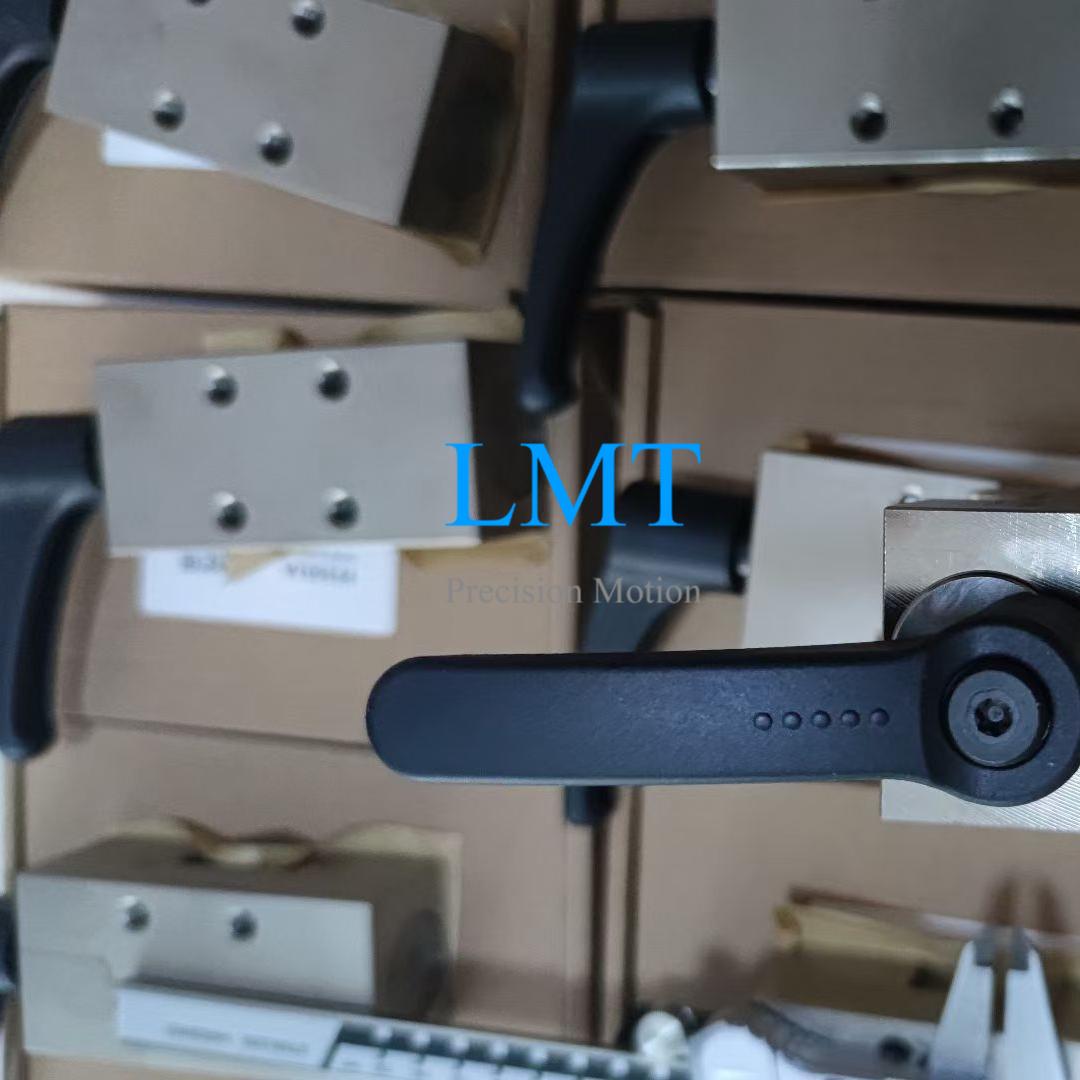

Manual Guide Clamp Fixture Pictures:
