Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
HK4501A Replacement Manual Clamp Fixture for HGH45 HGW45 Linear Guide
This manual rail clamp is compatible with HIWIN HGH45 and HGW45 linear guides,serving as a direct replacement for the HK4501A model.It features simple installation,vibration damping,enhanced structural rigidity,and improved positioning accuracy.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 45mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HGH45 HGW45 Linear Guide Manual Clamp Key Advantages:
The rail clamp is suitable for all common profile rail guides.
Our linear guide clamps will help you save 25%~45% of your costs.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual clamp mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Replacement for zimmer and NBK brand HK series manual linear guide clamps.

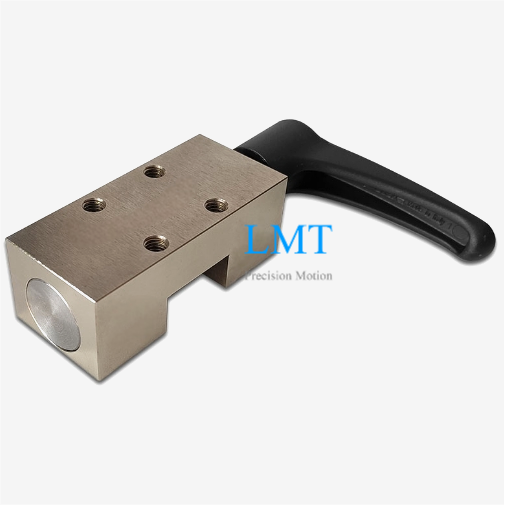

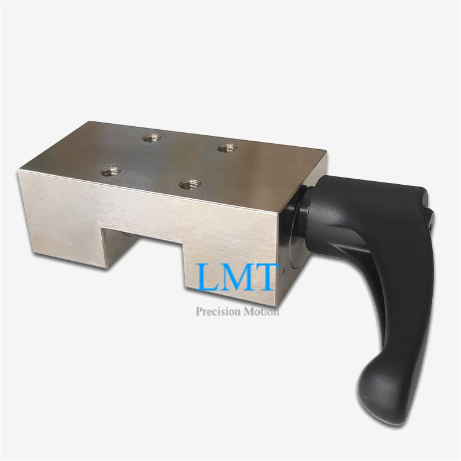

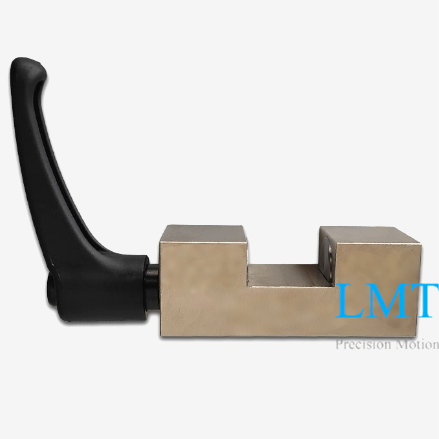

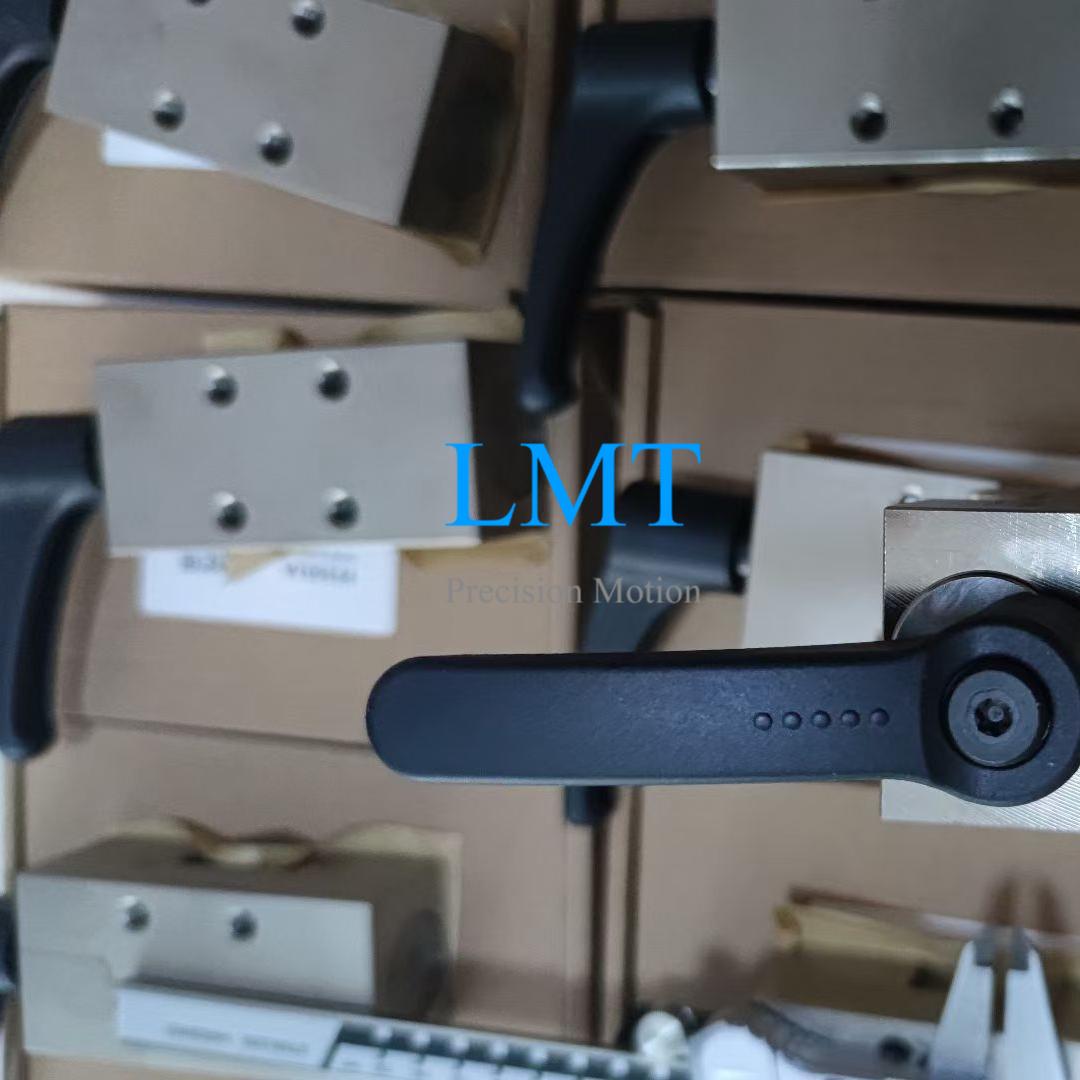

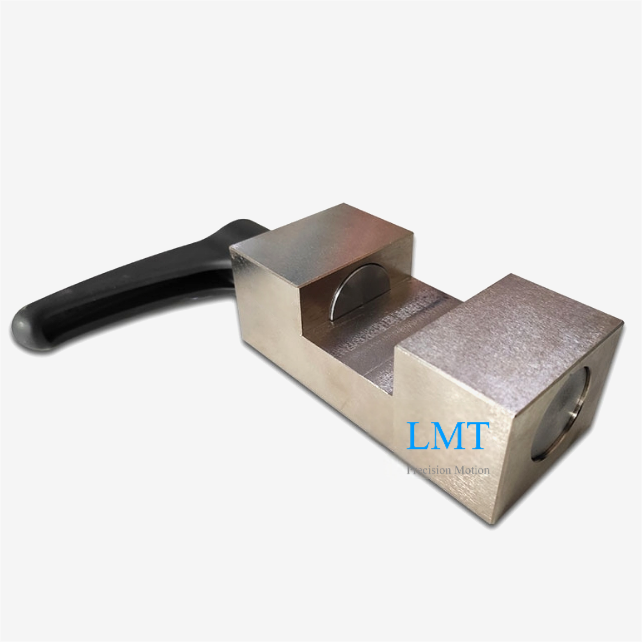

Manual Linear Guide Clamp Fixture Pictures：
