Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
HK2001A Replacement Manual Clamp Fixture for HGH20 HGW20 Linear Guide
This Manual Clamp Fixture,serving as a direct replacement for the HK2001A,is designed for use with 20mm HIWIN HGH20 and HGW20 linear guides.The manual fixture positively locks the carriage,dampens vibration,enhances rigidity,and ensures precise positioning.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 20mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Linear Rail Manual Clamp Key Advantages:
The linear rail clamp is suitable for most common profile rail guides.
Our manual clamps can save you 20% to 40% on your project.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Its compact design minimizes space requirements,ideal for tight installations.
Replacement for Zimmer and NBK brand HK series manual rail clamps.

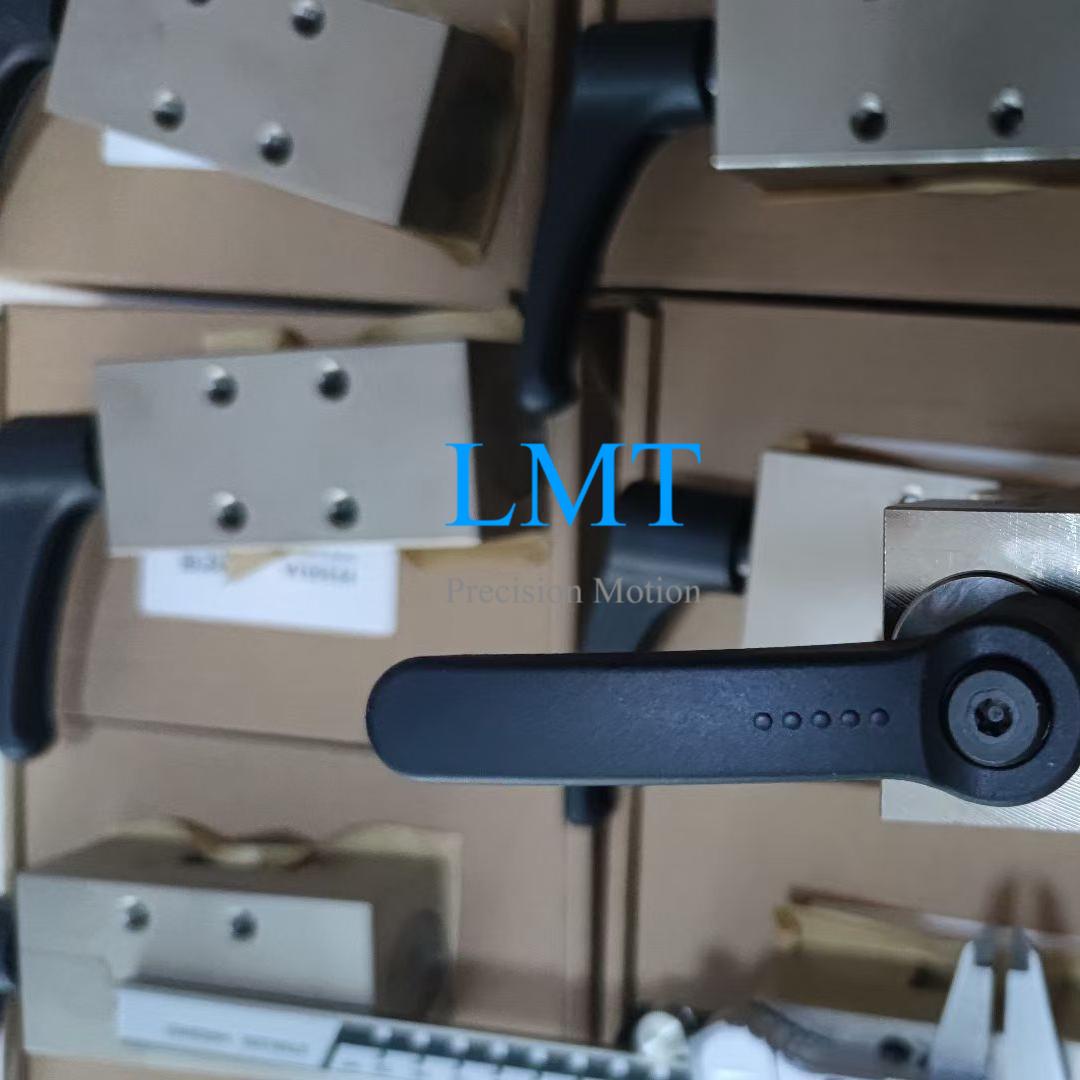

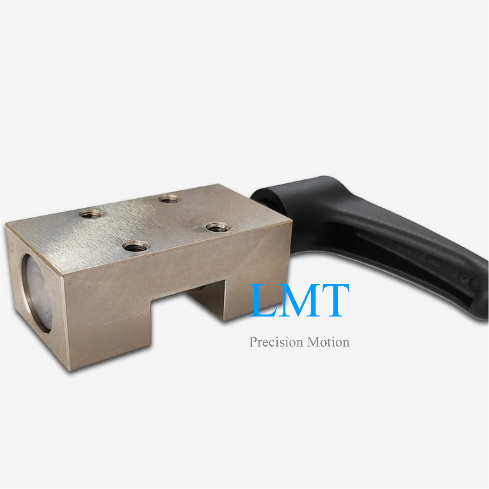

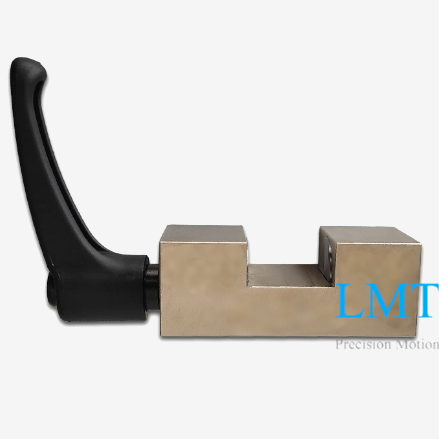

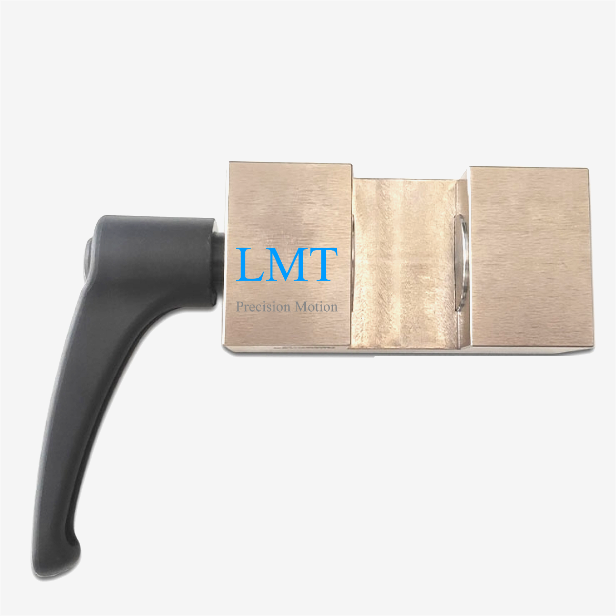

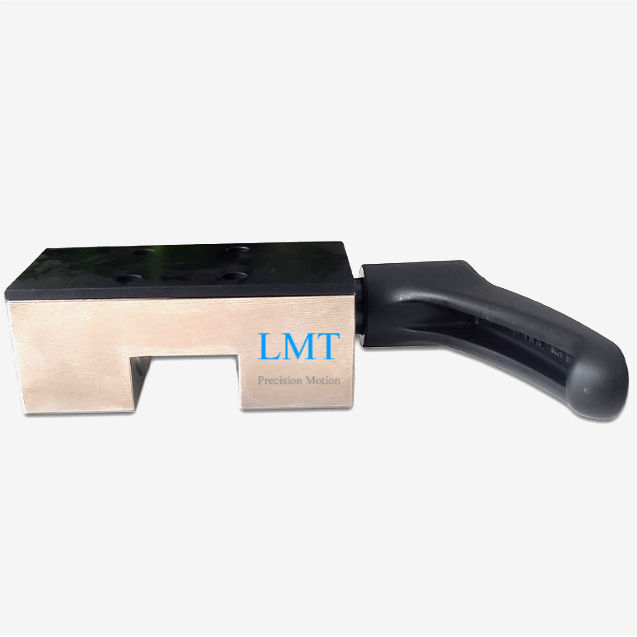

Linear Guide Manual Clamp Fixture Pictures：
