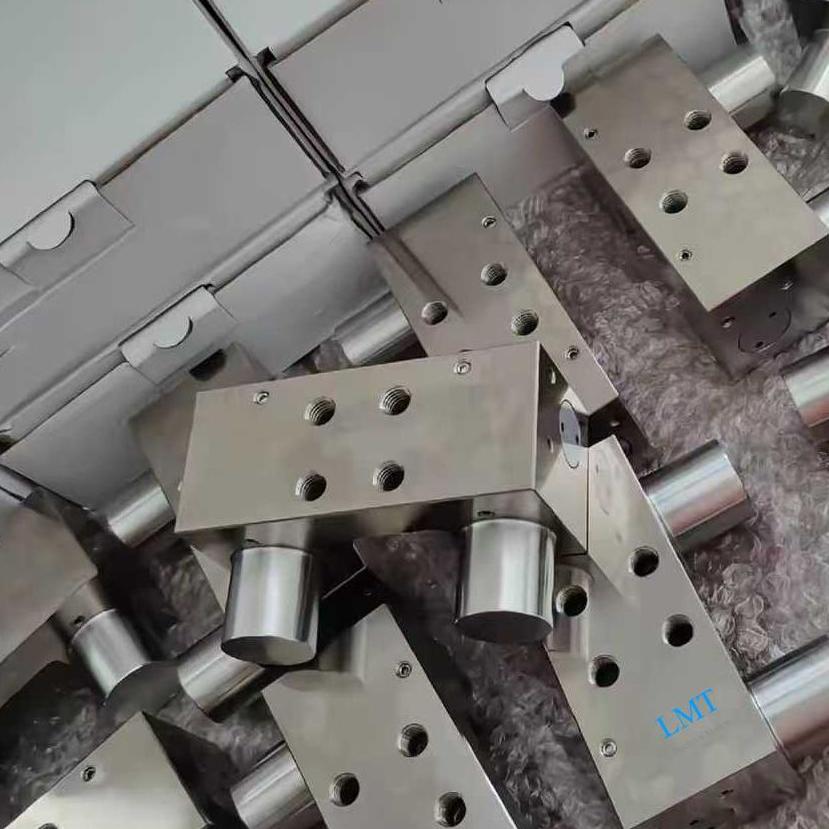

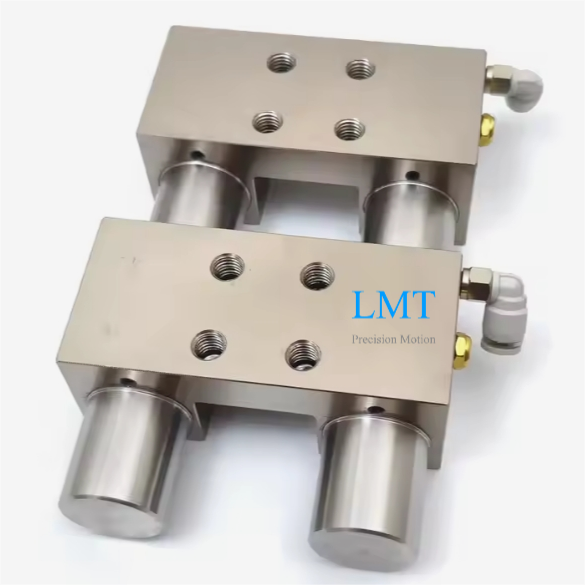

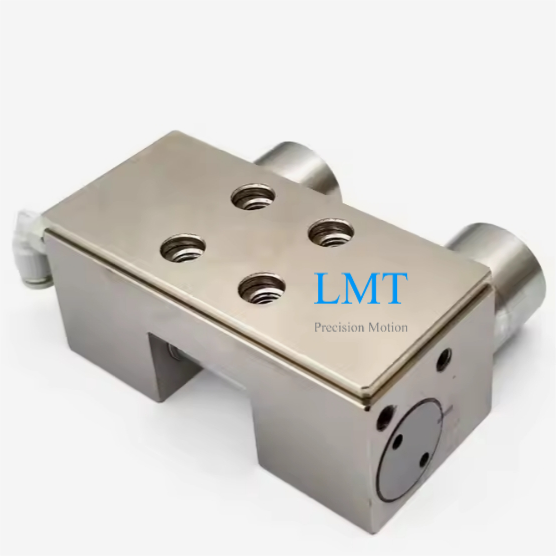

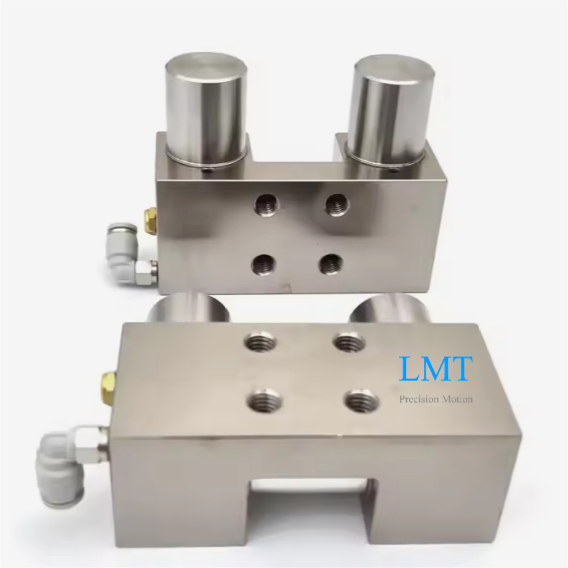

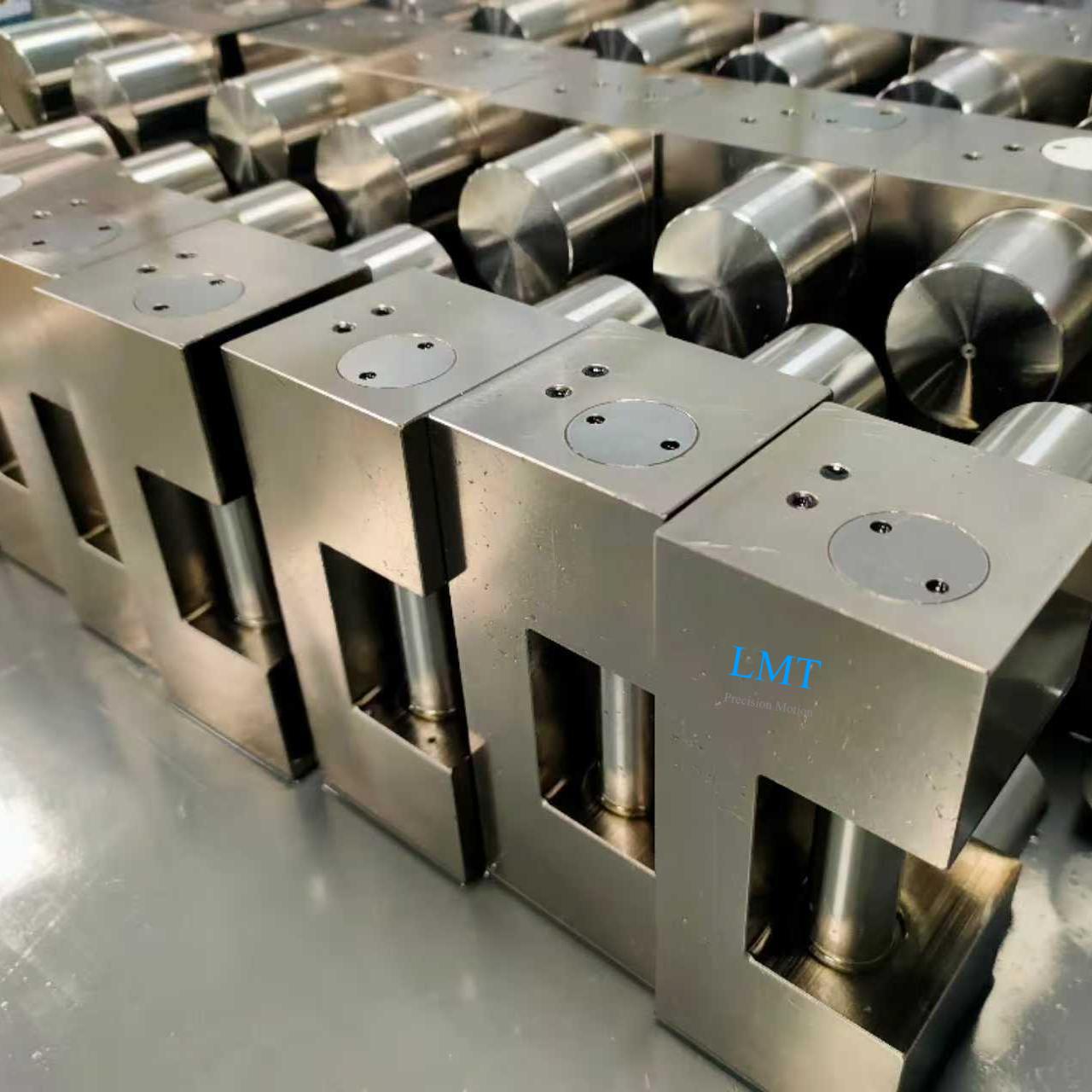

Pneumatic Normally Closed Clamp Brake for HIWIN & THK 45mm Linear Guides.Engages automatically without air supply (air-off clamping).Securely locks 45mm guide rails against vibration,ensures precise positioning,and boosts system rigidity.Ideal upgrade for HIWIN and THK 45mm linear motion systems requiring stable,maintenance-free braking.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 45mm |
| Rated holding force(N) | Standard connection 1450N,pressurized connection 3300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
45mm HIWIN THK Linear Guide Clamp Brake Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic NC Clamp Brake Video
