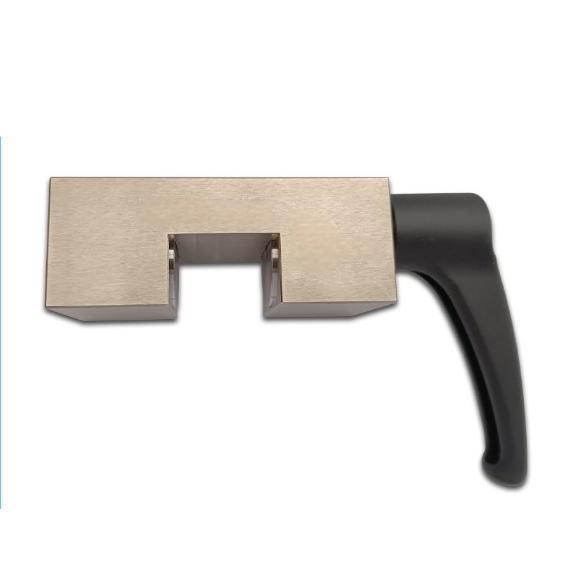

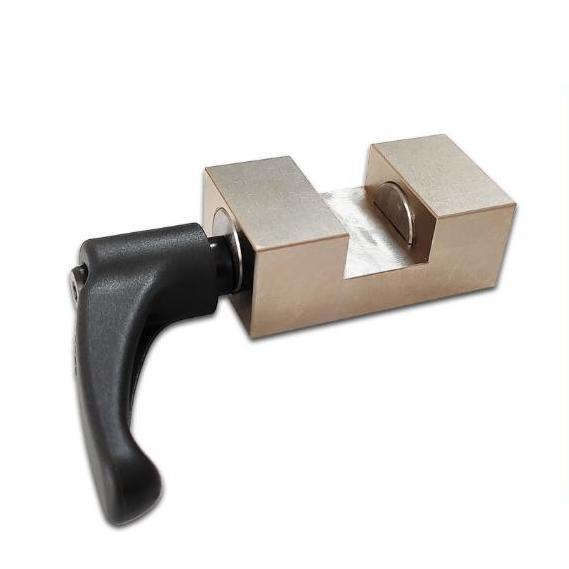

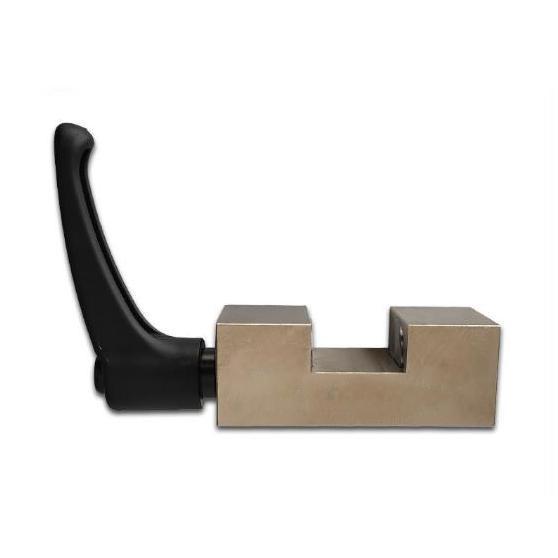

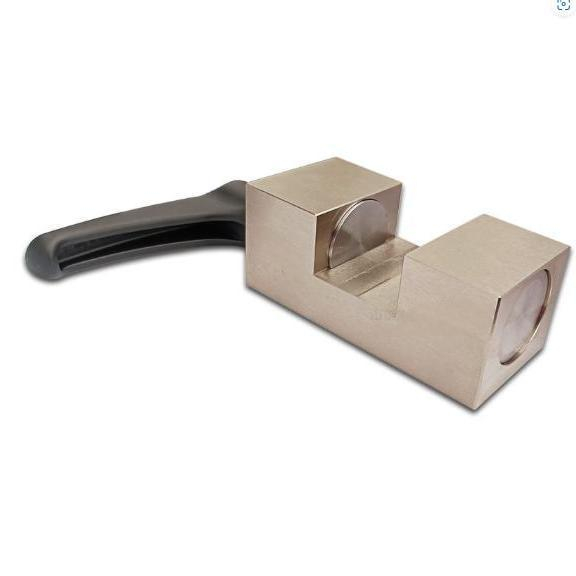

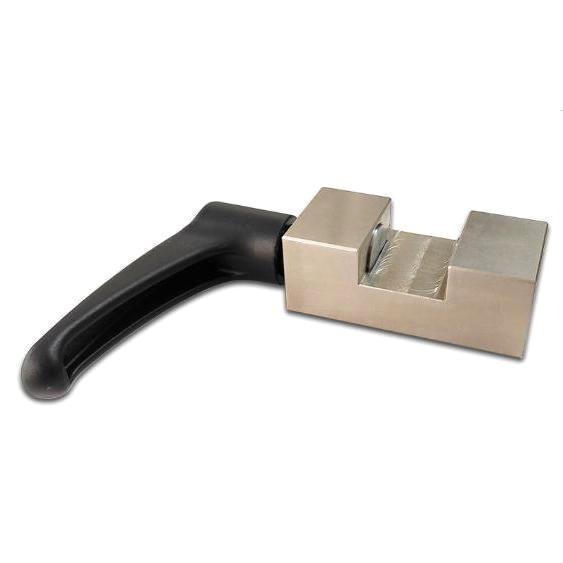

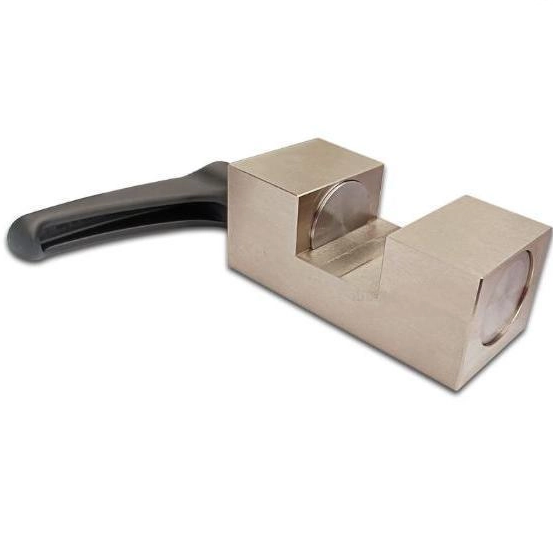

LMSK2501
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||
| Clamp types | Manual |
| Linear guide sizes | 25mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
LMT Manual Clamp Key Advantages:
The manual clamp is suitable for most common profile rail guides.
Help you achieve 25% to 45% cost savings on your projects.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual rail clamping ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Linear Guide Manual Clamp Applications:
CNC Machine Tooling: Workpiece fixturing on linear guideways;Auxiliary axis reinforcement.
Precision Measurement Systems:CMM track locking;Optical alignment rail stabilization.
Automated Assembly Lines:Conveyor track position locking;Robotic end-effector rail fixation.
Material Handling Equipment:Transfer cart track braking;Overhead crane rail alignment.
Woodworking Machinery:Panel saw guide rail securing;Router track vibration control.
Semiconductor Manufacturing:Wafer handler rail stabilization;Cleanroom automation positioning.
