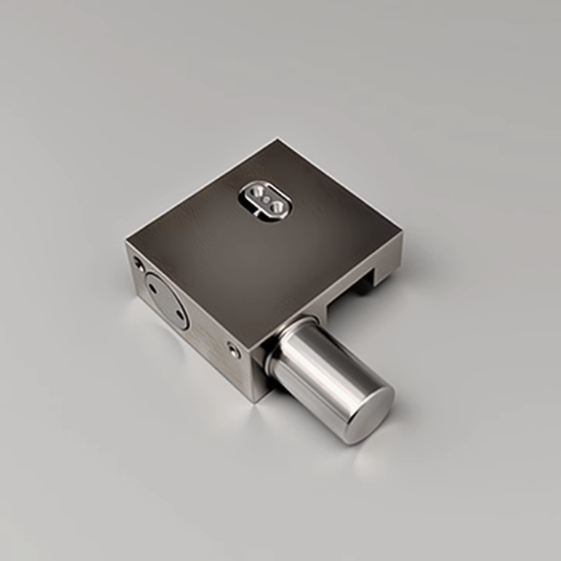

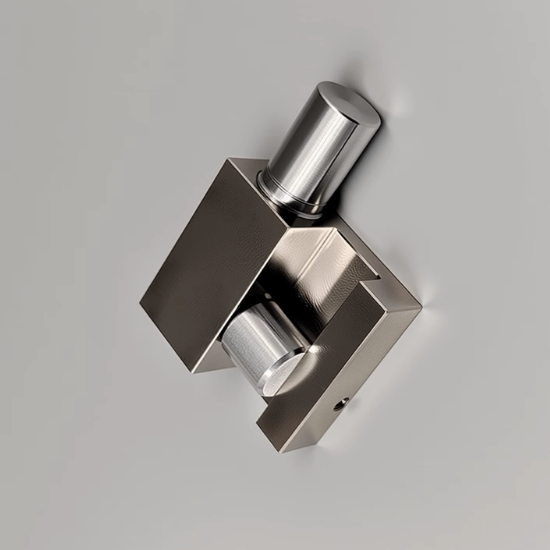

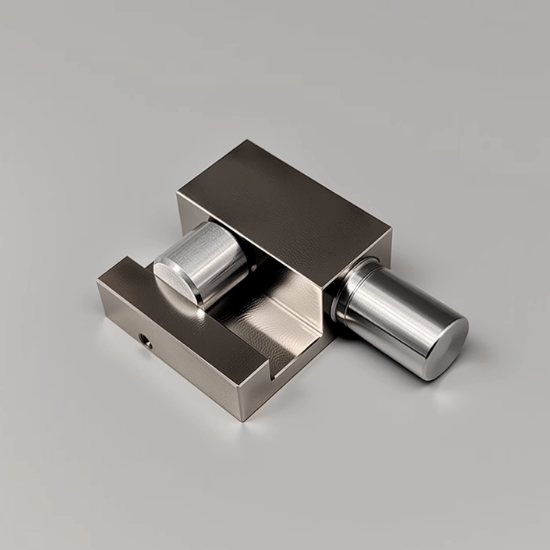

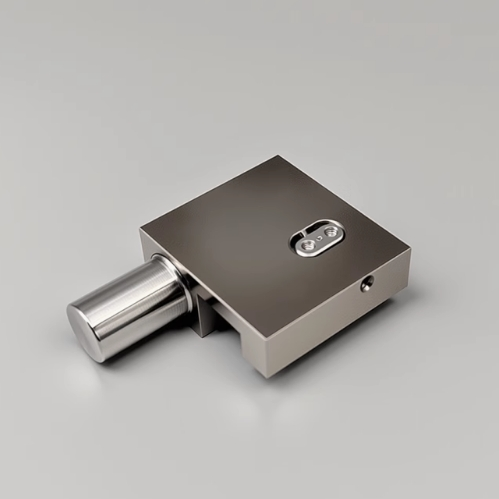

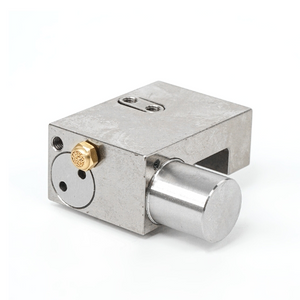

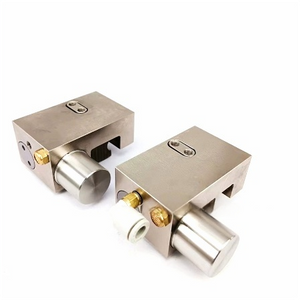

Pneumatic Normally Close Clamp Brake for 9mm Width Linear Guide

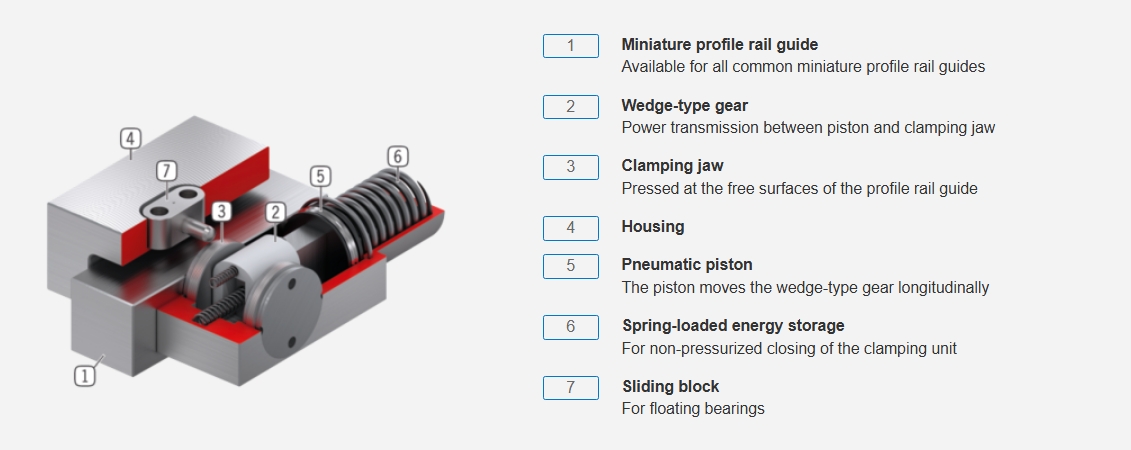

This is a single cylinder pneumatic normally closed clamp brake.It is suitable for most 9mm linear guides.This linear guide clamp is easy to install and can achieve high positioning accuracy.
Specification:
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 9mm |
| Rated holding force(N) | Standard connection: 80N,pressurized connection:200N |
| Open air pressure | 0.55~0.8Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |

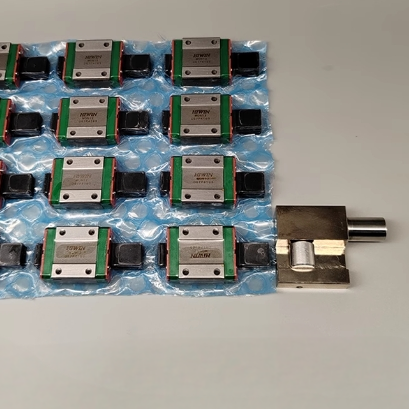

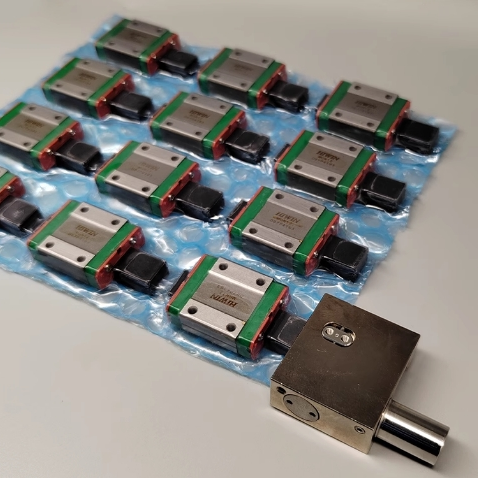

| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |

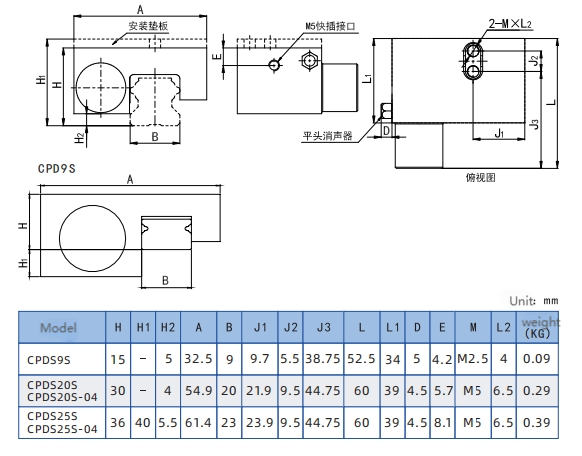

| 2D and 3D drawing | Available |
9mm Linear Rail Clamp Brake Key Advantages:
Lead time:Within 3 days.
Cost-effective: 20% cost savings.
High Durability:Up to 5 million static clamping cycles.
Safety element:Safe clamping in case of energy failure.
Broad Range of Products:For all common miniature profile rail guides.
Completely replace the Zimmer brand MCPS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Contact our sales to get a quote!
