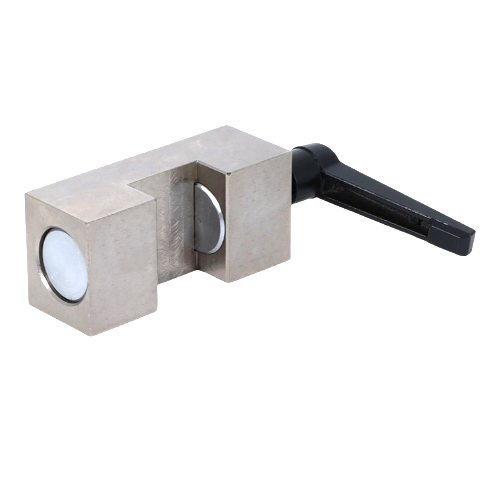

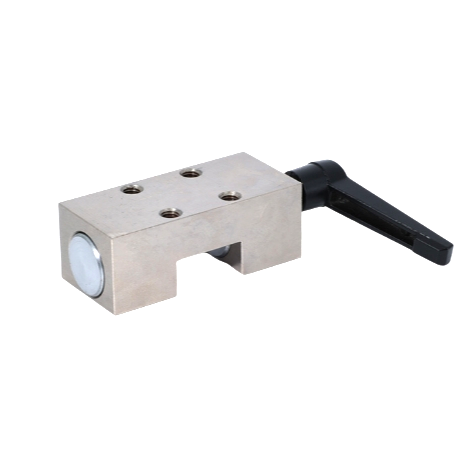

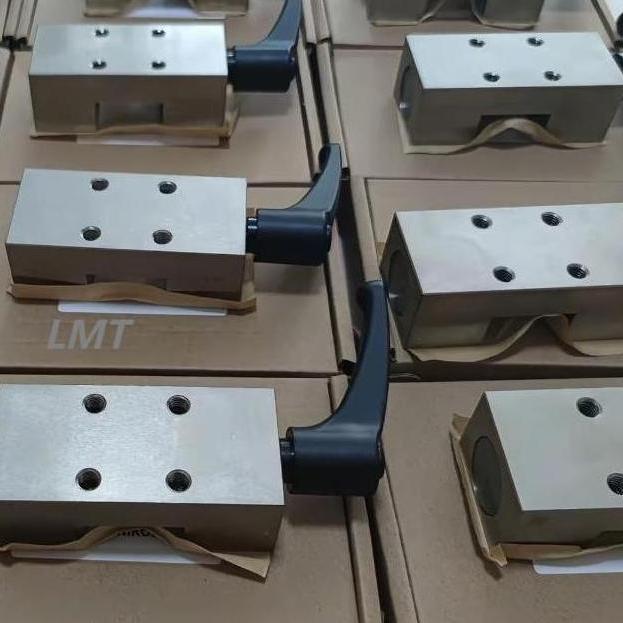

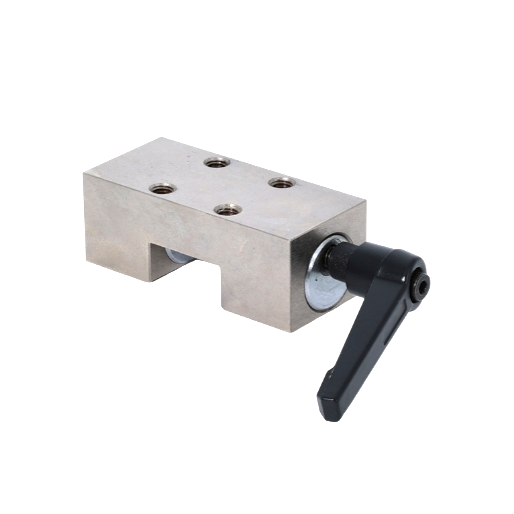

Manual Clamp Braking for 25mm Linear Guide Rail
This manual clamp braking prevents vibration and improves the rigidity and safety of linear guides.Economical and available in large quantities from stock.Suitable for 25mm size linear guides.
Technical Data:
| Clamp Types | Manual |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast Delivery :Within 3~5 days.
Cost-Effective:35% cost savings.
Maintenance free:Up to 50,000 static clamping cycles.
Broad range of products:For all common profile rail guides.
Tool-free opening and closing:By turning the clamping lever.
Customizable Dimensions:Tailor linear guide clamp to your exact requirements with custom sizing options.
Handle Options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Direct Replacement for Zimmer clamp: Designed to fully replace Zimmer HK-series linear rail clamps,our product matches performance while offering superior cost efficiency.
