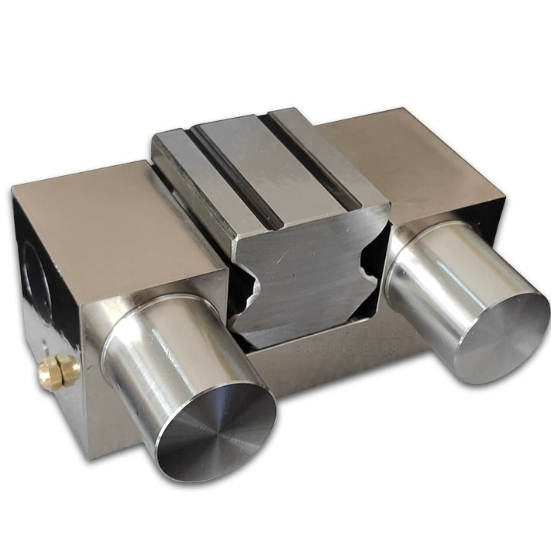

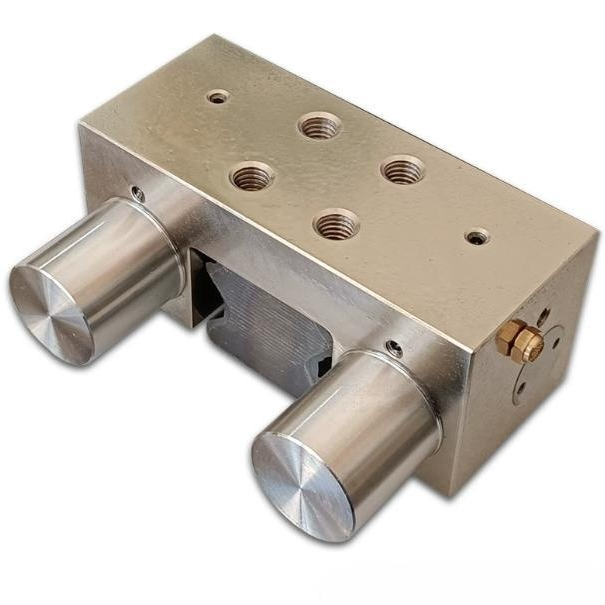

Pneumatic NC Clamping Braking Element for 25mm Linear Rail
This clamping and braking element is clamped when not supplied with air and requires air supply to release.Compatible with most 25mm size linear rails,it effectively dampens vibration and enhances linear guide rigidity and safety.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 750/1400N(standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Linear Rail Clamping and Braking Element Key Advantages:
Lead time:Within 3 days.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements,including force adjustments,mounting configurations,and compatibility with various 25mm rail profiles.

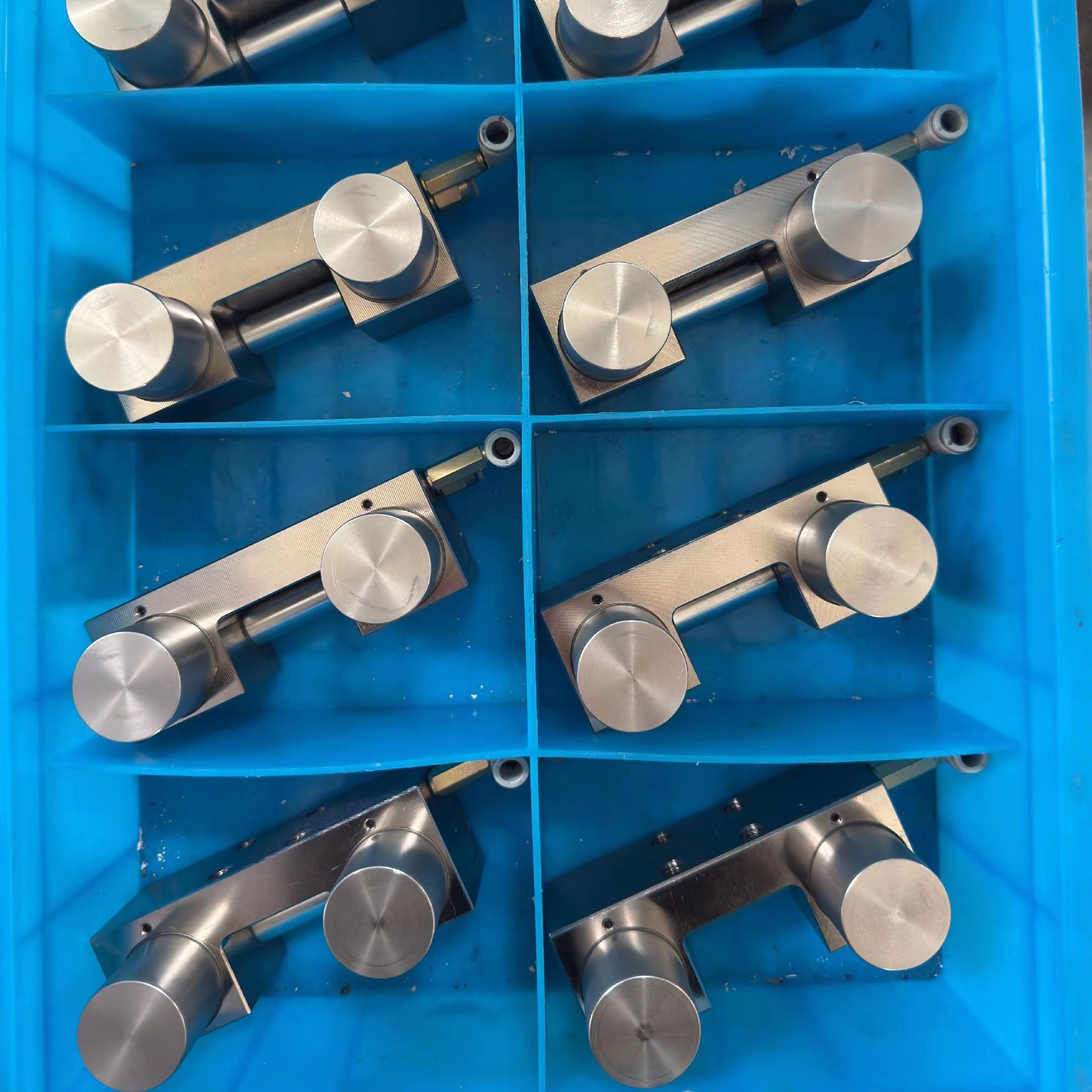

Pneumatic Normally Close Clamp Brake Video
