Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
The Manual Rail Clamp is a heavy-duty linear guide positioning stop block designed for precise locking and secure holding of 20mm linear guide systems.Engineered for compatibility with industry-standard linear rails(including HIWIN,THK,Bosch Rexroth,and IKO profiles),this clamp delivers instant manual clamping force to immobilize carriages during machining,assembly,or calibration processes.Its rigid construction ensures zero slippage under high loads,making it ideal for CNC machines,automation equipment,and precision workstations.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 20mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Manual Rail Clamp Key Advantages:
The manual rail clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
It excels as a mechanical stop block or brake,holding positions firmly.Its compact design minimizes space requirements,ideal for tight installations.
Simple installation reduces setup time and cost,while robust 1200N clamping force ensures secure holding for demanding applications.

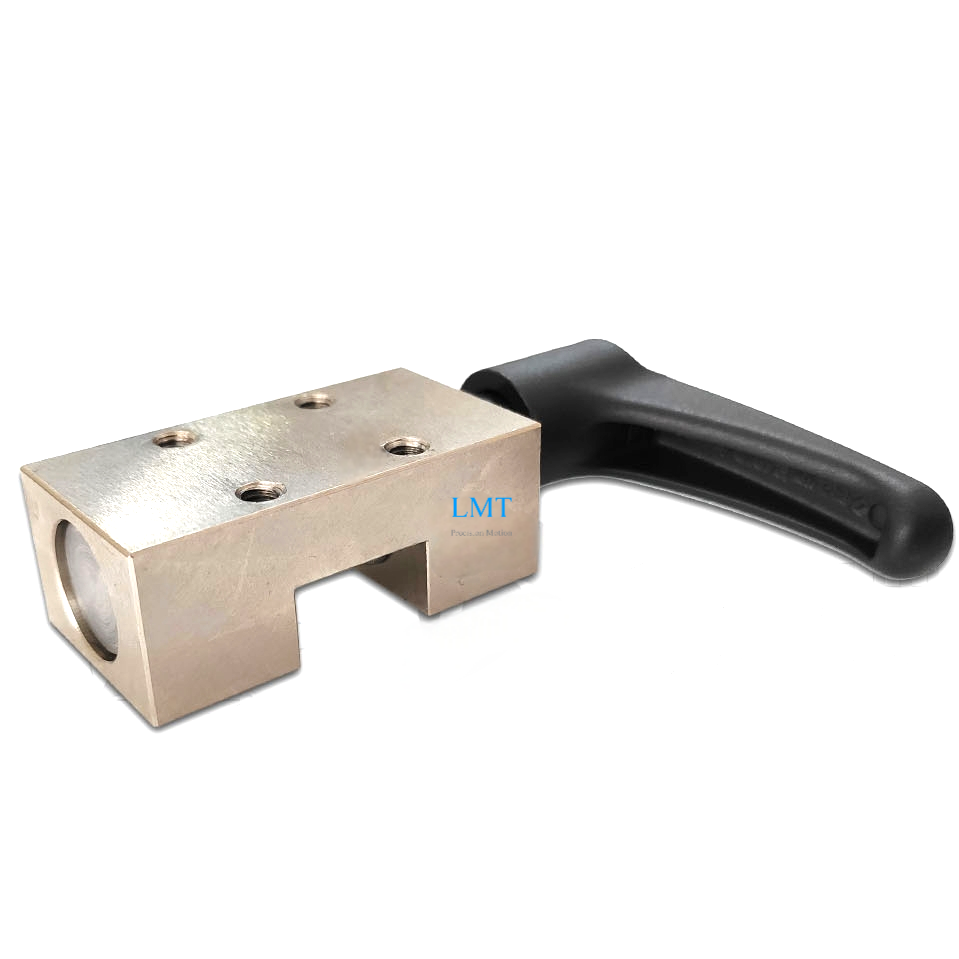

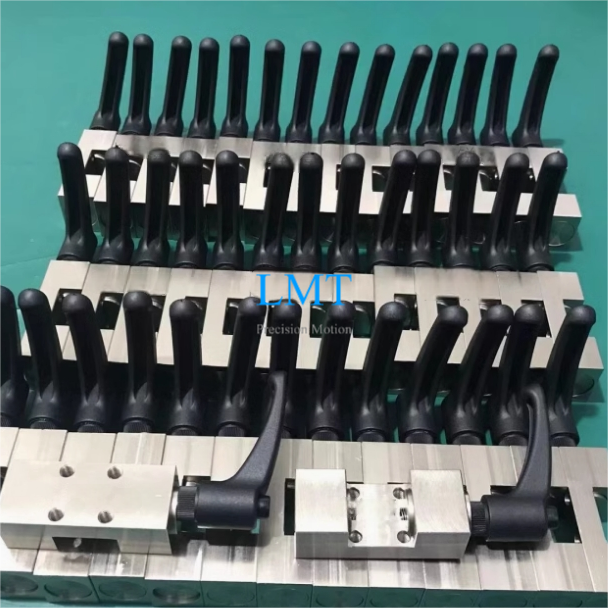

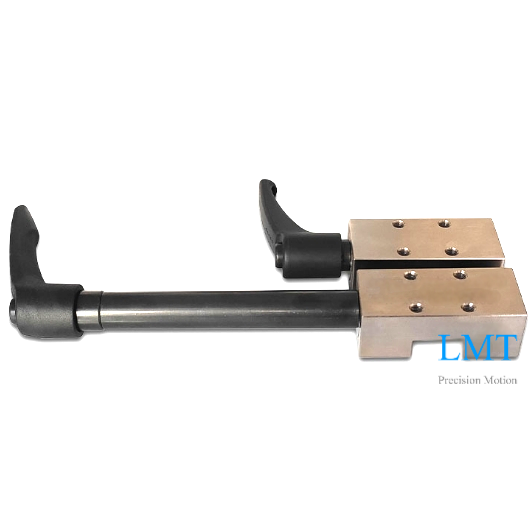

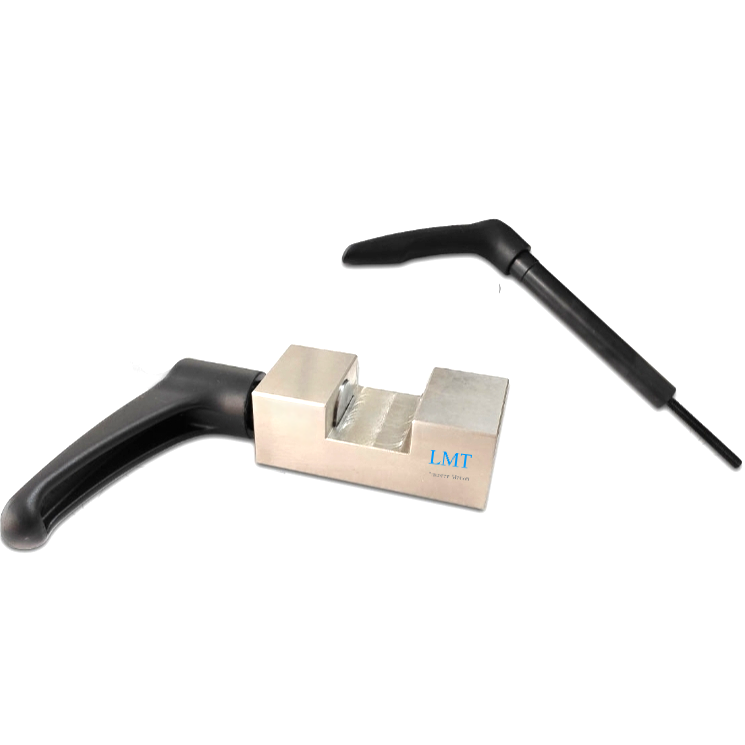

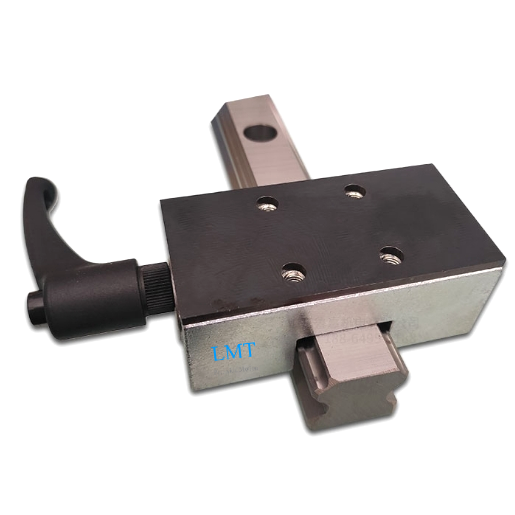

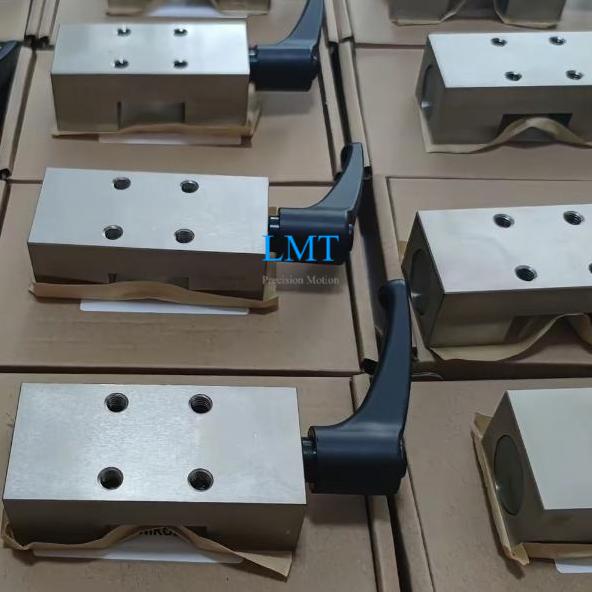

Linear Guide Rail Positioning Clamp Pictures
The Manual Rail Clamp is a heavy-duty linear guide positioning stop block designed for precise locking and secure holding of 20mm linear guide systems.Engineered for compatibility with industry-standard linear rails(including HIWIN,THK,Bosch Rexroth,and IKO profiles),this clamp delivers instant manual clamping force to immobilize carriages during machining,assembly,or calibration processes.Its rigid construction ensures zero slippage under high loads,making it ideal for CNC machines,automation equipment,and precision workstations.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 20mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Manual Rail Clamp Key Advantages:
The manual rail clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
It excels as a mechanical stop block or brake,holding positions firmly.Its compact design minimizes space requirements,ideal for tight installations.
Simple installation reduces setup time and cost,while robust 1200N clamping force ensures secure holding for demanding applications.
Linear Guide Rail Positioning Clamp Pictures
