Lead time:Large stock inventory

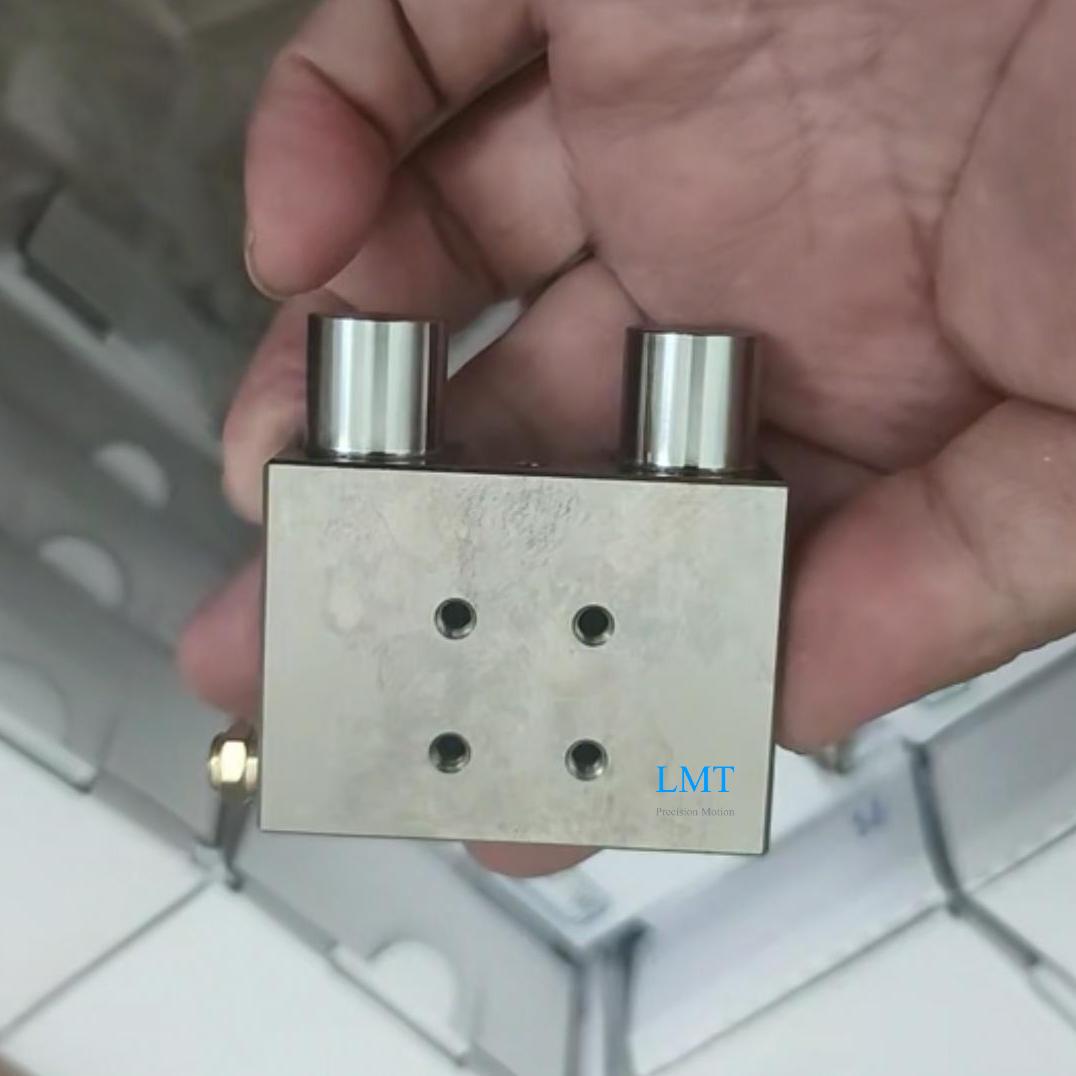

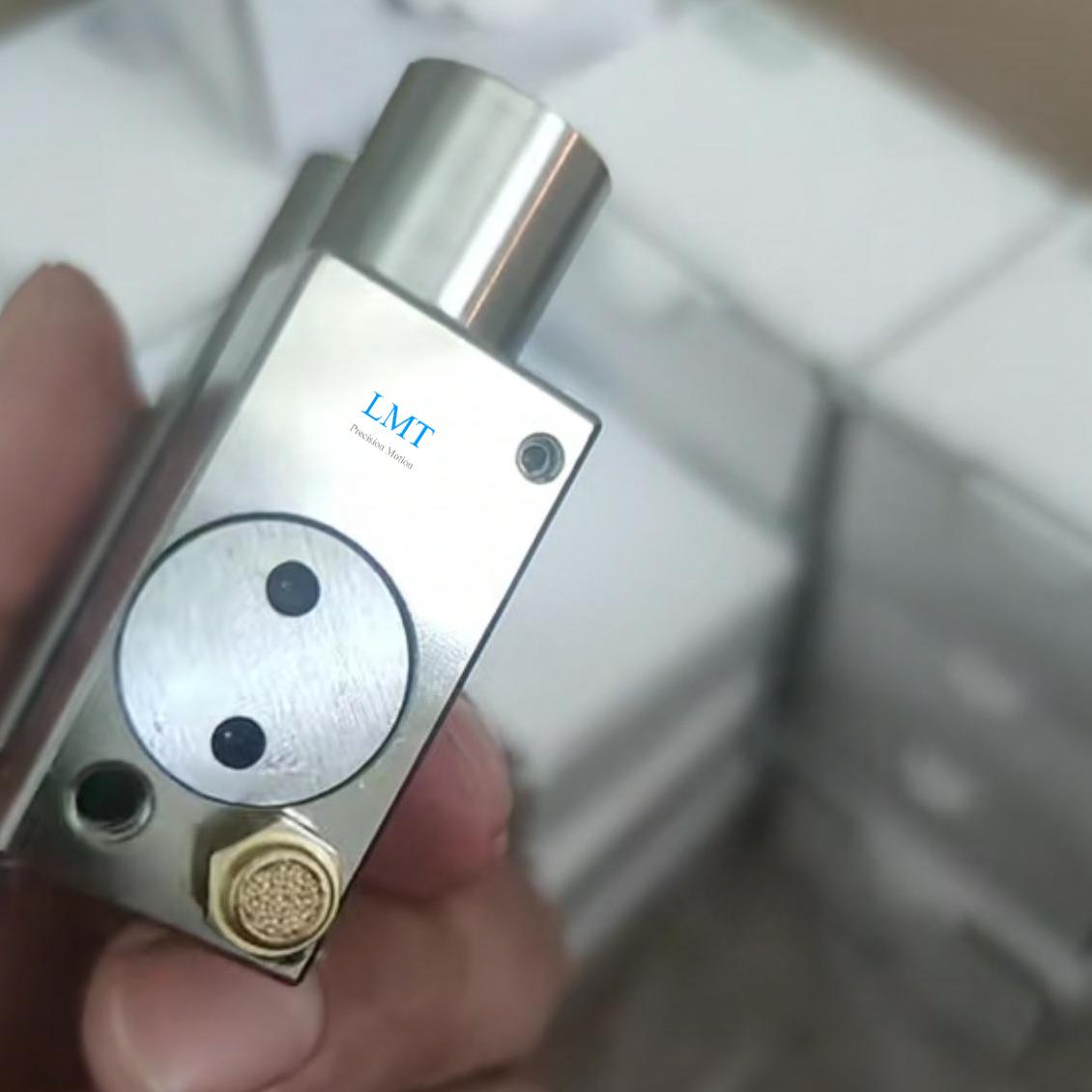

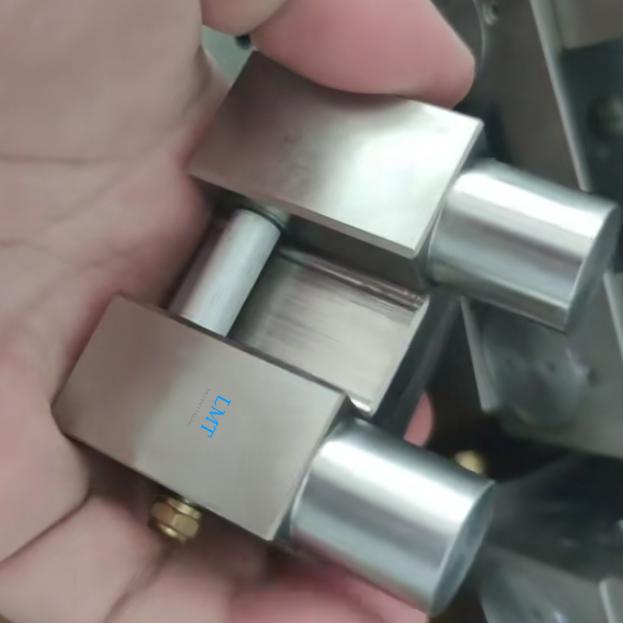

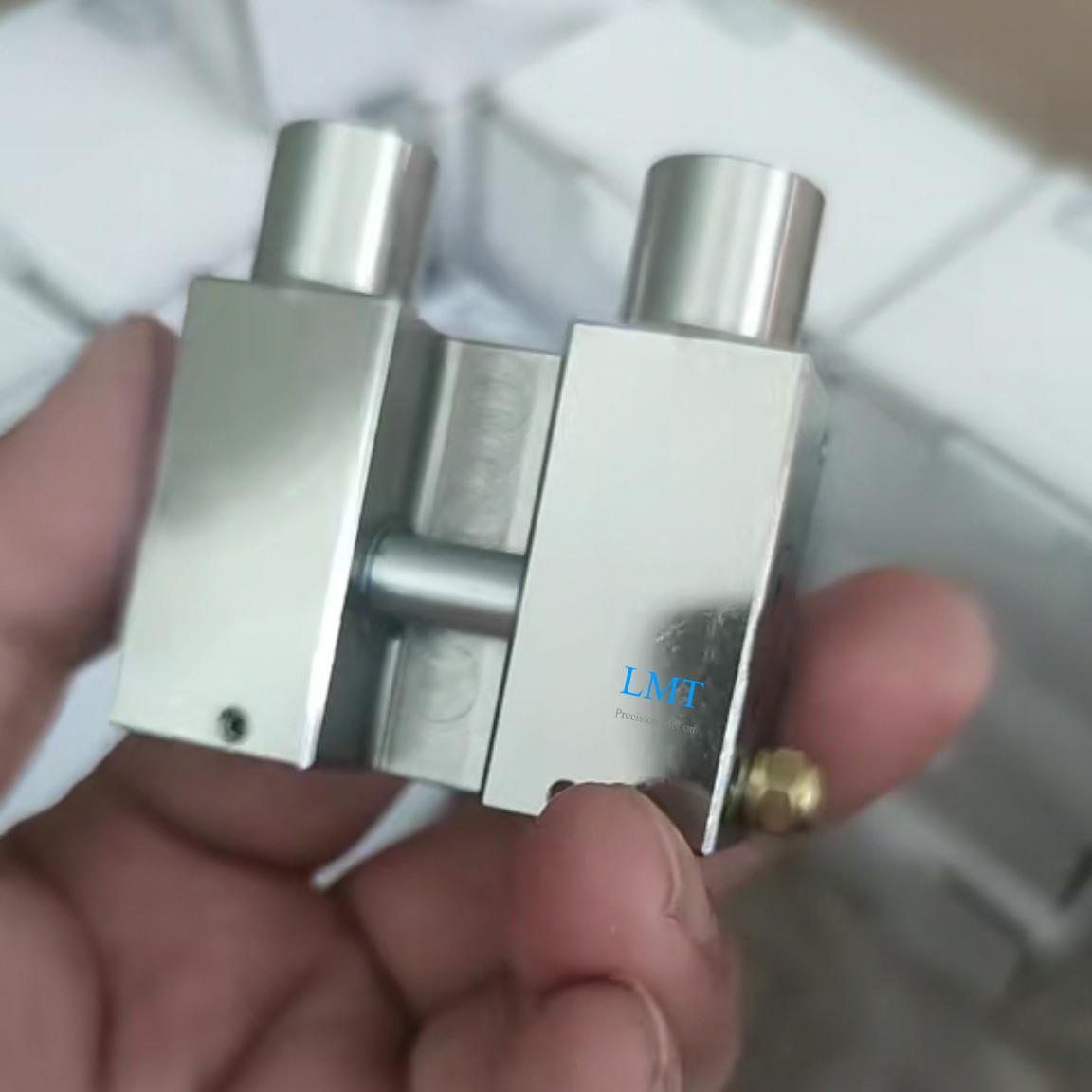

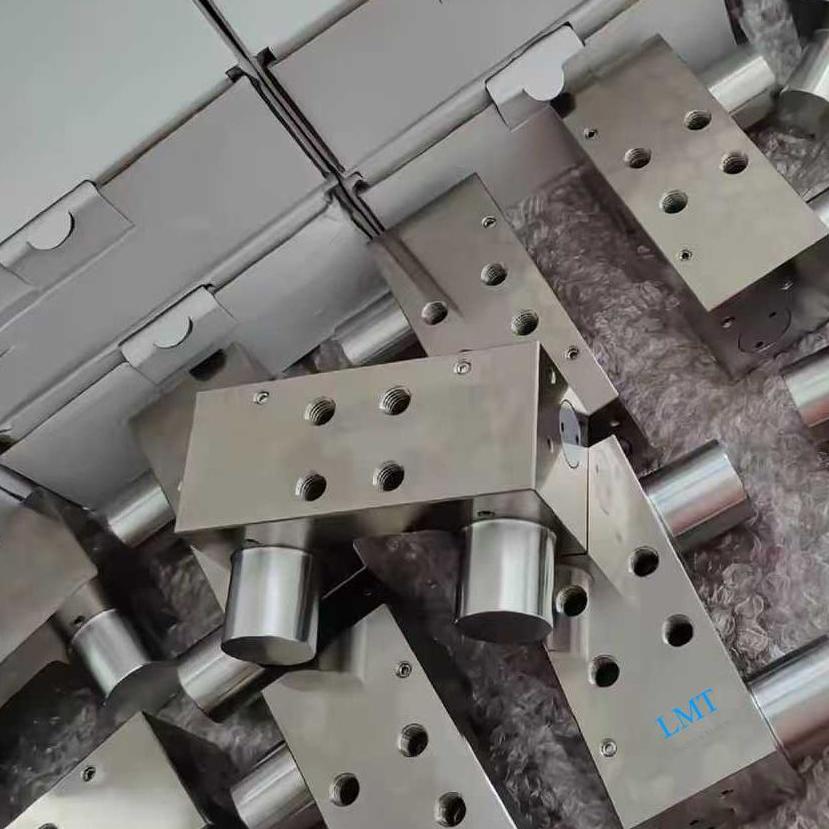

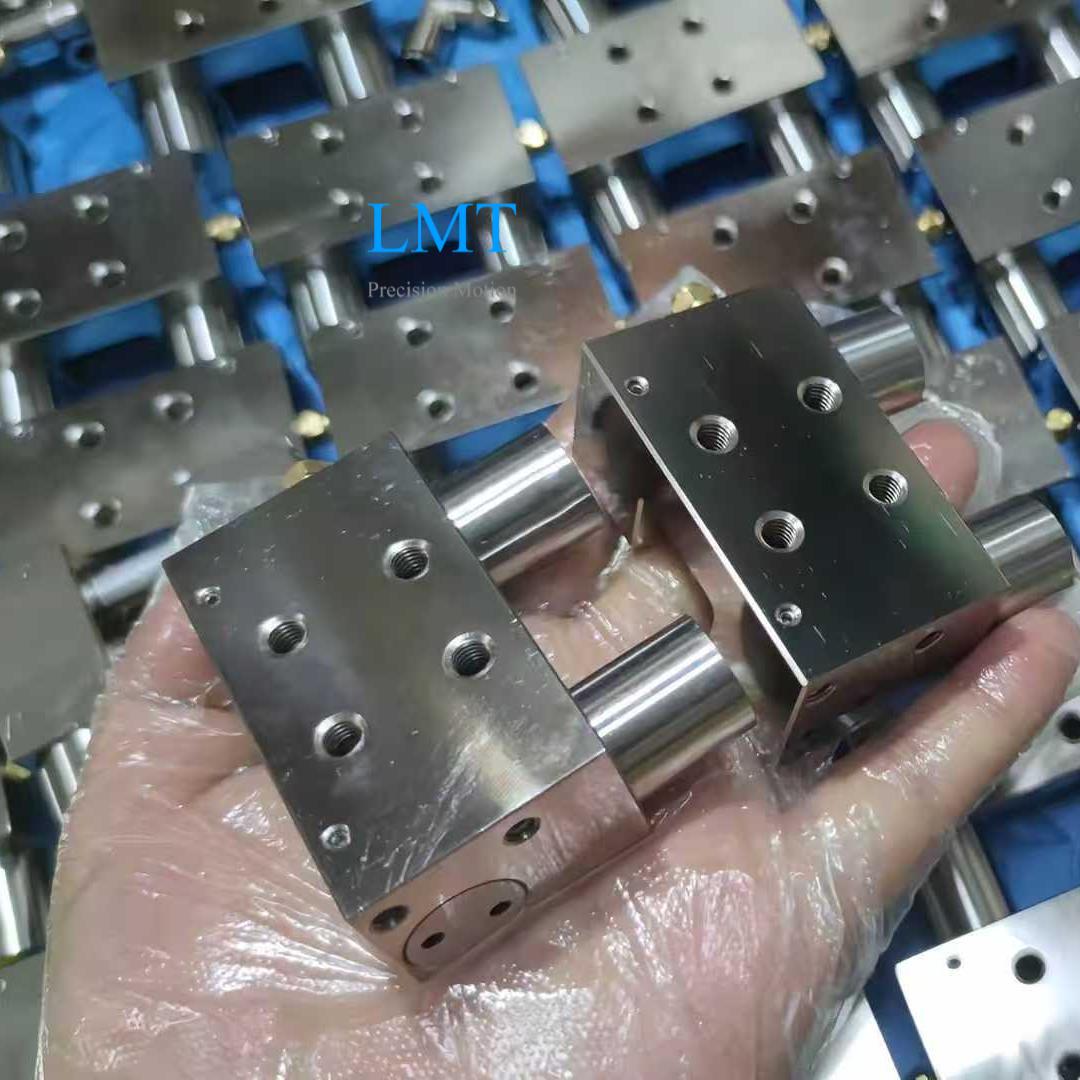

Ensure maximum safety and precision control with our pneumatic NC(Normally Closed)clamp.Its pneumatically actuated,spring-engaged design guarantees the clamp instantly grips your 20mm linear rail,bringing moving components to a complete and secure stop to prevent damage,injury,or uncontrolled motion.Beyond emergencies,it actively enhances rail rigidity during high-force operations like machining or pressing,minimizing deflection and improving accuracy.
Specification:
| Clamp Types | Pneumatic normally close |
| Linear rail sizes | 20mm |
| Standard type rated holding force(N) | Standard connection 600N,pressurized connection 1300N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Linear Rail Pneumatic Clamp Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles
Broad Range of Products:For all common profile rail guides
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the linear guide clamp main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close (NC) Clamp Video
