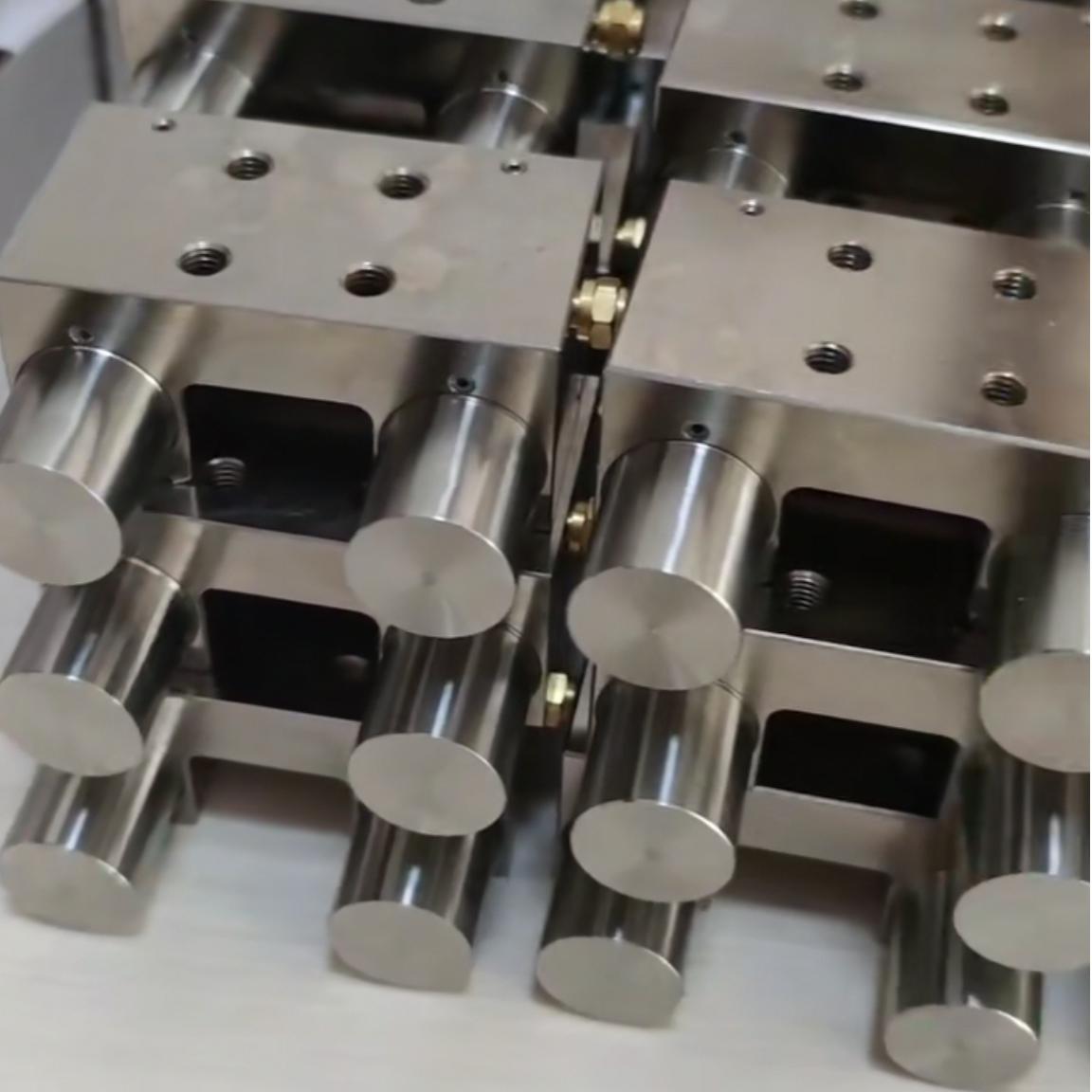

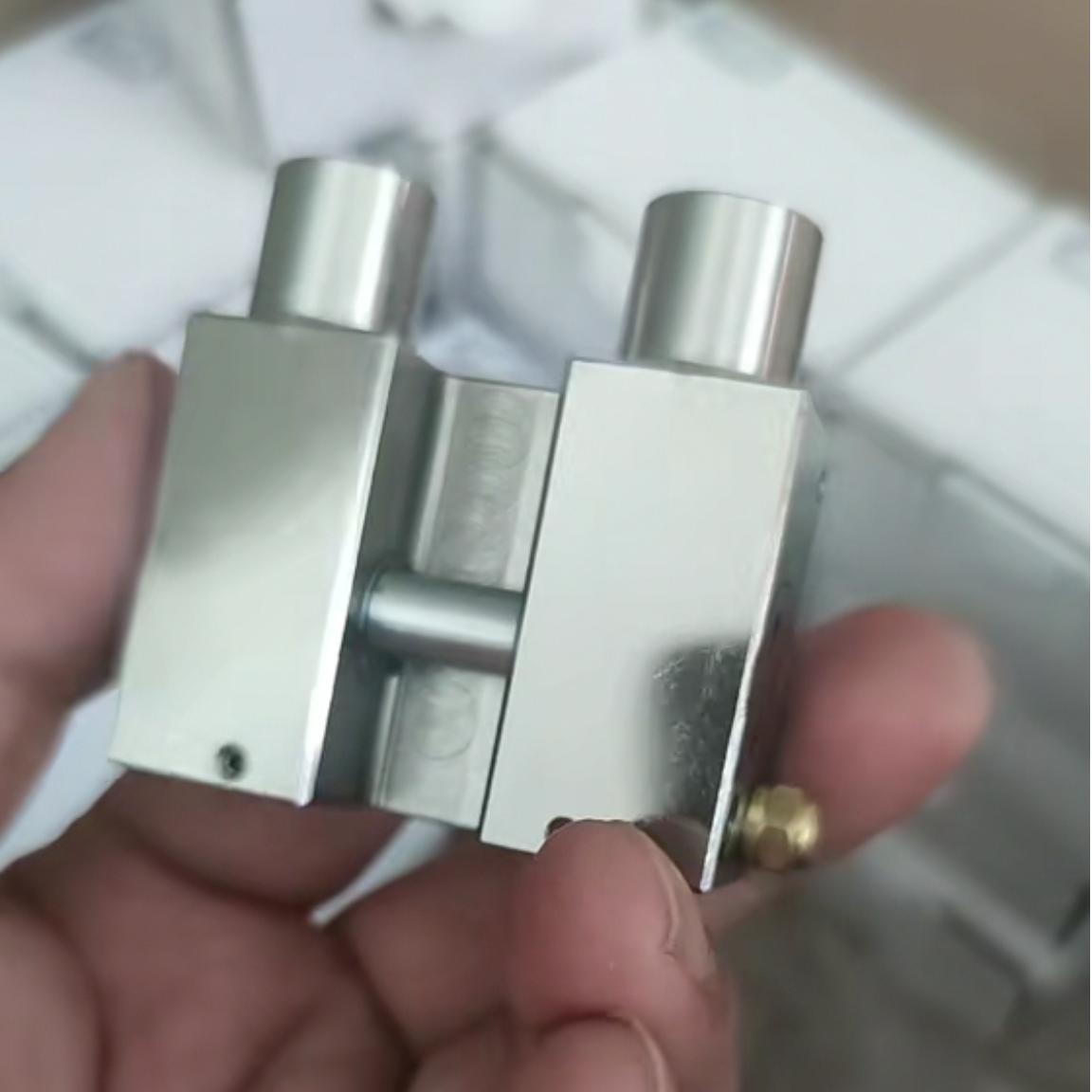

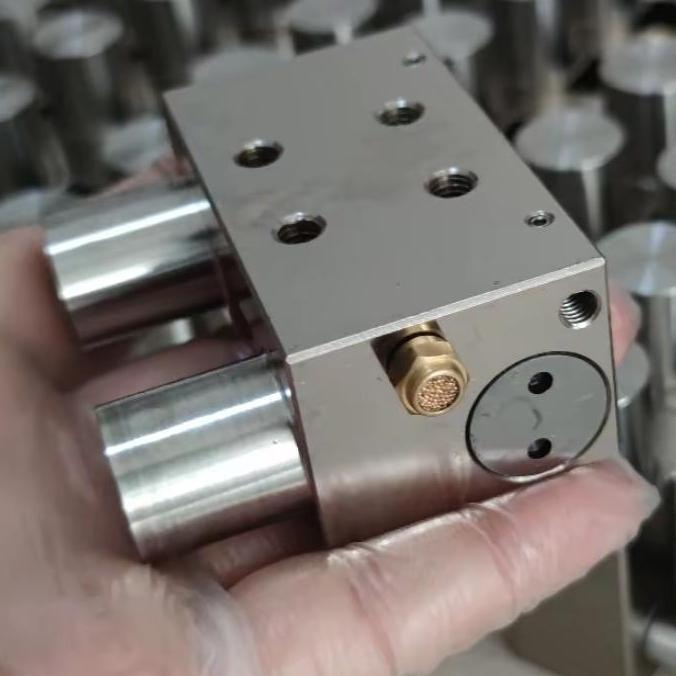

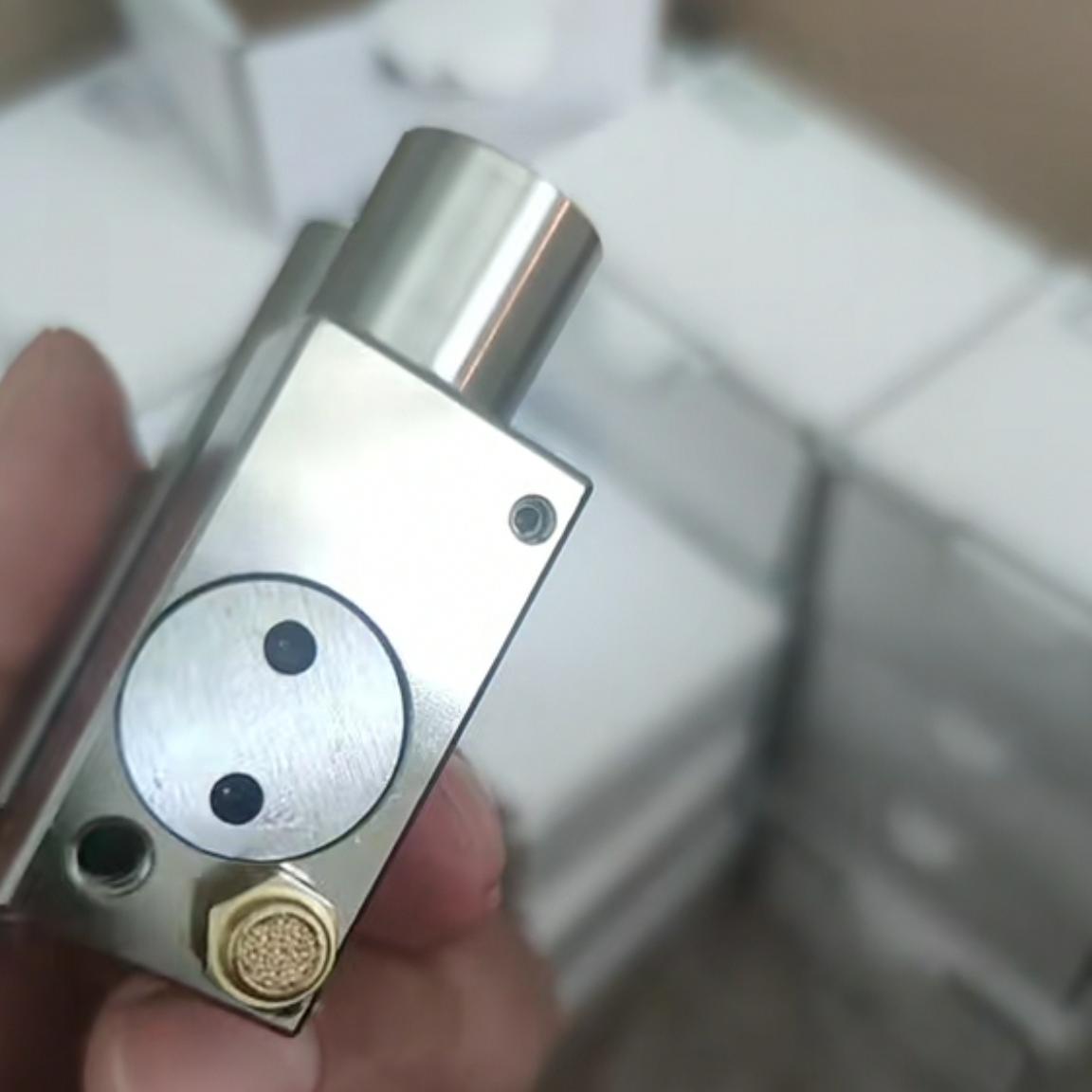

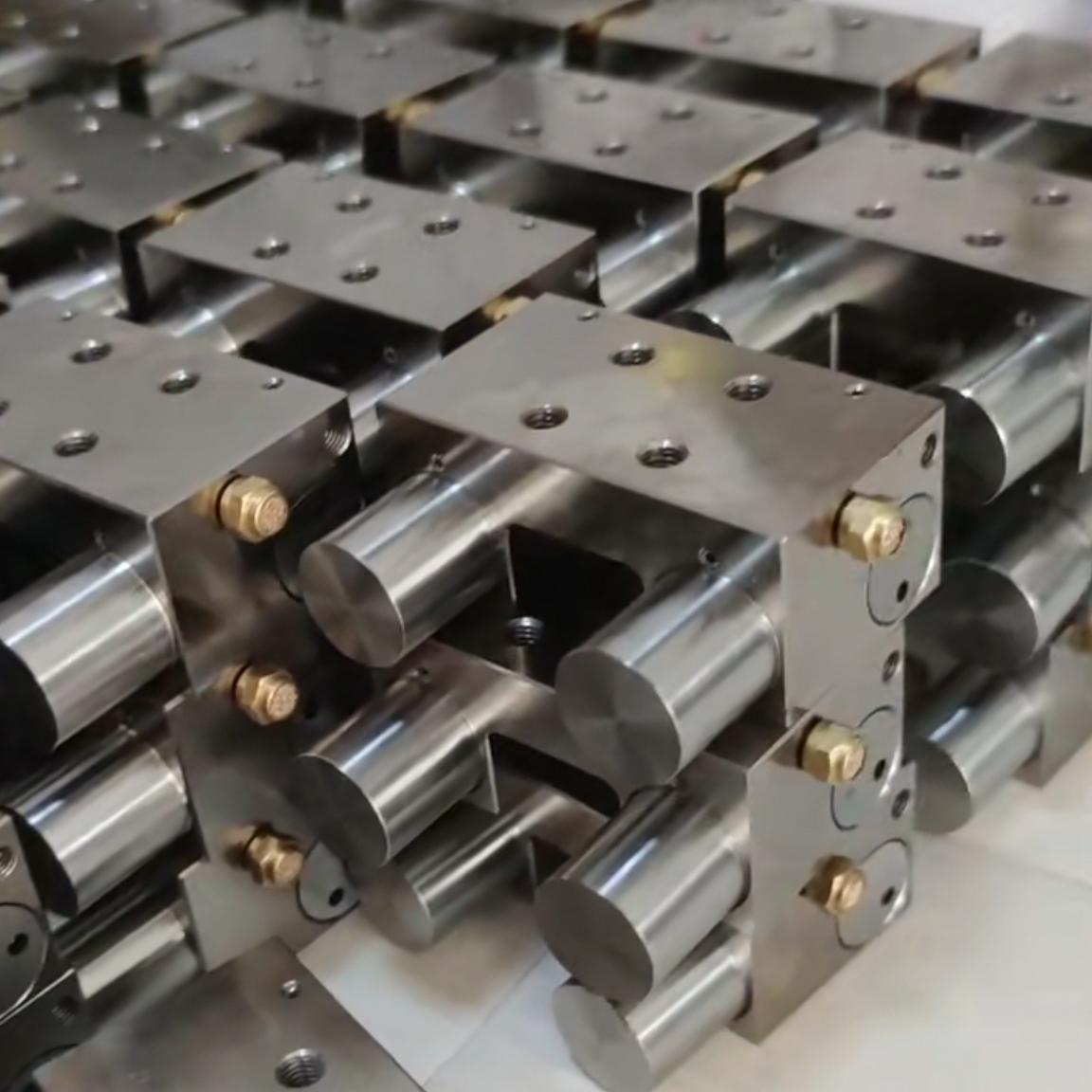

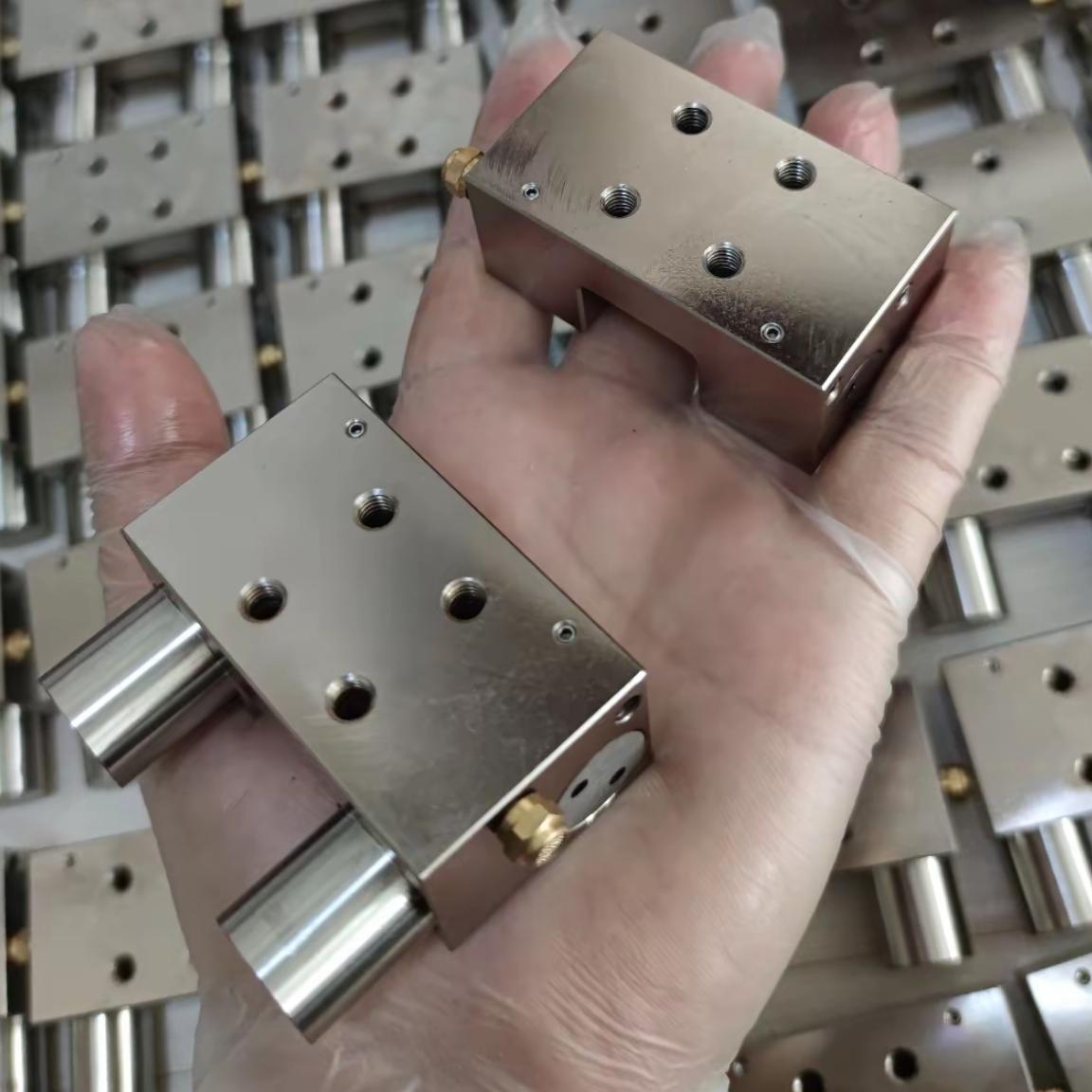

25mm Linear Rail Pneumatic NC Replace MKS Clamping Braking Element
Upgrade your machinery with our high-performance pneumatic normally closed(NC)clamping and braking element,designed as a direct replacement for popular MKS series clamps on 25mm linear guides.This essential clamping and braking element provides reliable,secure locking force.
Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 25mm |
| Standard type rated holding force(N) | Standard connection 750N,pressurized connection 1400N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Linear Guide Locking Clamp Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close Clamp Braking Video
