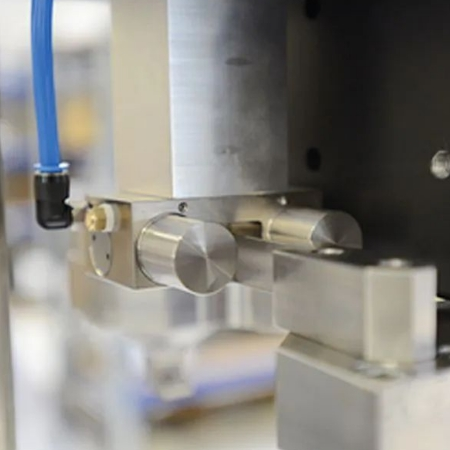

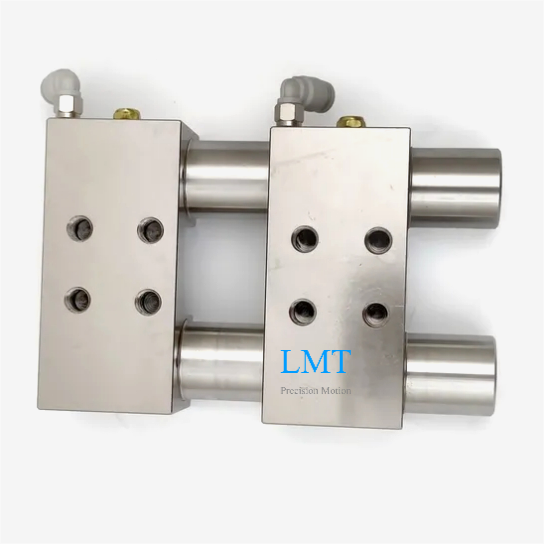

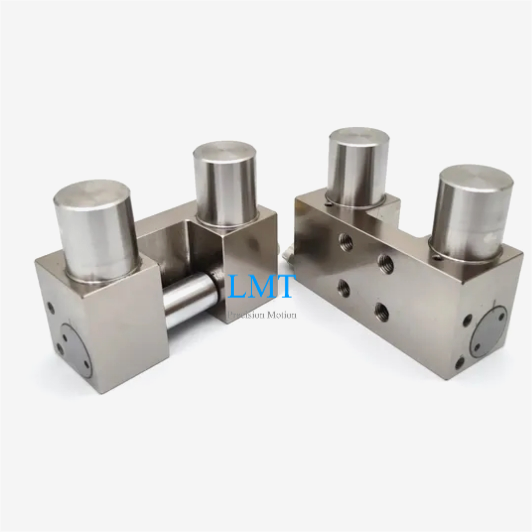

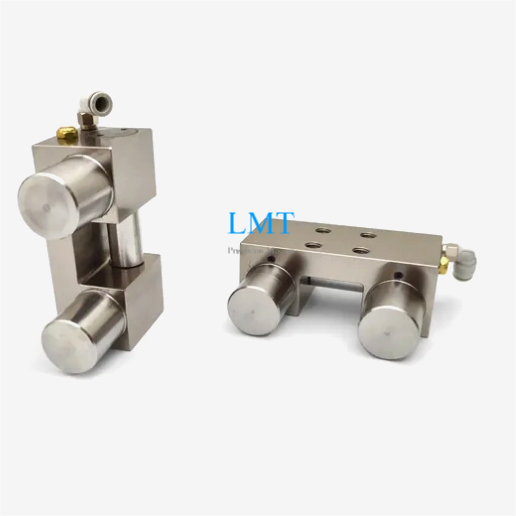

Ensure absolute workpiece stability and safety in high precision applications with our robust pneumatic Normally Closed(NC)rail clamp system.Engineered specifically for HIWIN 25mm EGH25CA and EGW25CA linear guides,this essential clamp delivers immediate,fail-safe braking force upon air loss,locking guides instantly.
Specification:
| Clamp types | Pneumatic normally close |
| Linear rail sizes | 25mm |
| Standard type rated holding force(N) | Standard connection 750N,pressurized connection 1400N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
EGH25CA EGW25CA Linear Rail Pneumatic NC Clamp Advantages:

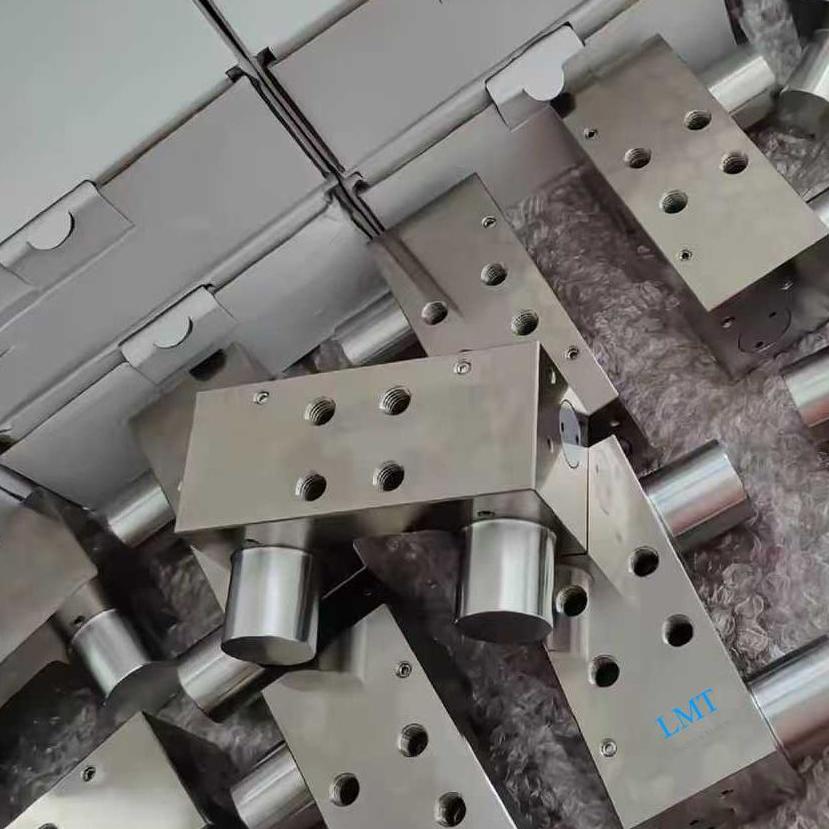

Lead time:Large stock inventory.
Cost-effective: 25%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic NC Linear Guide Braking Video
Experience enhanced machining accuracy,reduced workpiece deformation,increased productivity,and guaranteed operational security.This indispensable rail clamp provides the reliable holding power modern manufacturing demands.
