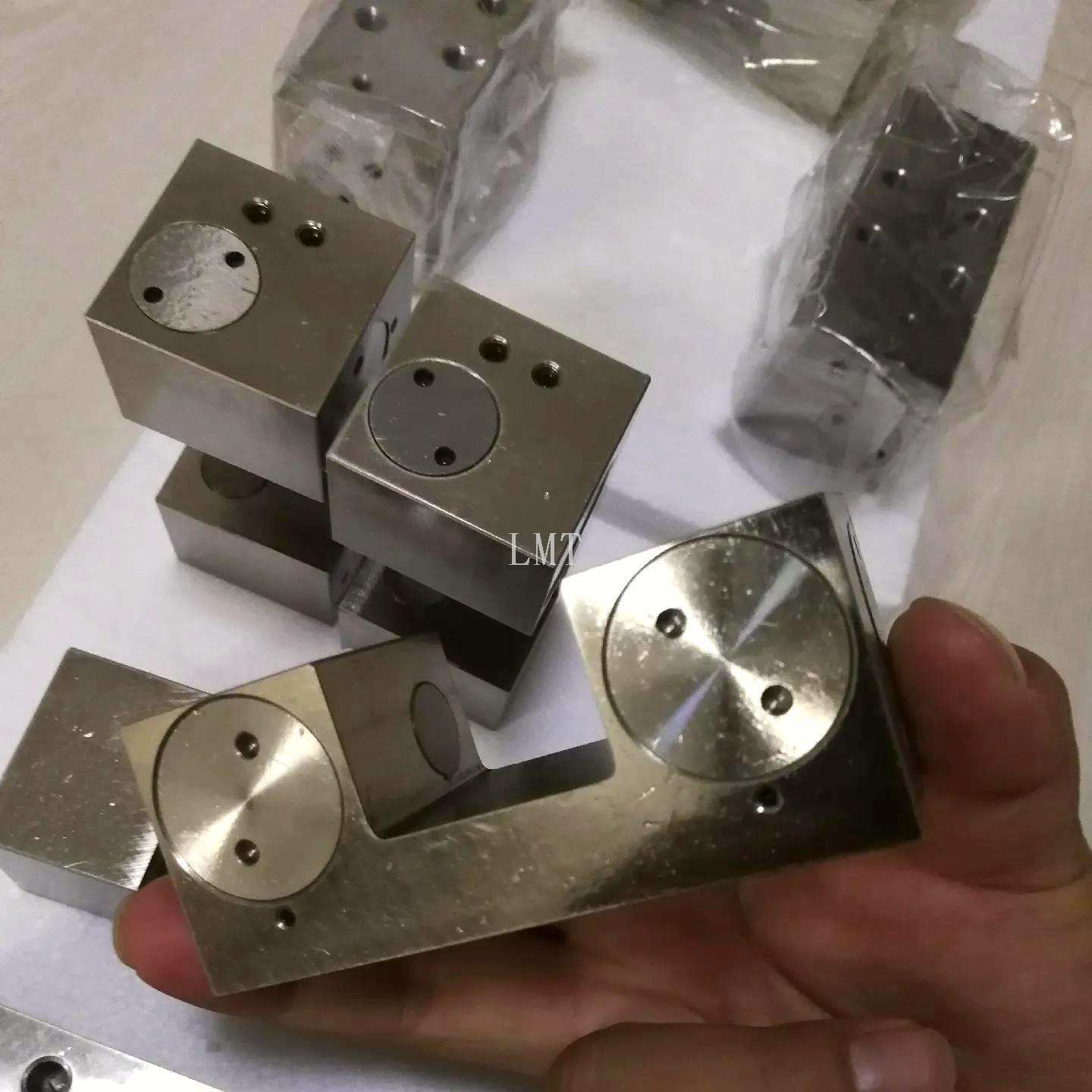

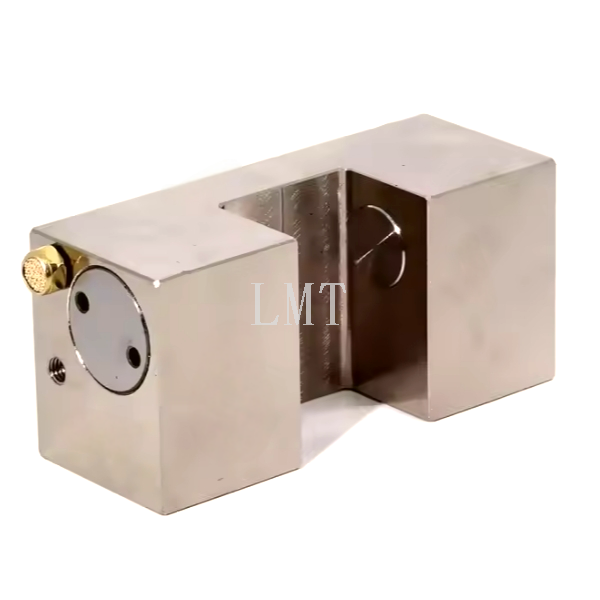

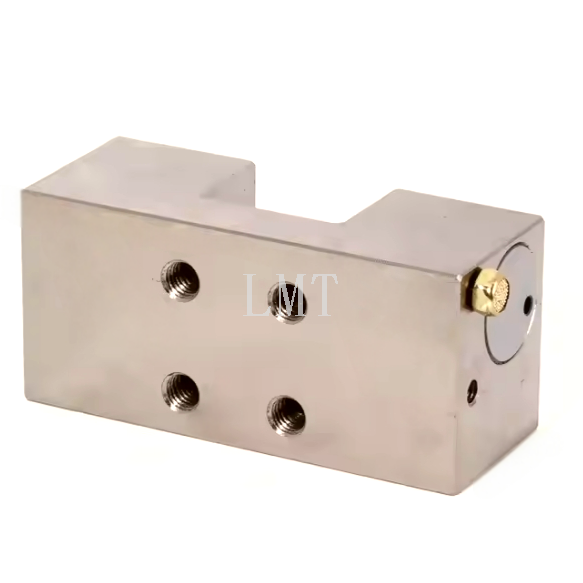

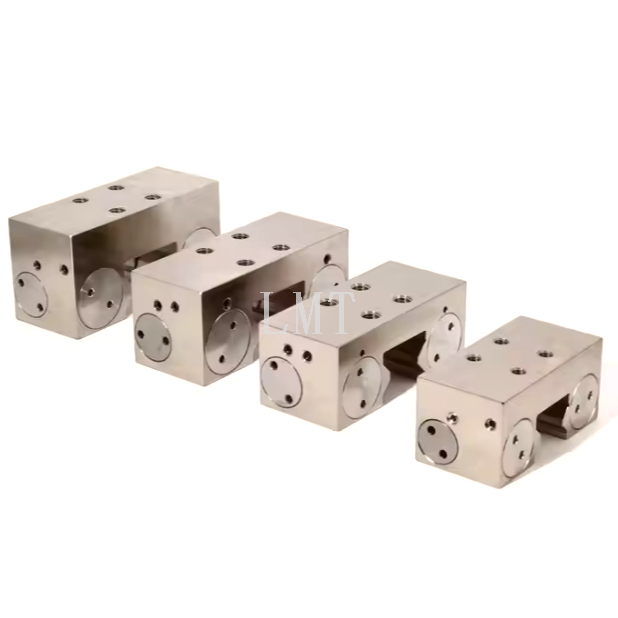

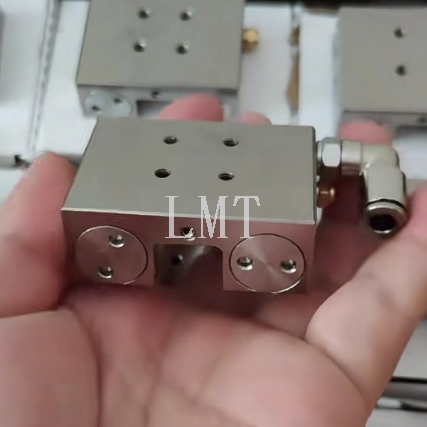

Replace MK2501A Pneumatic Clamping Braking Element for 25mm Linear Guide
Elevate your automation with our manual clamping and braking element,the high-performance upgrade to the MK2501A for 25mm linear guides.Pneumatic actuation enables rapid,secure clamping to eliminate vibration and drift during high-precision operations.Replace your MK2501A clamp brake with our superior pneumatic solution—order now and optimize performance!
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Linear Guide Clamping and Braking Element Aadvantages
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK2501A Clamping Element.
High durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
