Tool-free opening and closing:By turning the clamping lever.
Maintenance free:Up to 50,000 static clamping cycles.
Lead time:Large inventory in stock
This manual clamping device is specifically designed for 25mm linear guideways.It provides a simple,reliable,and cost-effective solution for securely fixing slides or carriages along the rail.Ideal for applications requiring fixed positioning,vibration damping,or as a manual mechanical stop on 25mm linear guide systems.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 25mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Linear Guide Manual Clamp Key Advantages:
The manual braking is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Acts as a robust limited block,firmly locking components like slides or tooling plates at precise points on the guideway.
The manual clamp mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.

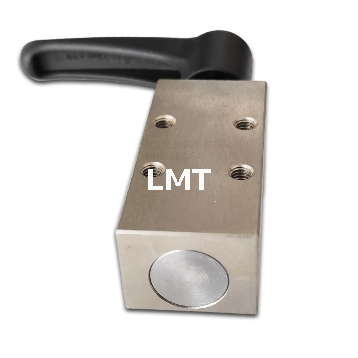

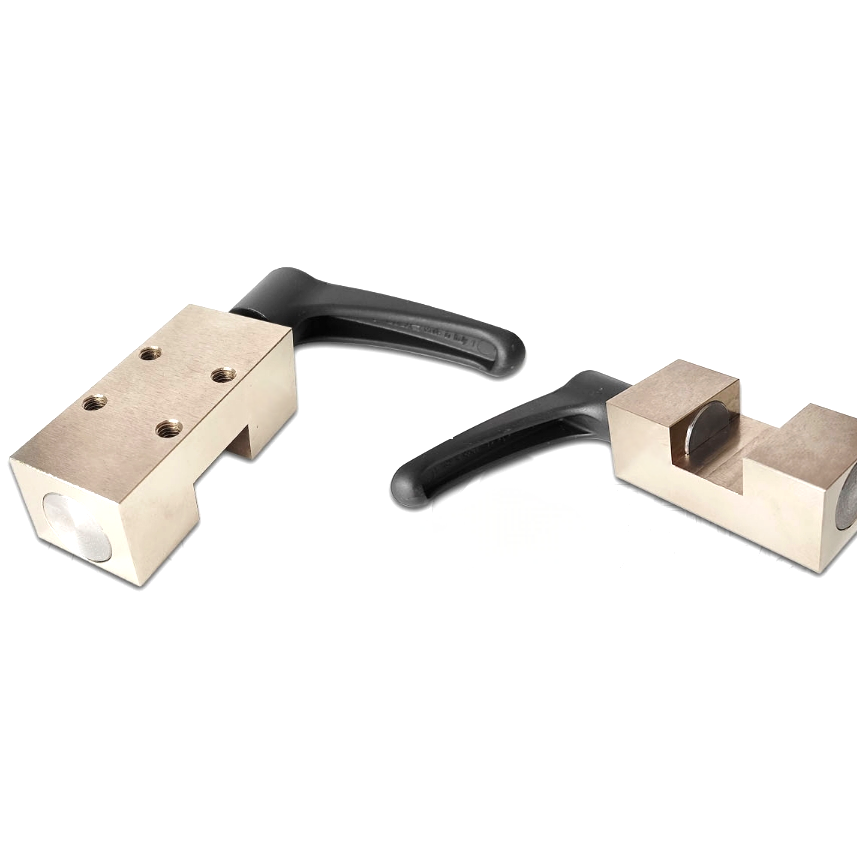

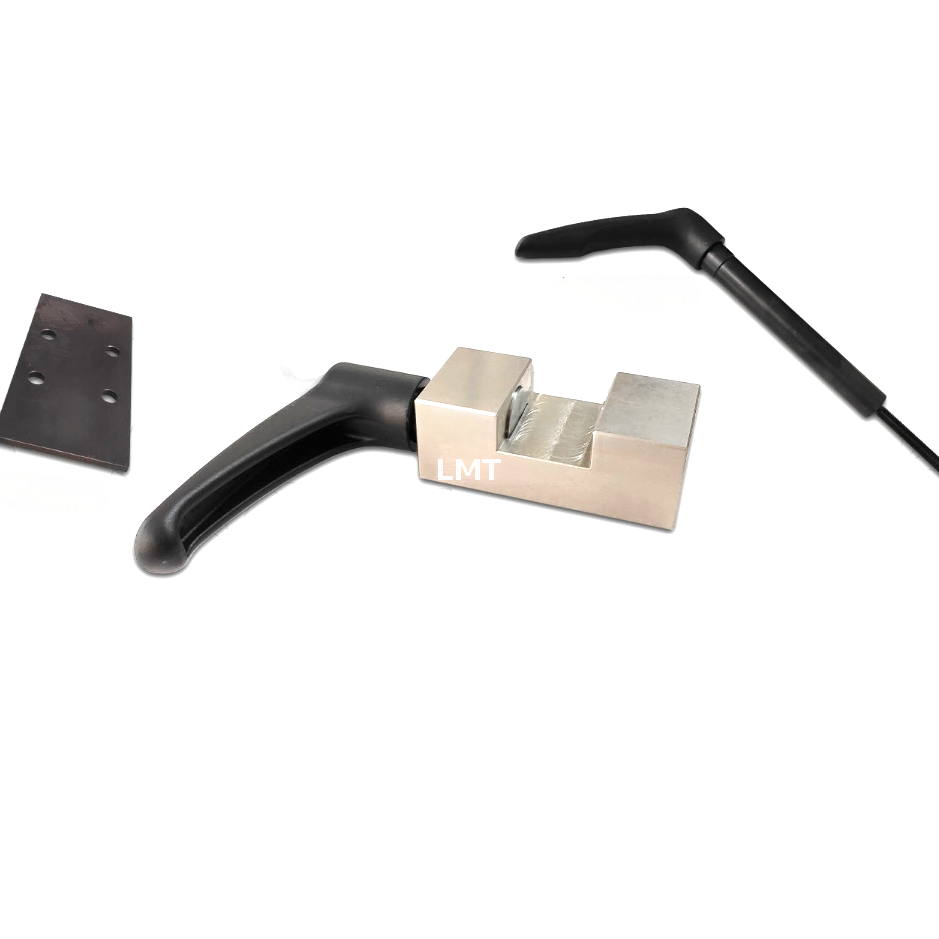

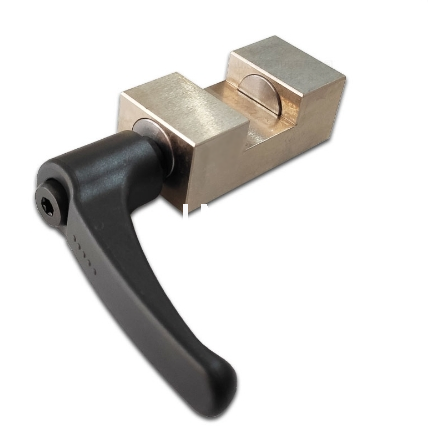

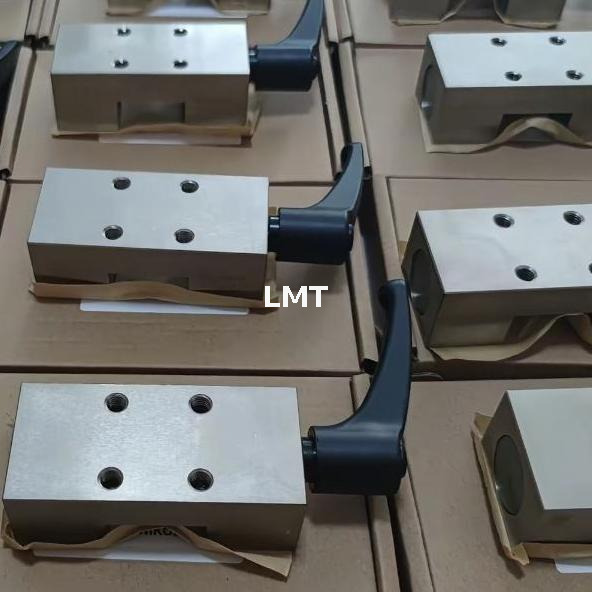

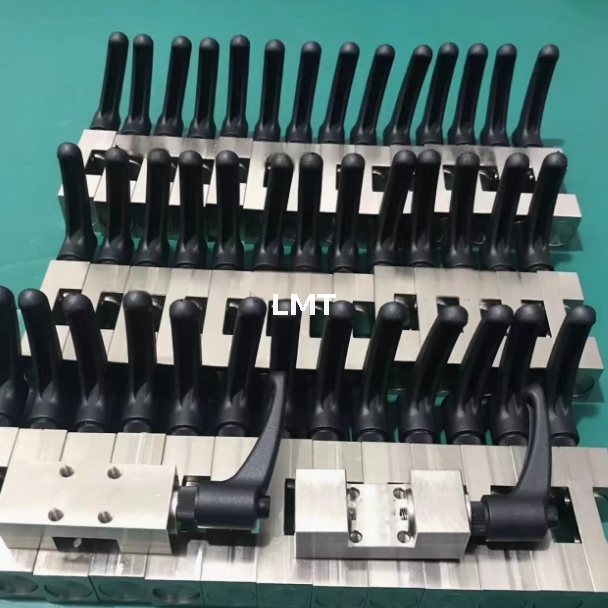

Linear Guide Rail Manual Braking Pictures
This manual clamping device is specifically designed for 25mm linear guideways.It provides a simple,reliable,and cost-effective solution for securely fixing slides or carriages along the rail.Ideal for applications requiring fixed positioning,vibration damping,or as a manual mechanical stop on 25mm linear guide systems.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 25mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Linear Guide Manual Clamp Key Advantages:
The manual braking is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Acts as a robust limited block,firmly locking components like slides or tooling plates at precise points on the guideway.
The manual clamp mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.
Linear Guide Rail Manual Braking Pictures
