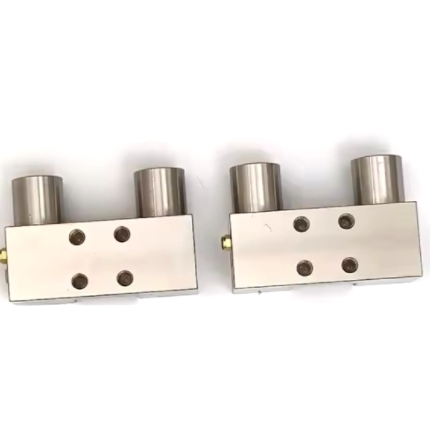

Pneumatic Replace MKS Series Locking Clamp for 25mm Linear Guide
This linear guide locking clamp is suitable for 25mm size linear guides.The clamp locking automatically clamps when the air is off and releases when the air is on.A perfect replacement for the popular MKS series pneumatic normally closed clamps.The stock of this clamp is sufficient and the price is highly competitive.
Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 25mm |
| Standard type rated holding force(N) | Standard connection 750N,pressurized connection 1400N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Linear Guide Locking Clamp Advantages:

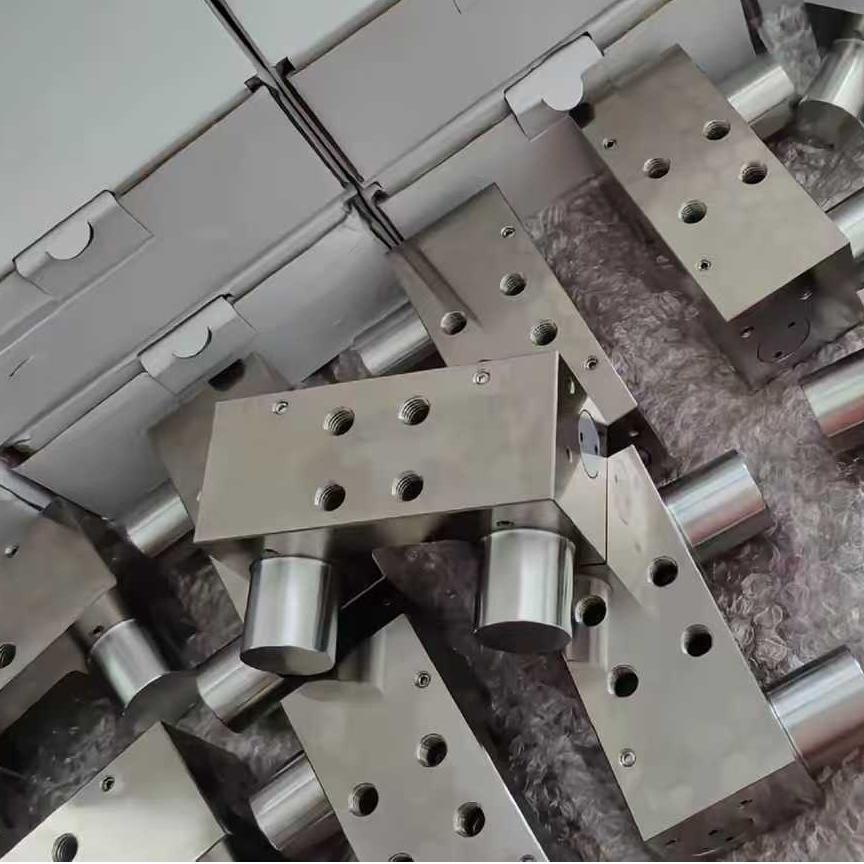

Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close Clamp Braking Video
