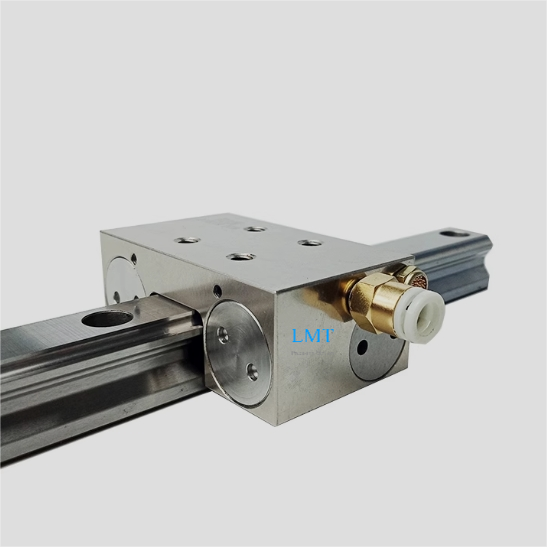

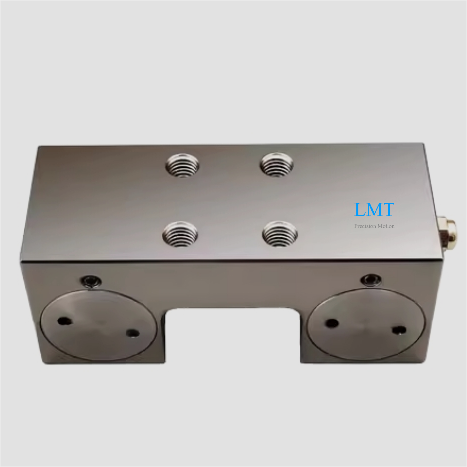

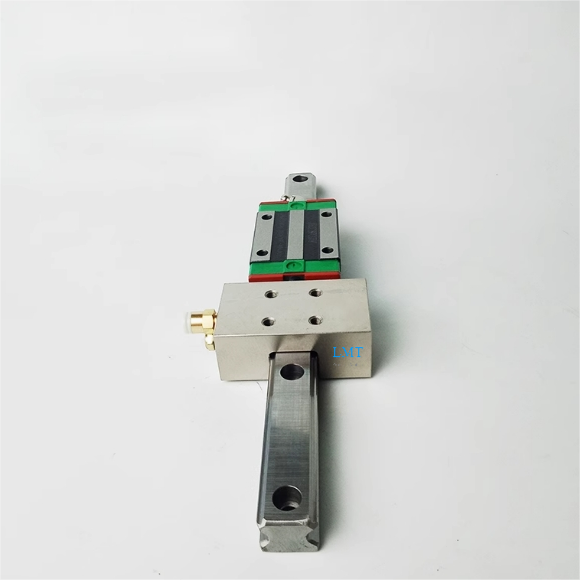

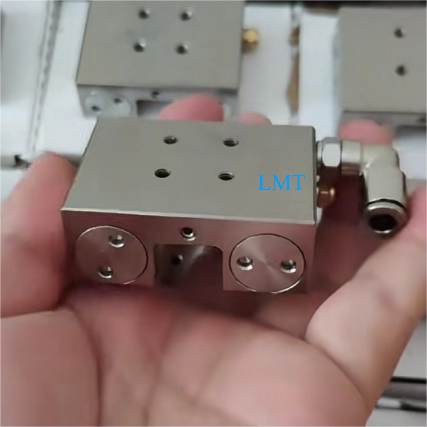

As a leading supplier,we provide reliable normally open air clamps for 25mm linear guide systems.Engineered for positive locking,vibration prevention,and enhanced rigidity,this pneumatic clamp stays open without air supply and clamps instantly when pressurized.Bulk inventory availability,and cost-effective pricing.Secure your systems today – order now for fast delivery!
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Normally Open Air Clamp Aadvantages
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK series pneumatic normally open clamp.
High durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Pneumatic Linear Guide Lock Clamp Video
As a leading supplier,we provide reliable normally open air clamps for 25mm linear guide systems.Engineered for positive locking,vibration prevention,and enhanced rigidity,this pneumatic clamp stays open without air supply and clamps instantly when pressurized.Bulk inventory availability,and cost-effective pricing.Secure your systems today – order now for fast delivery!
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Normally Open Air Clamp Aadvantages
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK series pneumatic normally open clamp.
High durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
