Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
This clamp provides manual,tool-free locking for linear guide.Simply rotate the handle to securely clamp or release the rail, instantly enhancing system rigidity and preventing vibration during operation.The durable nickel finish offers excellent corrosion and rust resistance.Compact and universal,it's compatible with major 25mm linear rail brands(HIWIN,THK,PMI,NSK,WON).
Technical Data:
| Clamp types | Manual |
| Linear guide size | 25mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Manual Rail Clamp Key Advantages:
The manual clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.

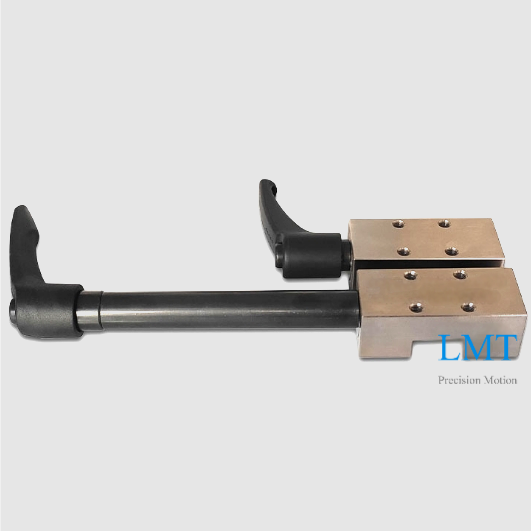

Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The 25mm manual rail clamp ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
25mm Linear Guide Sliders Clamp Applications:
CNC Machine Tooling: Workpiece fixturing on linear guideways;Auxiliary axis reinforcement.
Precision Measurement Systems:CMM track locking;Optical alignment rail stabilization.
Automated Assembly Lines:Conveyor track position locking;Robotic end-effector rail fixation.
Material Handling Equipment:Transfer cart track braking;Overhead crane rail alignment.
Woodworking Machinery:Panel saw guide rail securing;Router track vibration control.
Semiconductor Manufacturing:Wafer handler rail stabilization;Cleanroom automation positioning.

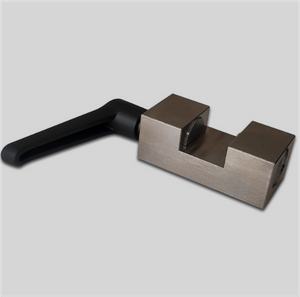

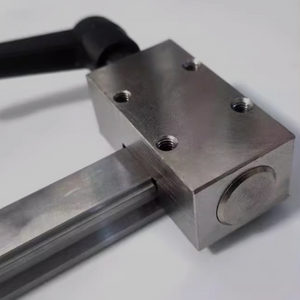

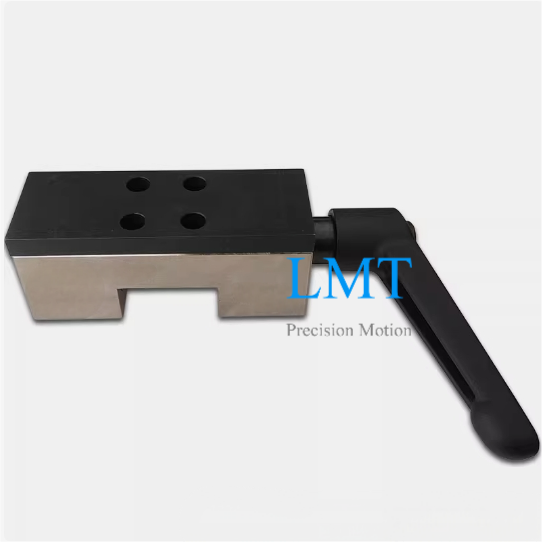

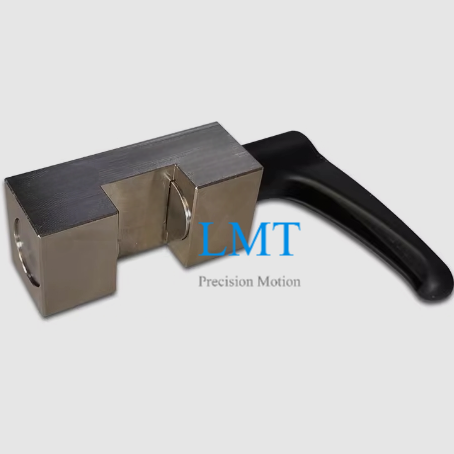

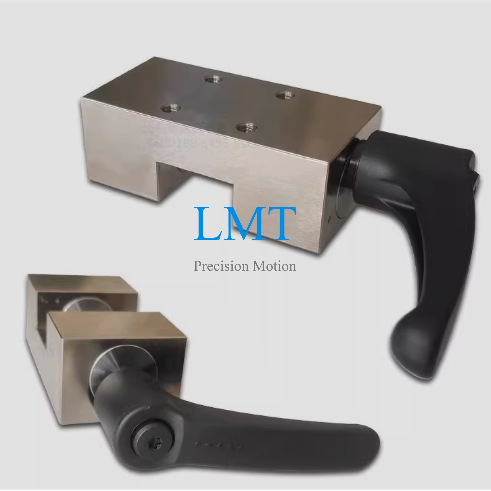

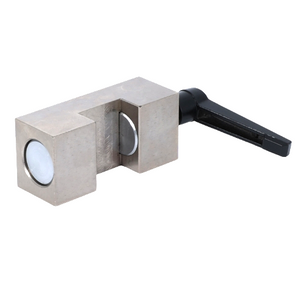

Linear Guide Manual Clamp Pictures:
