Tool-free opening and closing:By turning the clamping lever.
Maintenance free:Up to 50,000 static clamping cycles.
Lead time:Large inventory in stock
This linear rail manual locking clamping device,designed primarily for 15mm linear guides,serves as a direct and cost-effective replacement for the popular HK1501A clamp.Secures sliding tables,enables precise positioning,prevents vibration,and functions as a reliable mechanical stop.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 15mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HK1501A Locking Clamping Replacement Parts Key Advantages:
Broad Range of Products:The locking clamp is suitable for all common profile rail guides.
Space-Saving Design: Compact construction minimizes footprint,ideal for installations with limited space.
360° Adjustable Handle: Freely position the handle for optimal accessibility and operation in any orientation.
Reduced Ownership Cost: Lowers both initial equipment setup and long-term maintenance expenses.
High Clamping Force: This linear rail locking clamp delivers up to 2000N max clamping force for demanding industrial applications.
Simple & Reliable Installation:Streamlined design significantly reduces installation complexity and time for personnel.

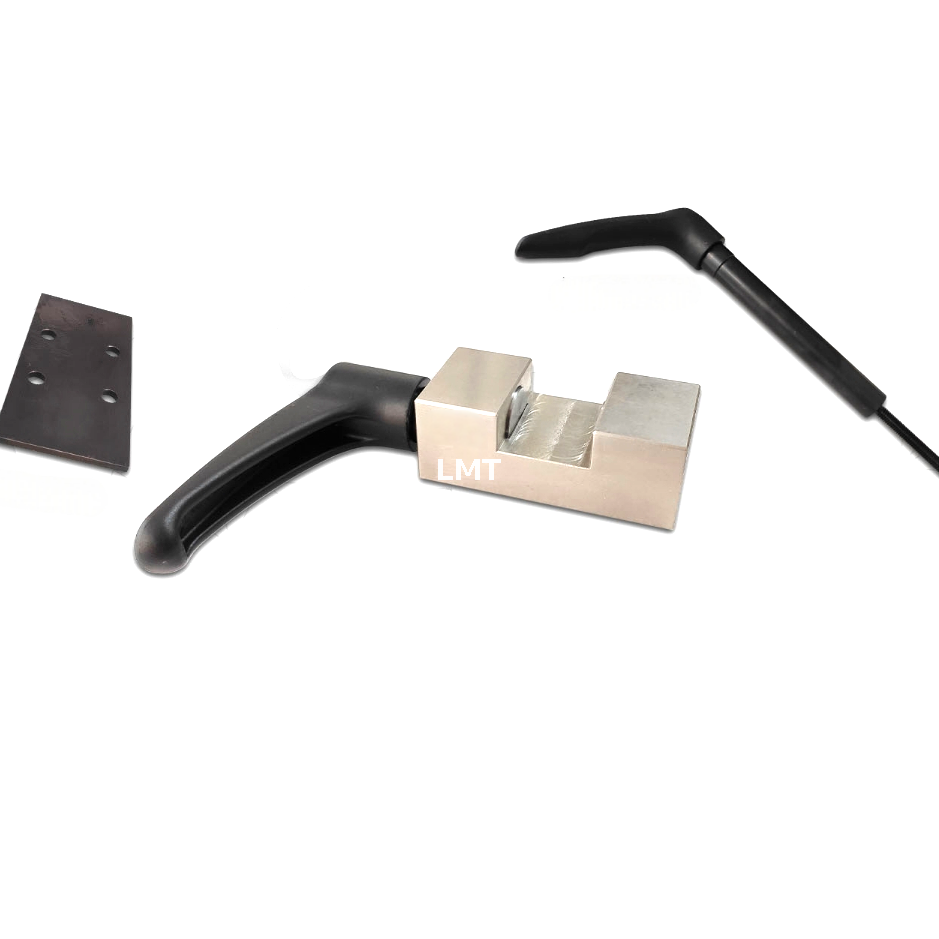

Handle Options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.

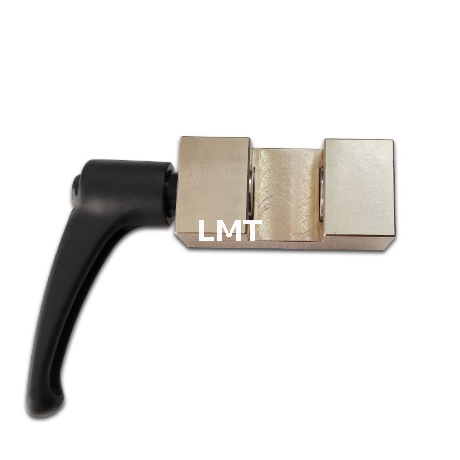

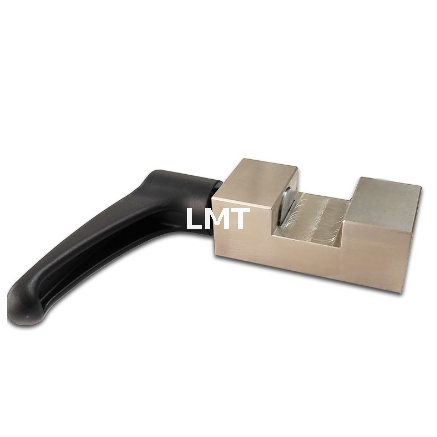

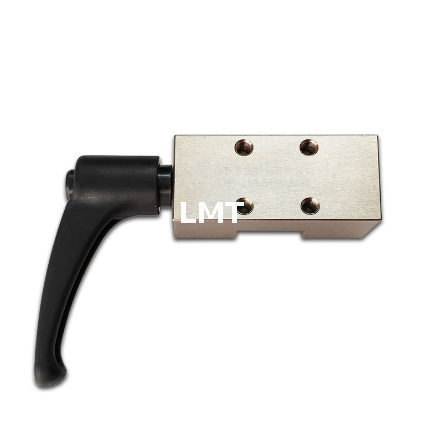

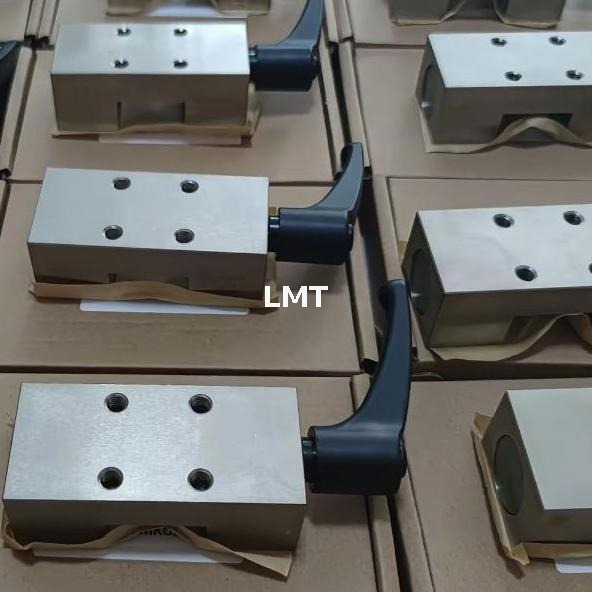

HK1501A Clamp Replacement Part Pictures
