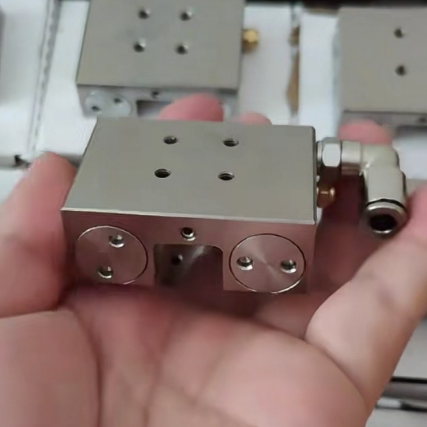

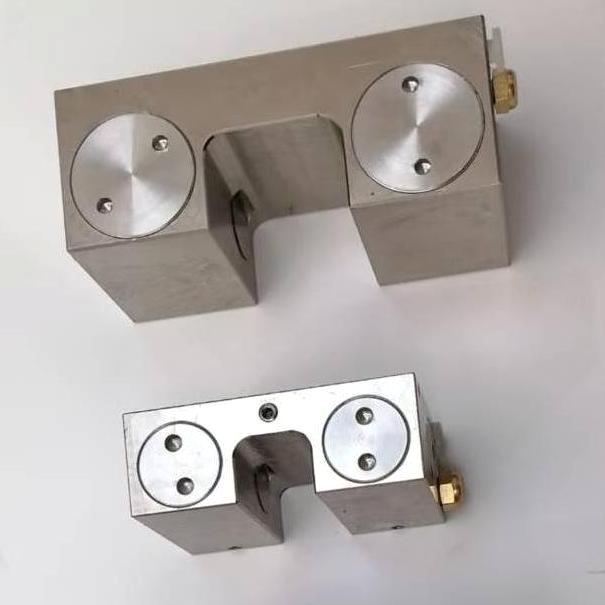

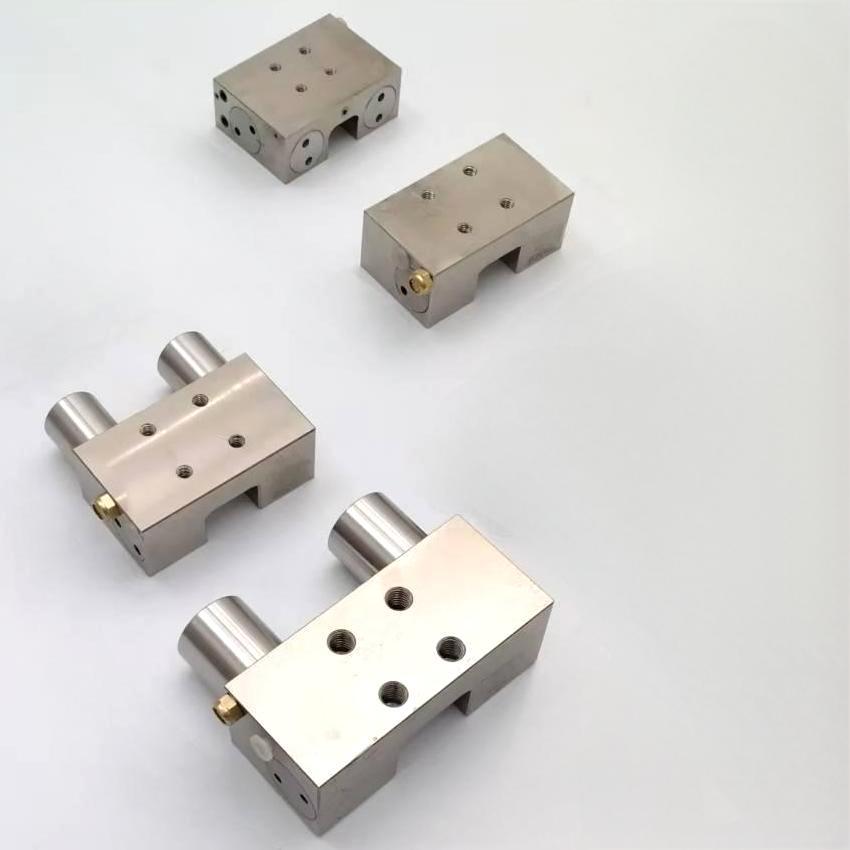

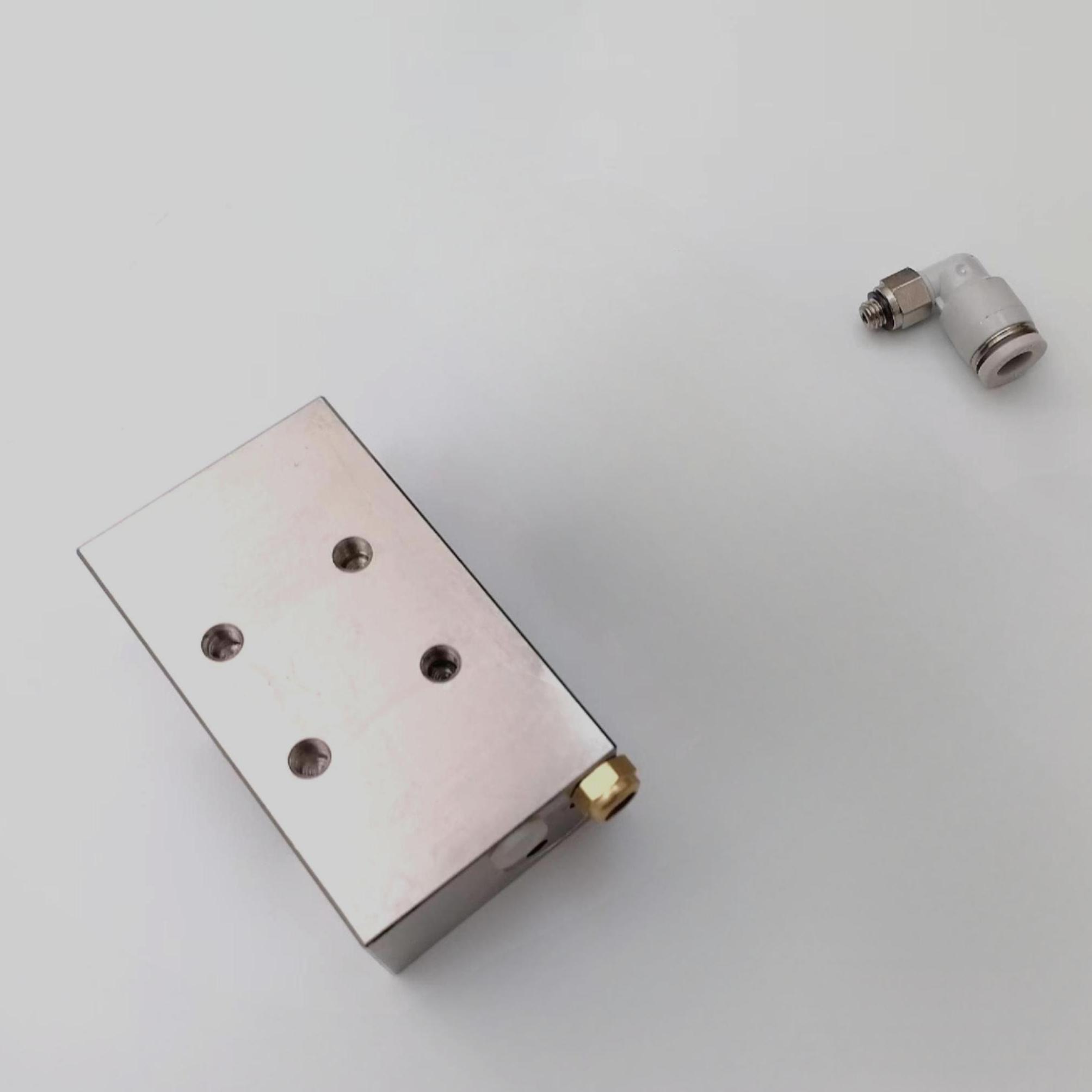

Pneumatic Normally Open Clamping Braking Element for 15mm Linear Guide
This clamping and braking element is specifically designed for use with 15mm linear guides.It operates as a normally open device,meaning it remains in the released state when no air pressure is applied and securely clamps/brakes when air pressure is supplied.We offer significant stock availability of this clamping and braking element,ensuring fast delivery and highly competitive pricing.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 650N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
15mm Linear Guide Clamping Braking Element Advantages:
Fast delivery within 3 days.
Help you save 35% of the cost.
High Durability,up to 5 million static clamping cycles.
Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamping element.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
