Replace MK1501A Pneumatic Clamping Braking Element for 15mm Linear Rail
Enhance your 15mm linear rail system's rigidity and precision with our high-performance pneumatic clamping and braking element.Designed as a direct,reliable replacement for the popular MK1501A clamp,this pneumatic normally-open clamp provides robust position locking for linear guides.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 15mm |
| Rated holding force(N) | 650N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |

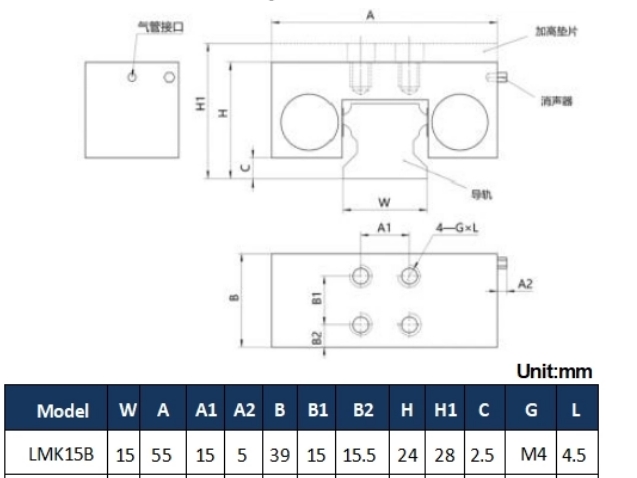

| 2D and 3D drawing | Available |
15mm Linear Guide Pneumatic Clamping Braking Element Advantages:
Fast delivery within 3 days.
Help you save 35% of the cost.
High Durability,up to 5 million static clamping cycles.
Direct replacement for Zimmer or NBK brand MK series pneumatic normally open clamping element.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Features a durable corrosion-resistant surface coating,safeguarding against rust and wear in challenging environments,ensuring extended operational life.
Securely locks 15mm linear rails in position,significantly improving system stability and machining/workpiece accuracy.
Pneumatic Normally Open Clamp Brake Product Video
