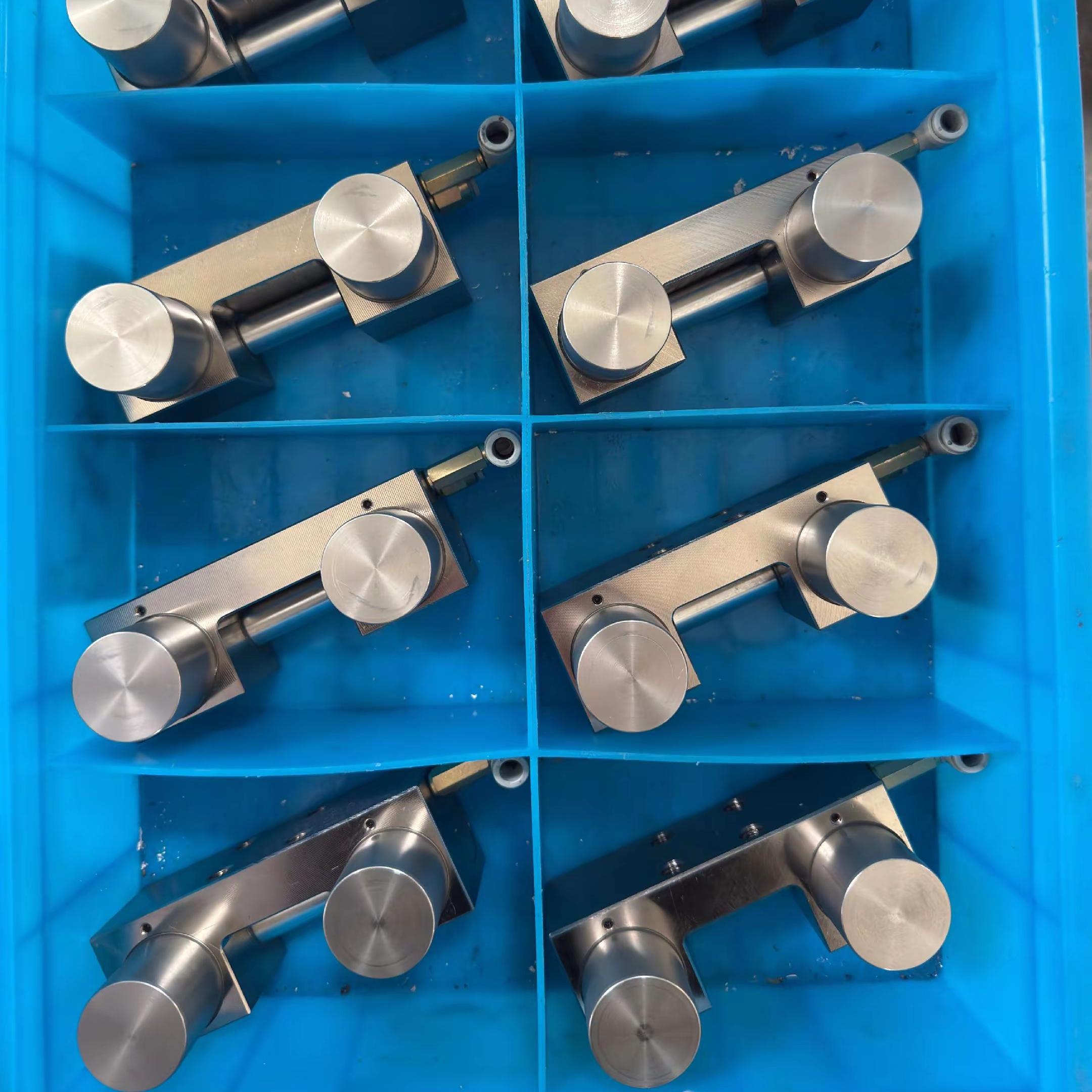

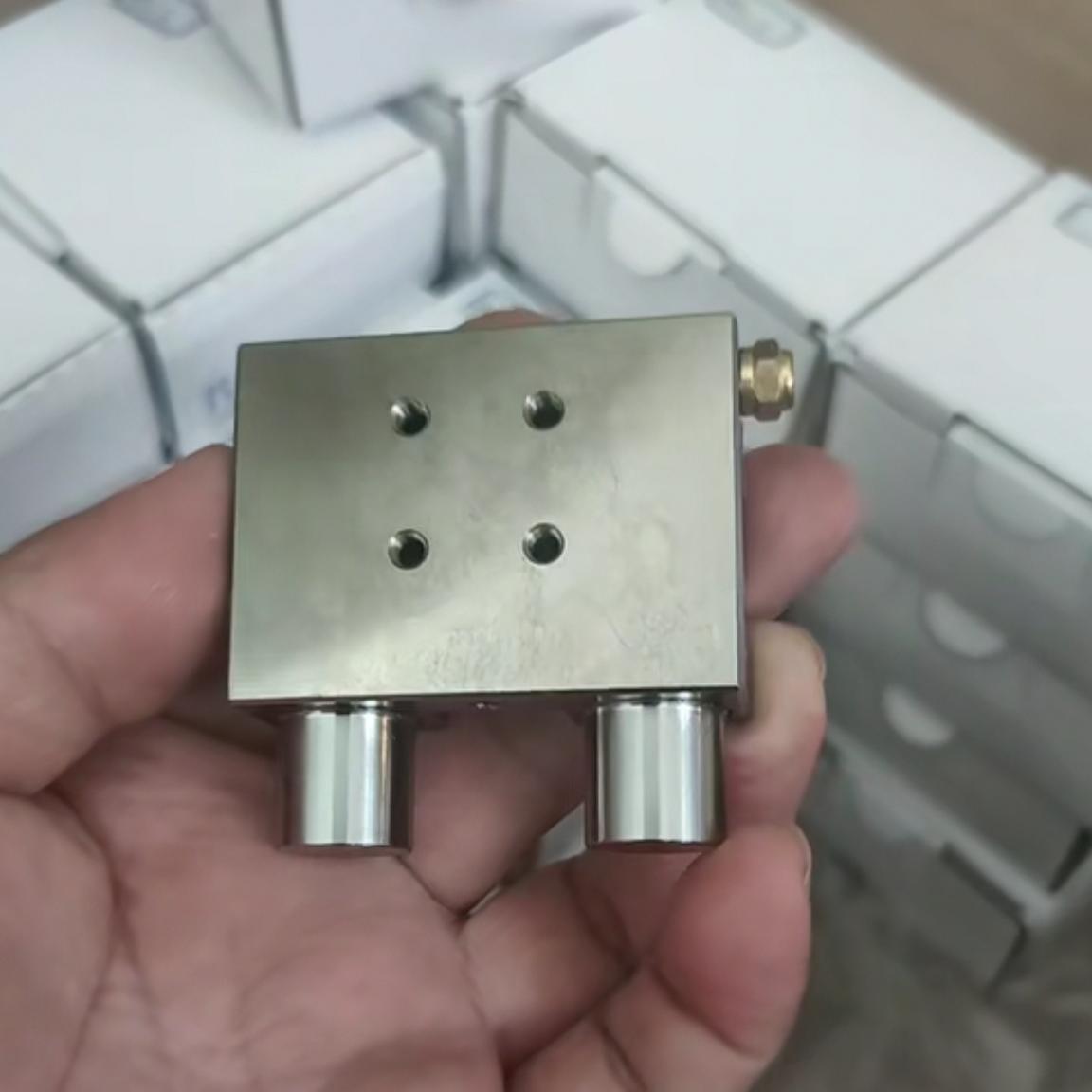

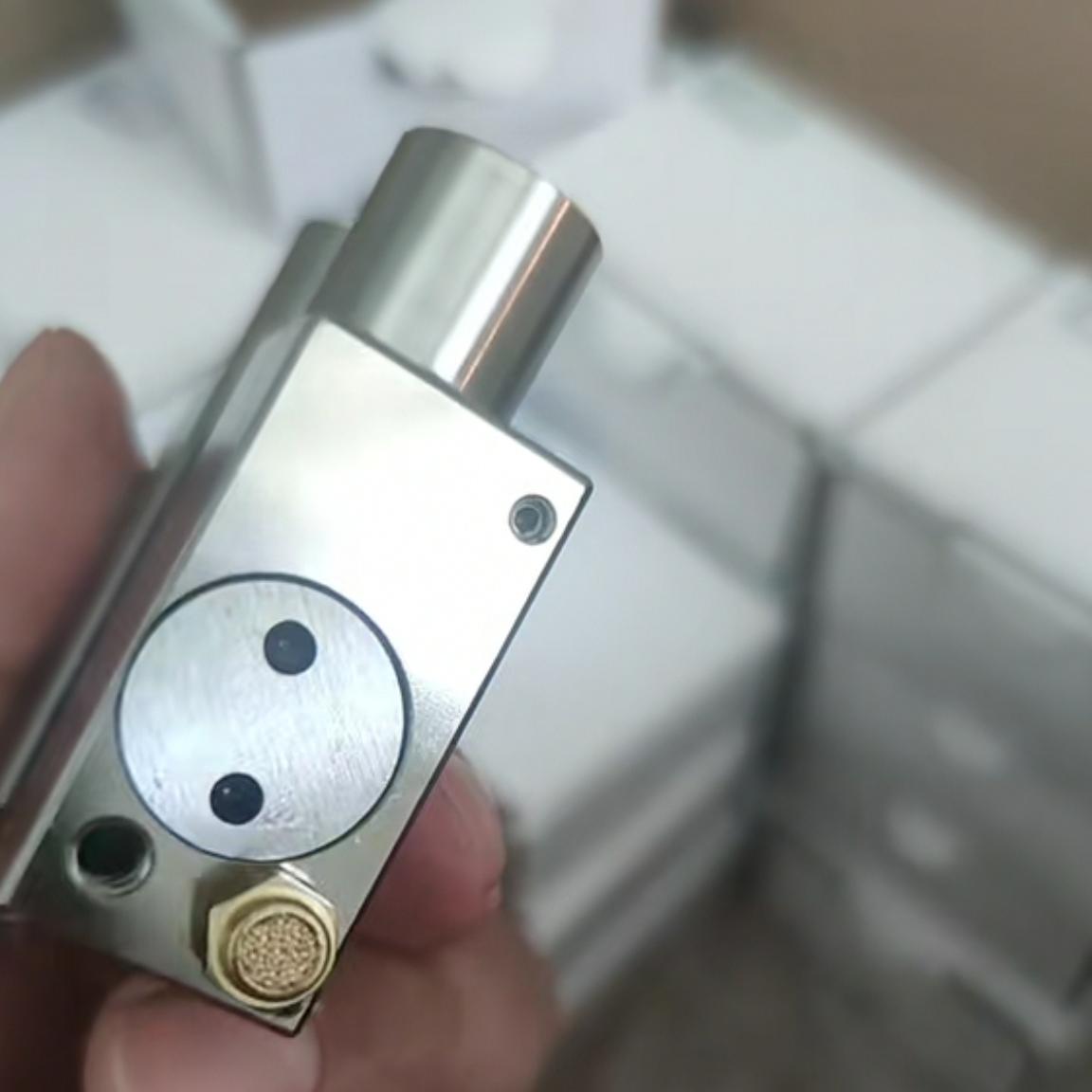

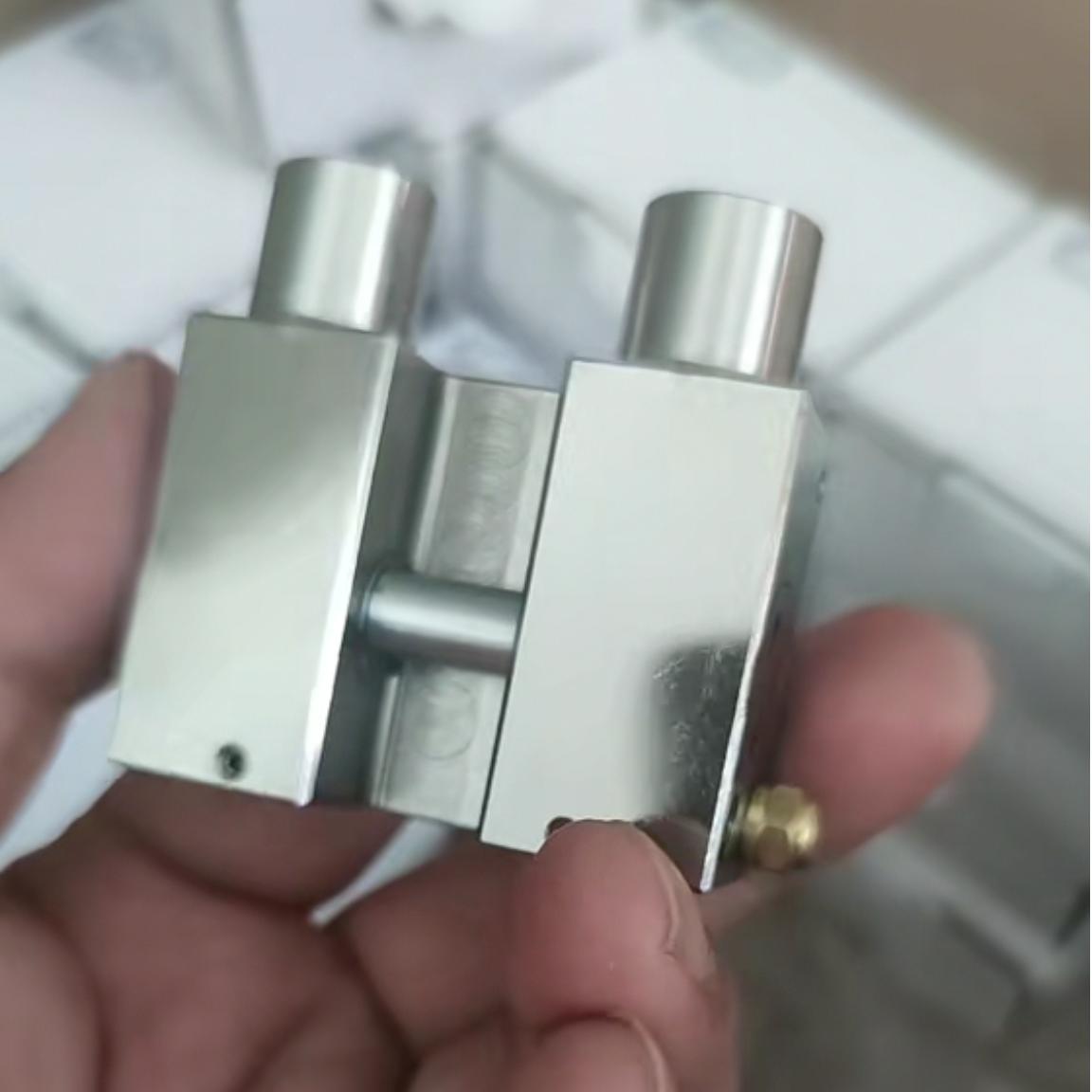

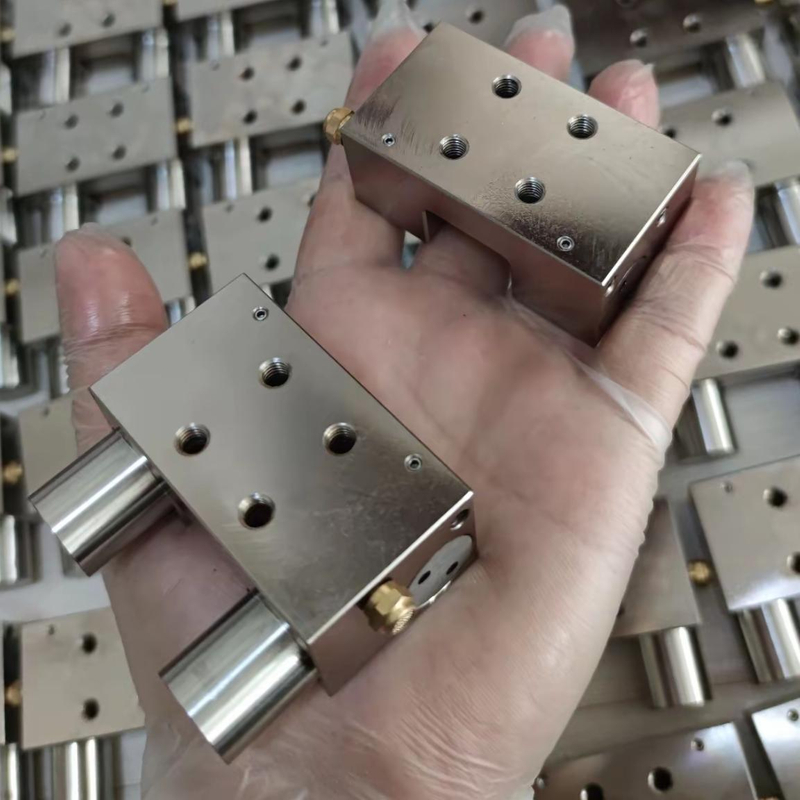

Replace MKS 15mm Linear Rail Pneumatic NC Clamping Braking Element
Engineered specifically for compatibility with standard 15mm linear rails,this clamping and braking element delivers identical function to MKS equivalents.Crucially,it offers significant advantages:enjoy substantially lower cost and shorter lead times without compromising on performance or reliability.The clamping element is in stock for fast delivery at a competitive price.
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 15mm |
| Standard type rated holding force(N) | Standard connection 400N,pressurized connection 1050N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
15mm Linear Rail Braking Element Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 35% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamping element main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close(NC) Clamping Element Video
