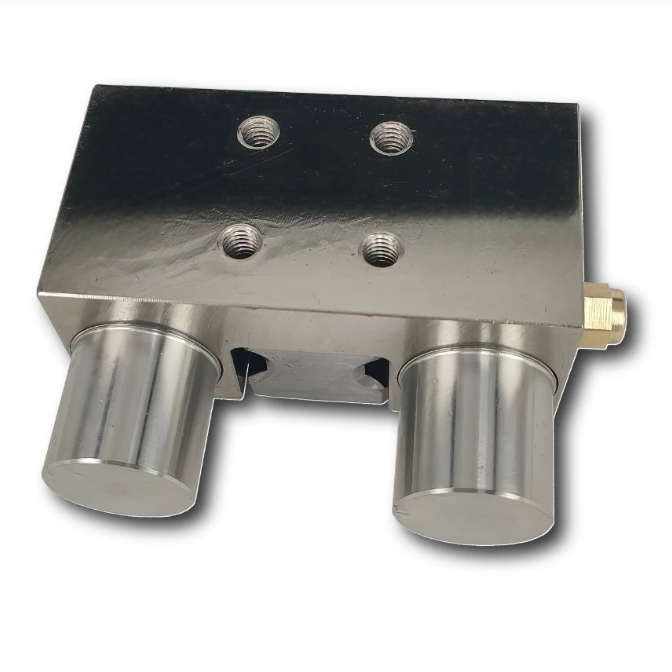

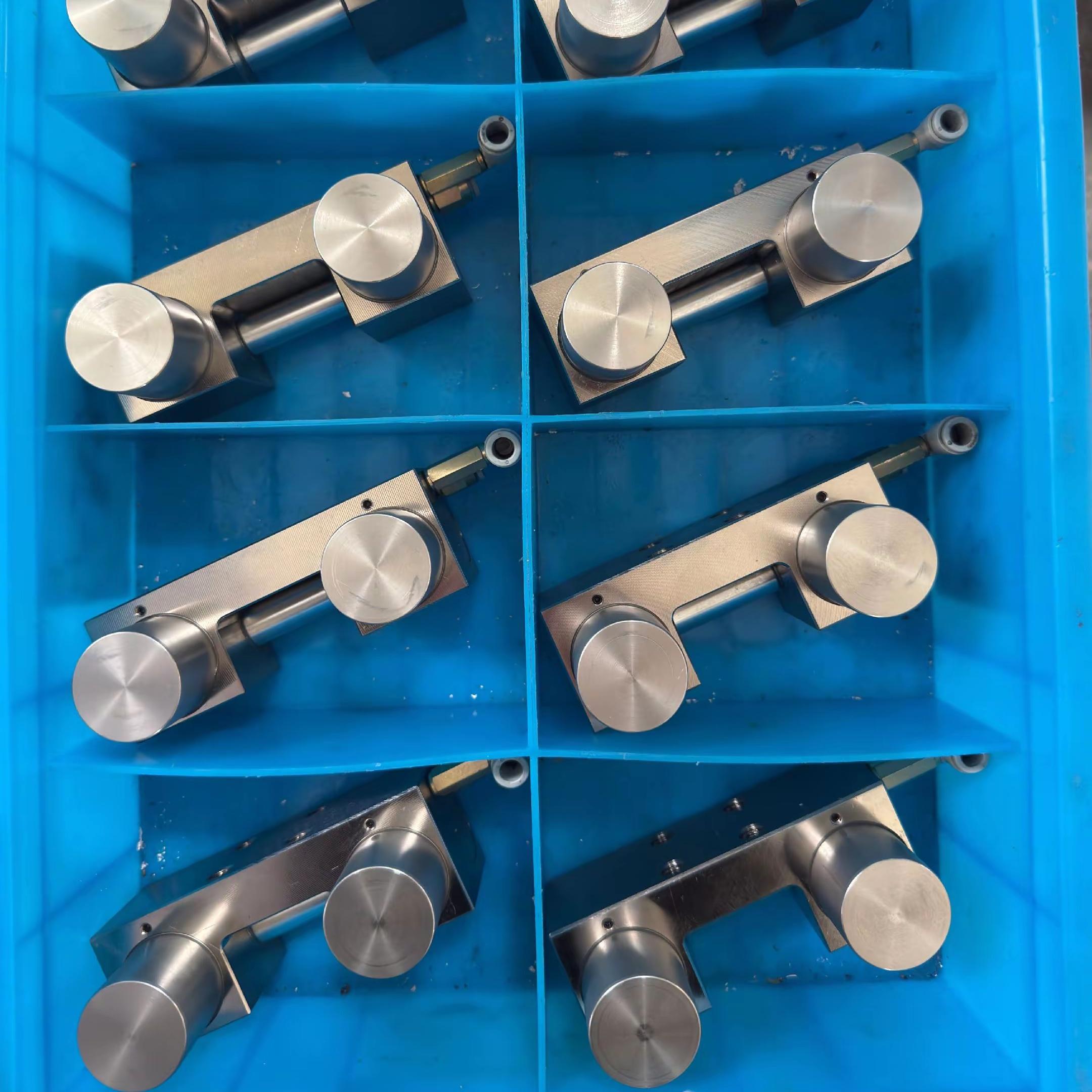

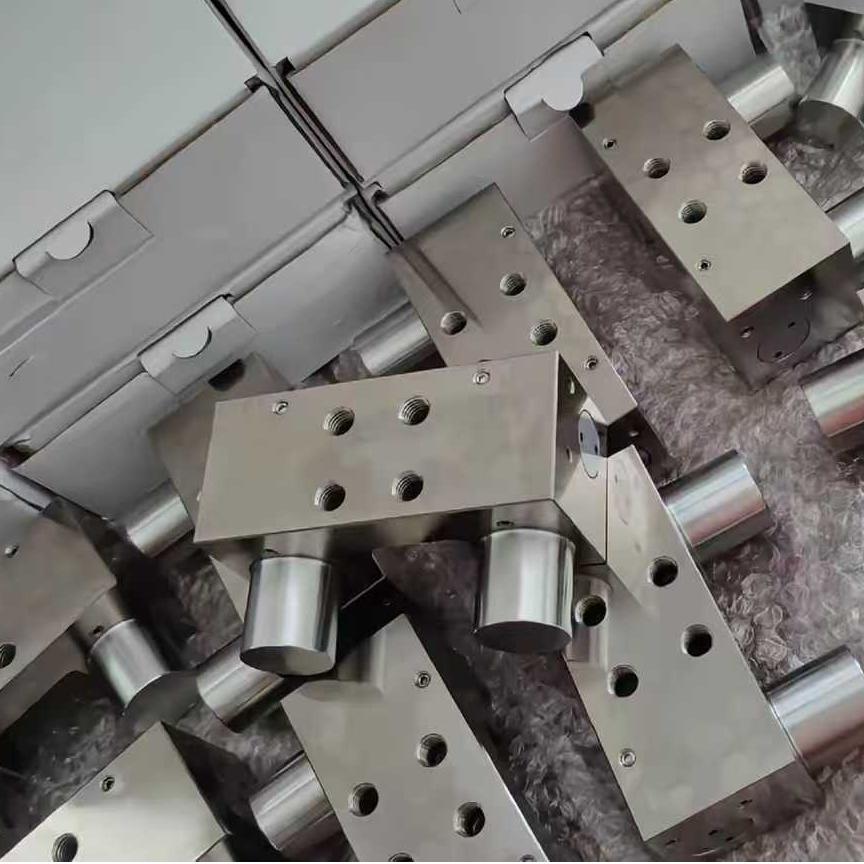

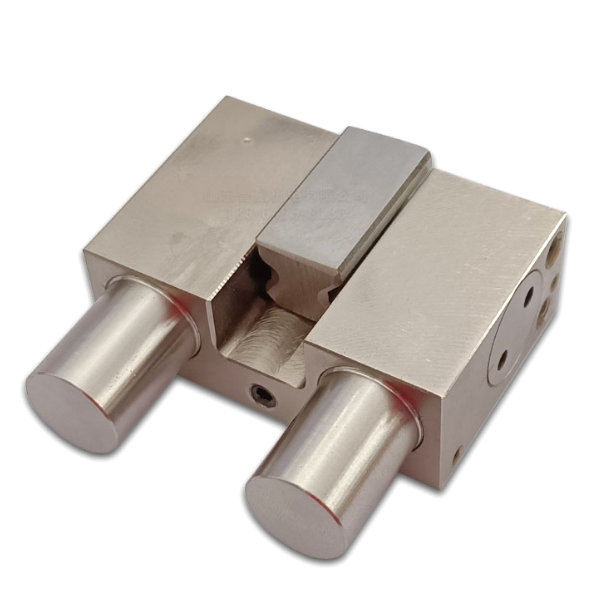

Pneumatic NC Clamping Braking Element for 15mm HIWIN Linear Rail
Engineered for critical safety applications,these pneumatic NC clamping braking element automatically lock without air supply and release when air is supplied.With massive in-stock inventory,orders ship within 24 hours at competitive industrial pricing. Request your quote today for reliable HIWIN 15mm rail compatible braking solutions!
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 15mm |
| Standard type rated holding force(N) | Standard connection 400N,pressurized connection 1050N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Linear Rail Clamping and Braking Element Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 40% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamping element main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close(NC) Clamp Video
Pneumatic NC Clamping Braking Element for 15mm HIWIN Linear Rail
Engineered for critical safety applications,these pneumatic NC clamping braking element automatically lock without air supply and release when air is supplied.With massive in-stock inventory,orders ship within 24 hours at competitive industrial pricing. Request your quote today for reliable HIWIN 15mm rail compatible braking solutions!
Specification:
| Clamp Types | Pneumatic normally close |
| Applicable guideway sizes | 15mm |
| Standard type rated holding force(N) | Standard connection 400N,pressurized connection 1050N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Linear Rail Clamping and Braking Element Key Advantages:
Lead time:Large stock inventory.
Cost-effective: 40% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamping element main body is nickel-plated and has good rust resistance.
Pneumatic Normally Close(NC) Clamp Video
