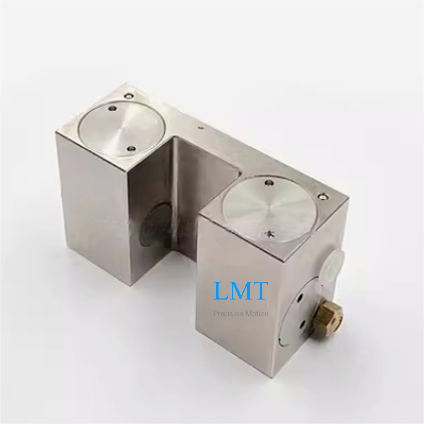

MK2501A Replacement Pneumatic Normally Open Clamp Fixture for 25mm Rails
Upgrade your 25mm linear guide system with this high performance pneumatic normally open clamp fixture.Engineered as a direct MK2501A replacement,this industrial clamp delivers instant rigidity and vibration suppression for precision applications.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
25mm Rail Pneumatic Normally Open Clamp Fixture Aadvantages:
Fast delivery within 2 days.
Help you save 25%~45% of the cost.
Direct replacement for Zimmer MK series pneumatic normally open clamp.
High durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Pneumatic NO Rail Clamp Video
