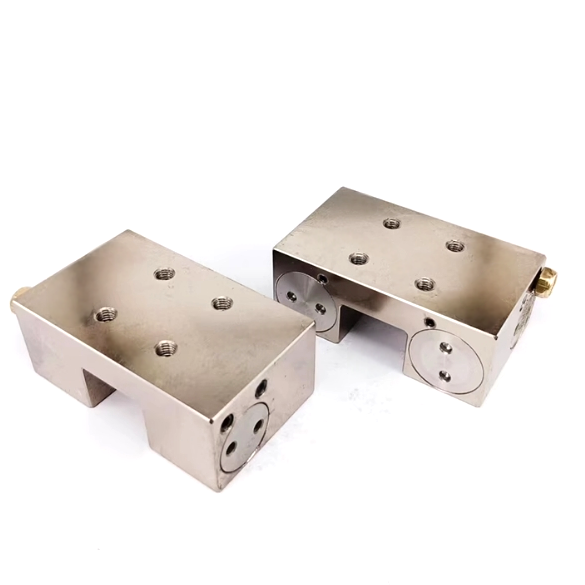

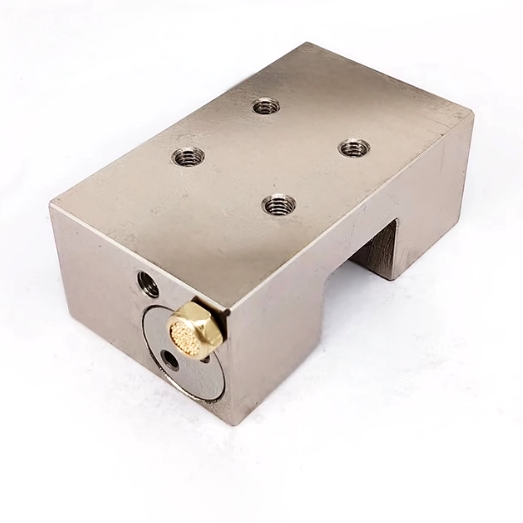

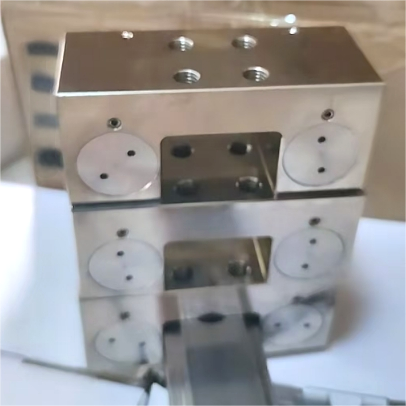

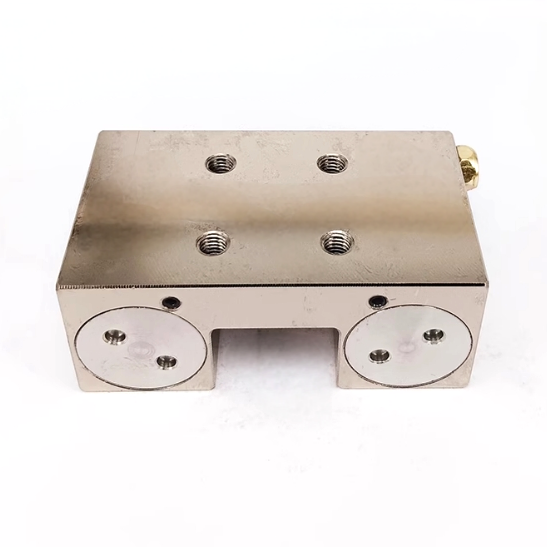

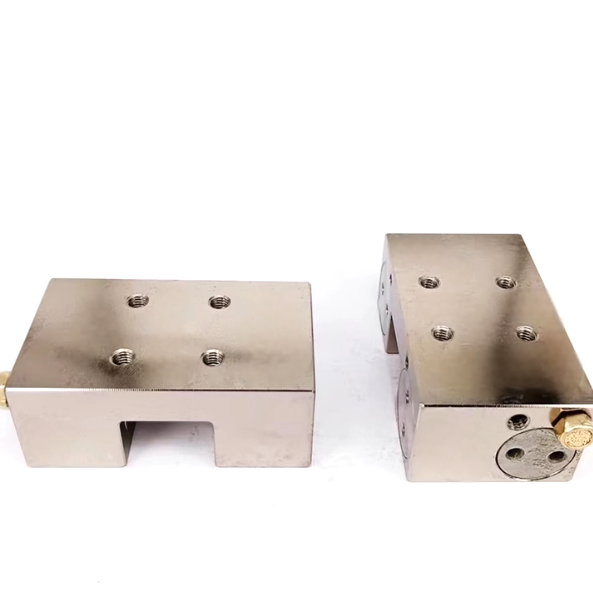

Alternative To MK2501A Pneumatic Normally Open 25mm Clamp Brake
The clamp brake is loosened without air supply and clamped when air is applied.Designed for 25mm linear guides,this clamp is a replacement for the popular MK2501A clamp,effectively preventing vibration while enhancing linear guideway rigidity and safety.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Brake?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK2501A Clamping Element.
High durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
