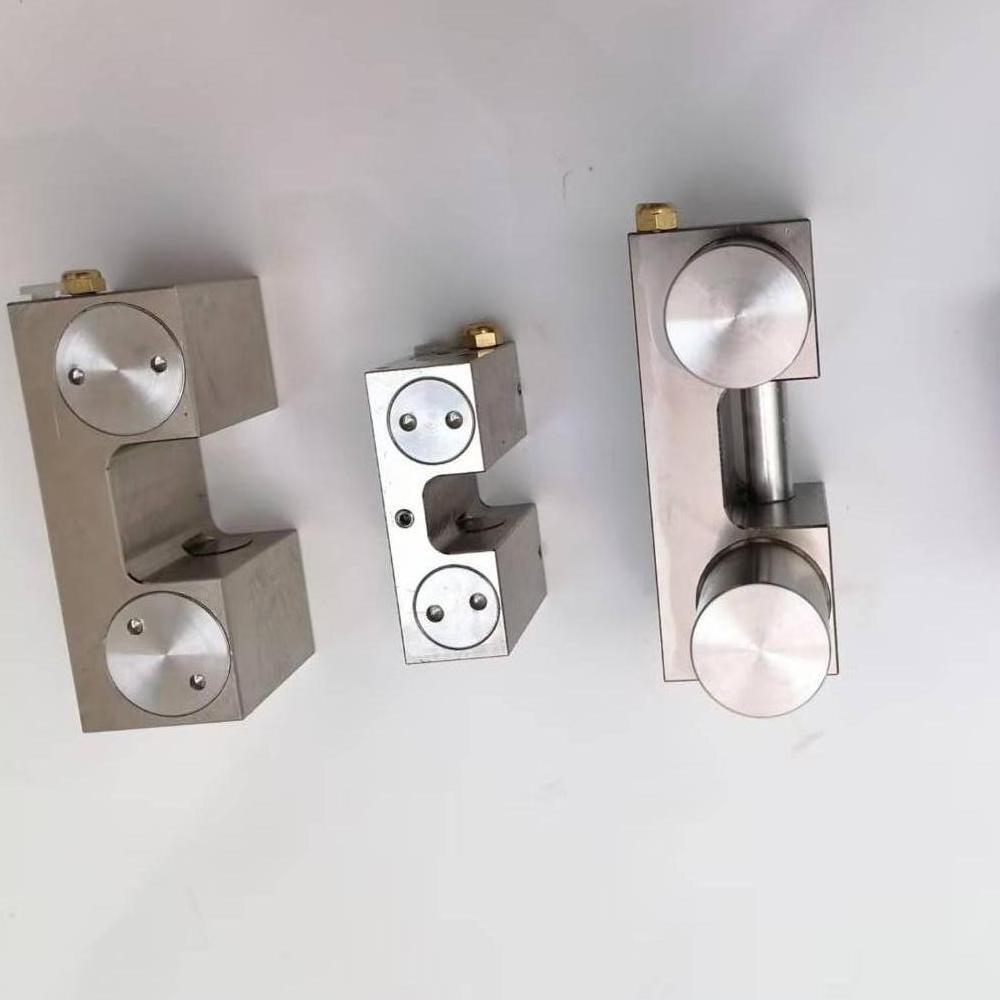

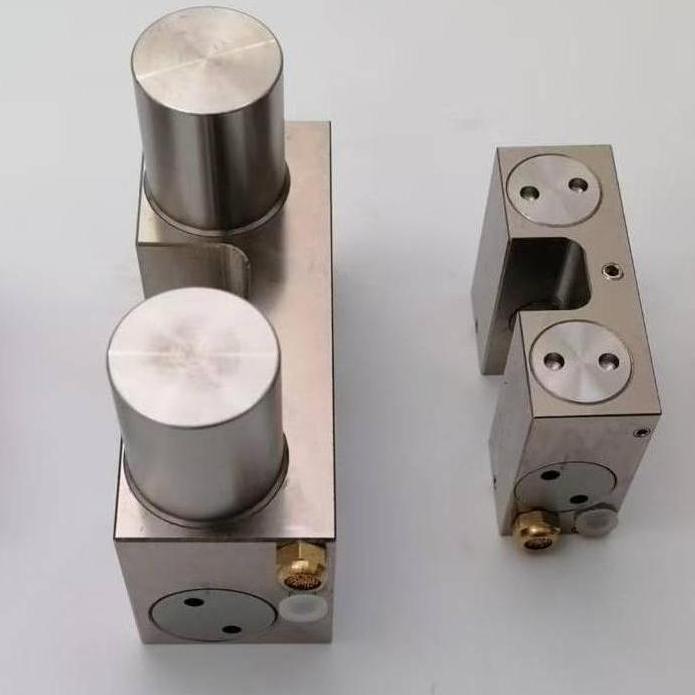

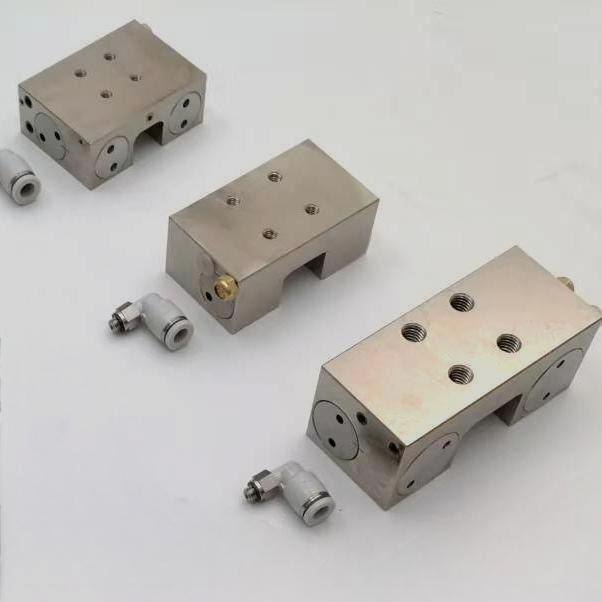

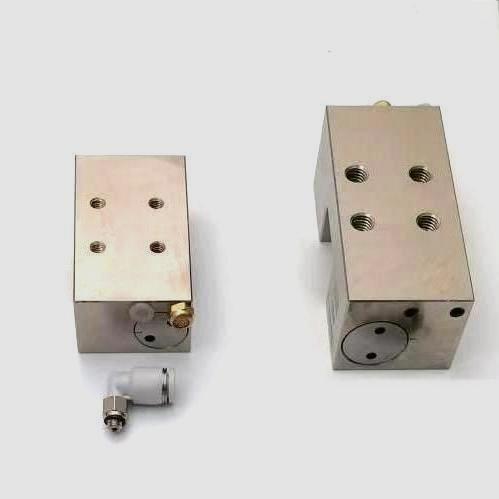

Pneumatic Normally Open Clamp Braking for 25mm Linear Guide
This clamp braking is effective in improving the rigidity and safety of the linear guide system.It is in the loosened state when air is not supplied and in the clamped state when air is supplied.Suitable for most 25mm linear guides on the market.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 1200N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Why Choose Our Linear Guide Clamp Braking?
Fast delivery within 3 days.
Help you save 35% of the cost.
Direct replacement for Zimmer MK2501A Clamping Element.
High durability,up to 5 million static clamping cycles.
This rail clamping element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
