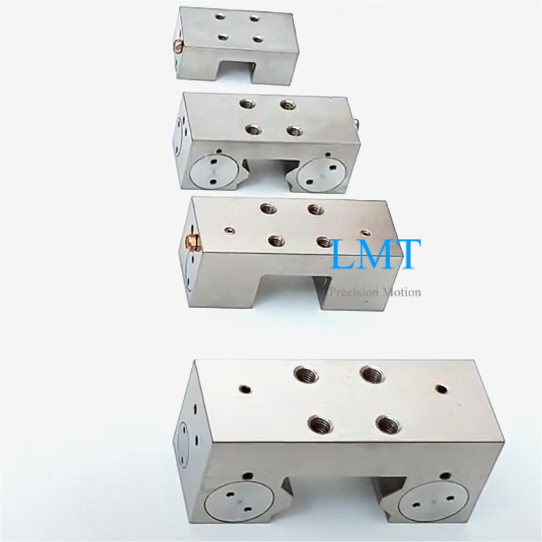

Pneumatic Normally Open Clamp Fixture for HGH45 HGW45 Linear Rail
Secure heavy loads and eliminate vibration in critical linear systems with this heavy-duty Pneumatic Normally Open Clamp Fixture engineered exclusively for HIWIN HGH45 and HGW45 guides.This pneumatic clamp delivers essential anti-vibration protection and rigidity enhancement,transforming your linear motion system into a locked-down platform for ultimate process reliability.
Specifications：
| Clamp types | Pneumatic normally open |
| Applicable guideway sizes | 45mm |
| Rated holding force(N) | 2250N |
| Open air pressure | 0.2~0.6Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HGH45 HGW45 Guide Pneumatic NO Clamp Fixture Advantage:
Fast delivery within 2 days.
Help you save 25%~45% of the cost.
Direct replacement for Zimmer and NBK brand MK series clamp fixture.
High durability,up to 5 million static clamping cycles.
This rail braking element is compatible with most linear guide systems available on the market,including major brands such as HIWIN,THK,PMI,WON,NSK,NB,and ABBA.
Pneumatic Normally Open Rail Clamp Video
