Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
The 35mm manual rail lock clamp directly replaces HK3501A clamping elements,eliminating complex setups.Engineered for industrial rigidity,its lock mechanism prevents vibration shifts during heavy machining.Achieve instant position locking without tools – ideal for CNC,welding,and precision assembly.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 35mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Manual HK3501A Replacement Clamp Key Advantages:
The manual clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual locking mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.

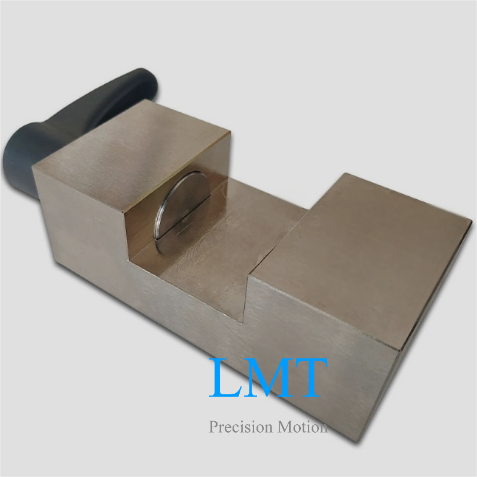

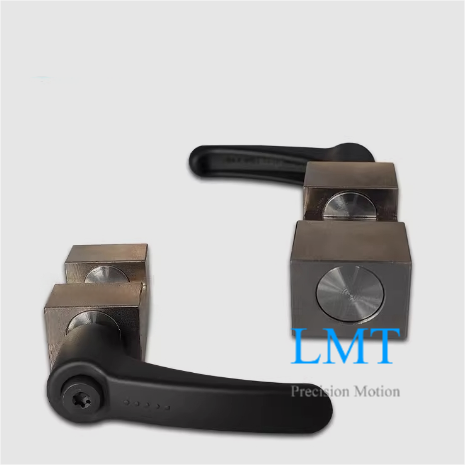

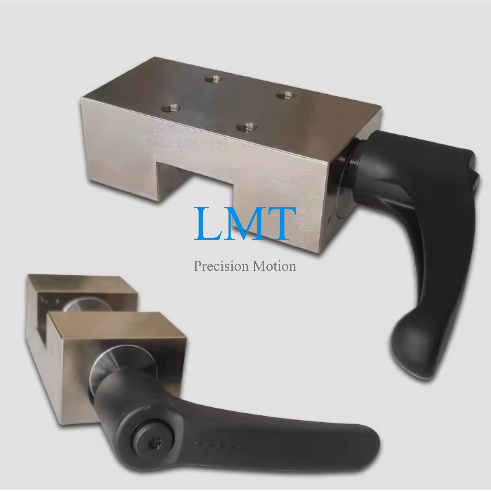

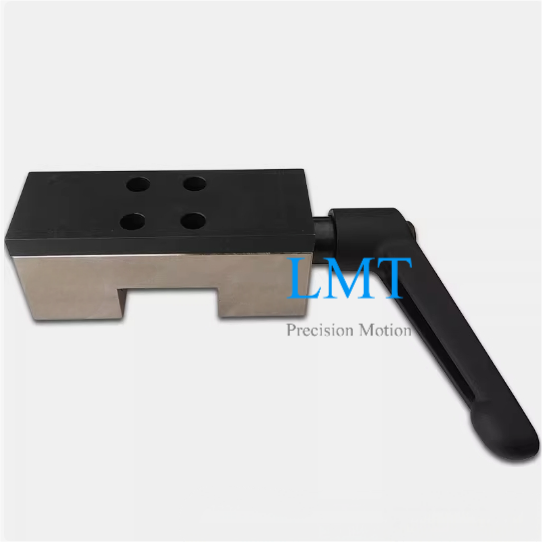

Tool-free 35mm Rail Lock Clamp Pictures
The 35mm manual rail lock clamp directly replaces HK3501A clamping elements,eliminating complex setups.Engineered for industrial rigidity,its lock mechanism prevents vibration shifts during heavy machining.Achieve instant position locking without tools – ideal for CNC,welding,and precision assembly.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 35mm |
| Rated holding force(N) | 2000N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Manual HK3501A Replacement Clamp Key Advantages:
The manual clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
The manual locking mechanism ensures a strong,vibration-resistant hold,preventing unwanted movement during operation.
Provides reliable braking force to halt motion,making it ideal for use as a manually operated mechanical end stop or safety block.
Tool-free 35mm Rail Lock Clamp Pictures
