Tool-free opening and closing:By turning the clamping lever.
Maintenance free:Up to 50,000 static clamping cycles.
Lead time:Large inventory in stock
Lock linear guide rails securely with our manual clamp.Turn the manual lever to instantly engage or release this essential fixture.It delivers reliable position locking,prevents vibration,and enhances structural integrity during precision applications.Compatible with most standard 15mm linear guides.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 15mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
15mm Linear Guide Manual Locking Clamp Key Advantages:
The locking clamp is suitable for all common profile rail guides.
Compact construction minimizes footprint,ideal for installations with limited space.
Freely position the handle for optimal accessibility and operation in any orientation.
Lowers both initial equipment setup and long-term maintenance expenses.
This linear rail locking clamp delivers up to 2000N max clamping force for demanding industrial applications.
Streamlined design significantly reduces installation complexity and time for personnel.
Handle Options:Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.

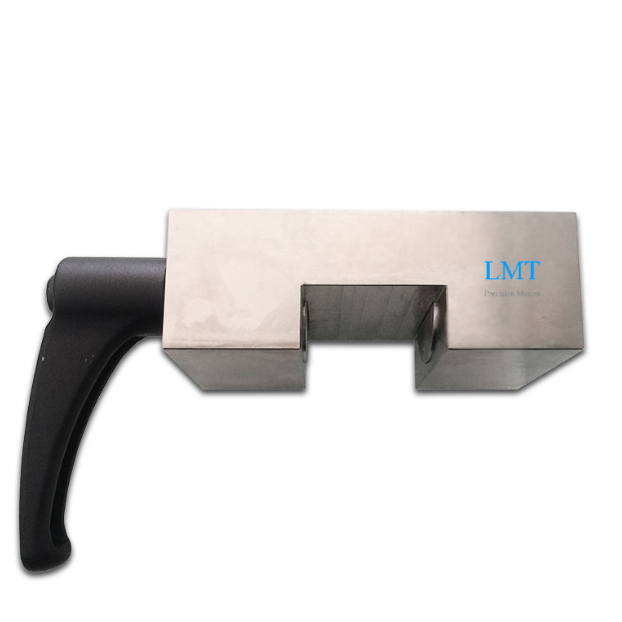

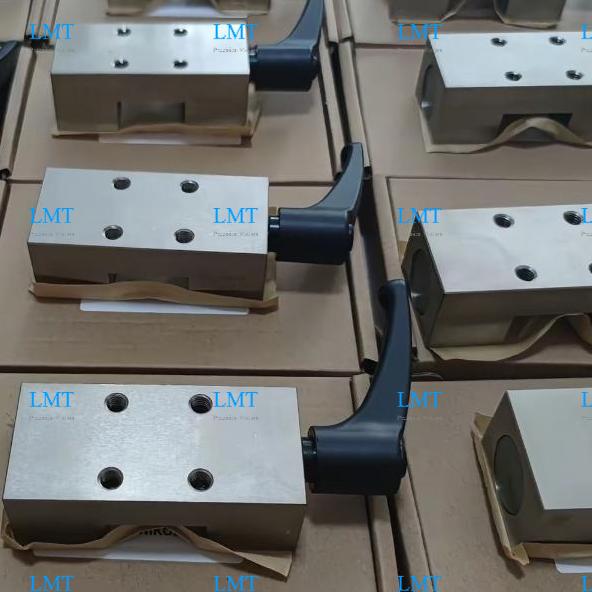

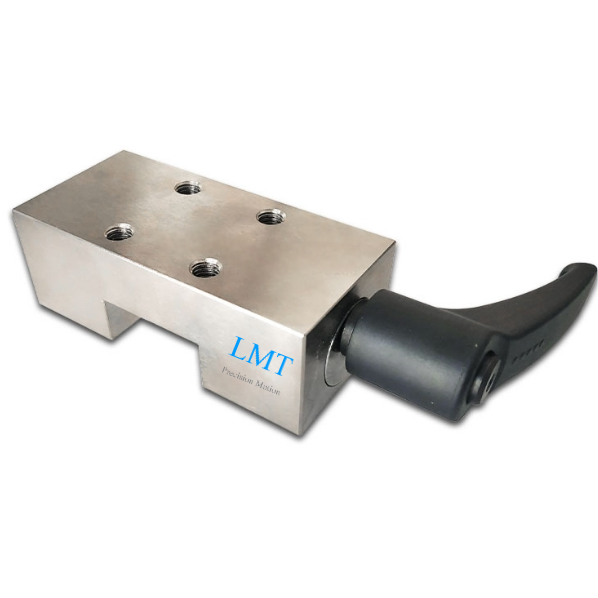

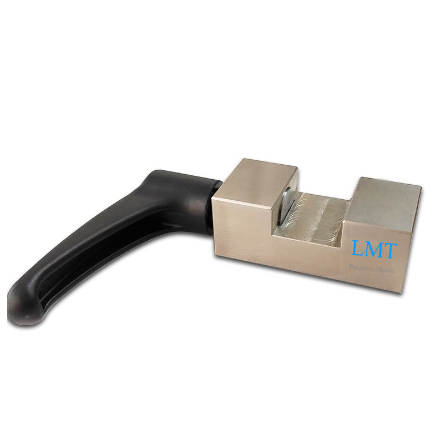

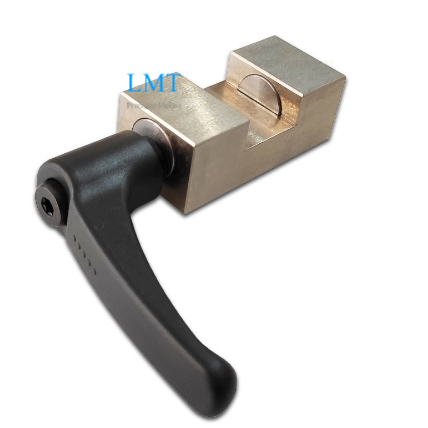

15mm Linear Rail Manual Clamp Fixture Pictures
