Tool-free opening and closing:By turning the clamping lever
Maintenance free:Up to 50,000 static clamping cycles
Lead time:Large inventory in stock
This manual rail clamp acts as a secure guide brake,instantly locking linear sliders in position and suppressing vibration.Rotate the handle for tool-free clamping or release,boosting system rigidity during precision operations.Compact and universally compatible with HIWIN,THK,PMI,and NSK 20mm linear guides.
Technical Data:
| Clamp types | Manual |
| Linear guide size | 20mm |
| Rated holding force(N) | 1200N |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
20mm Manual Rail Clamp Key Advantages:
The linear rail clamp is suitable for all common profile rail guides.
The 360° adjustable handle ensures easy operation from any angle,enhancing flexibility even in confined spaces.
Choose between standard or extended handles,adapting to varying workspace constraints and user preferences.
Its compact design minimizes space requirements,ideal for tight installations.
Replacement for zimmer and NBK brand HK series manual guide clamps.

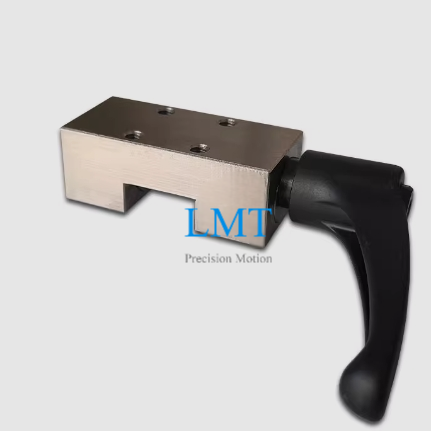

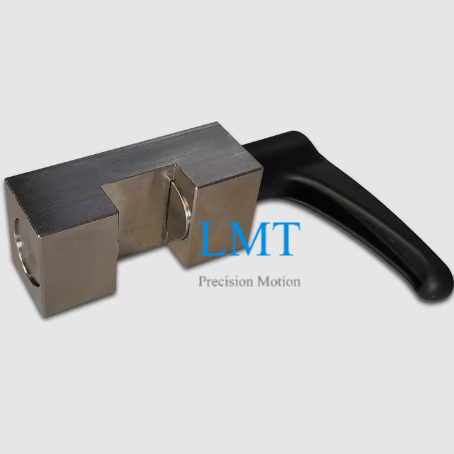

Linear Guide Rail Manual Braking Pictures：
