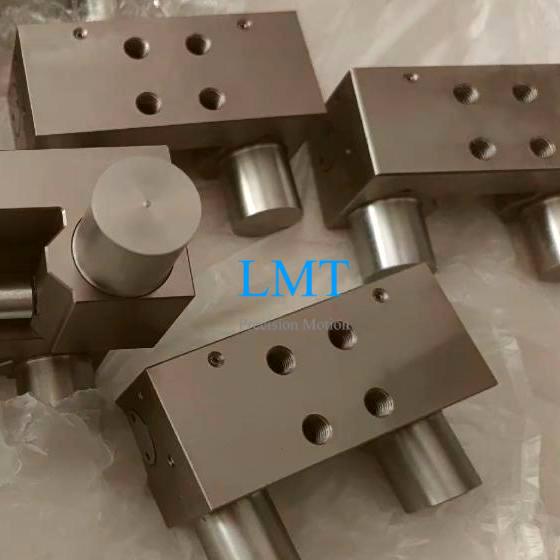

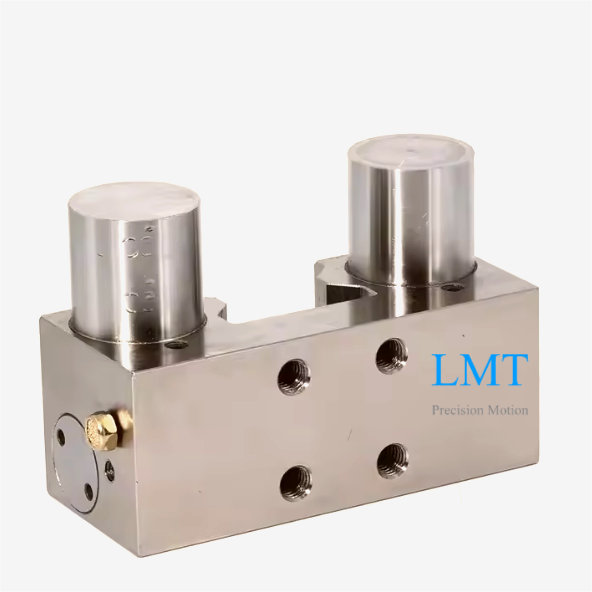

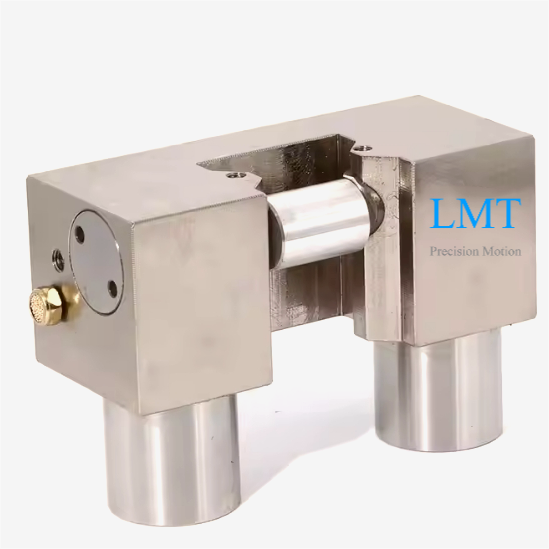

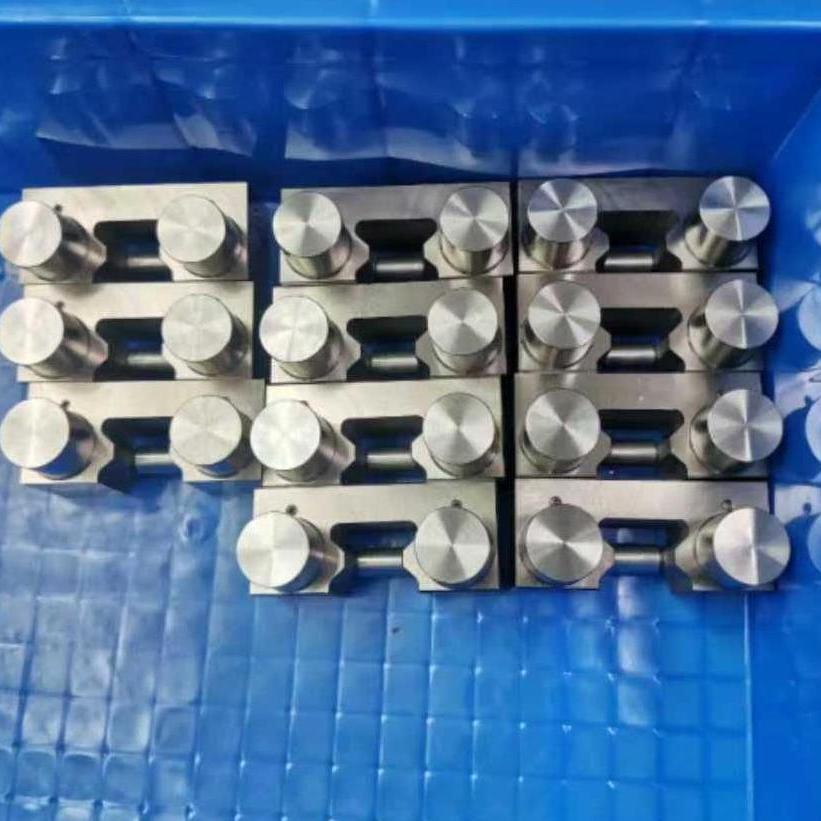

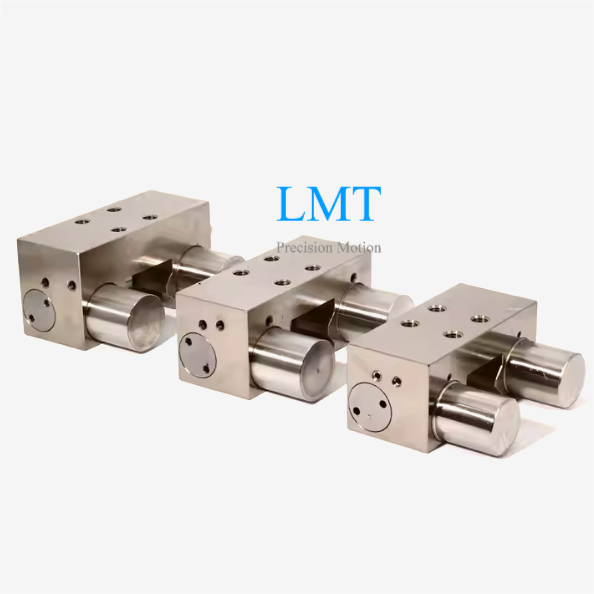

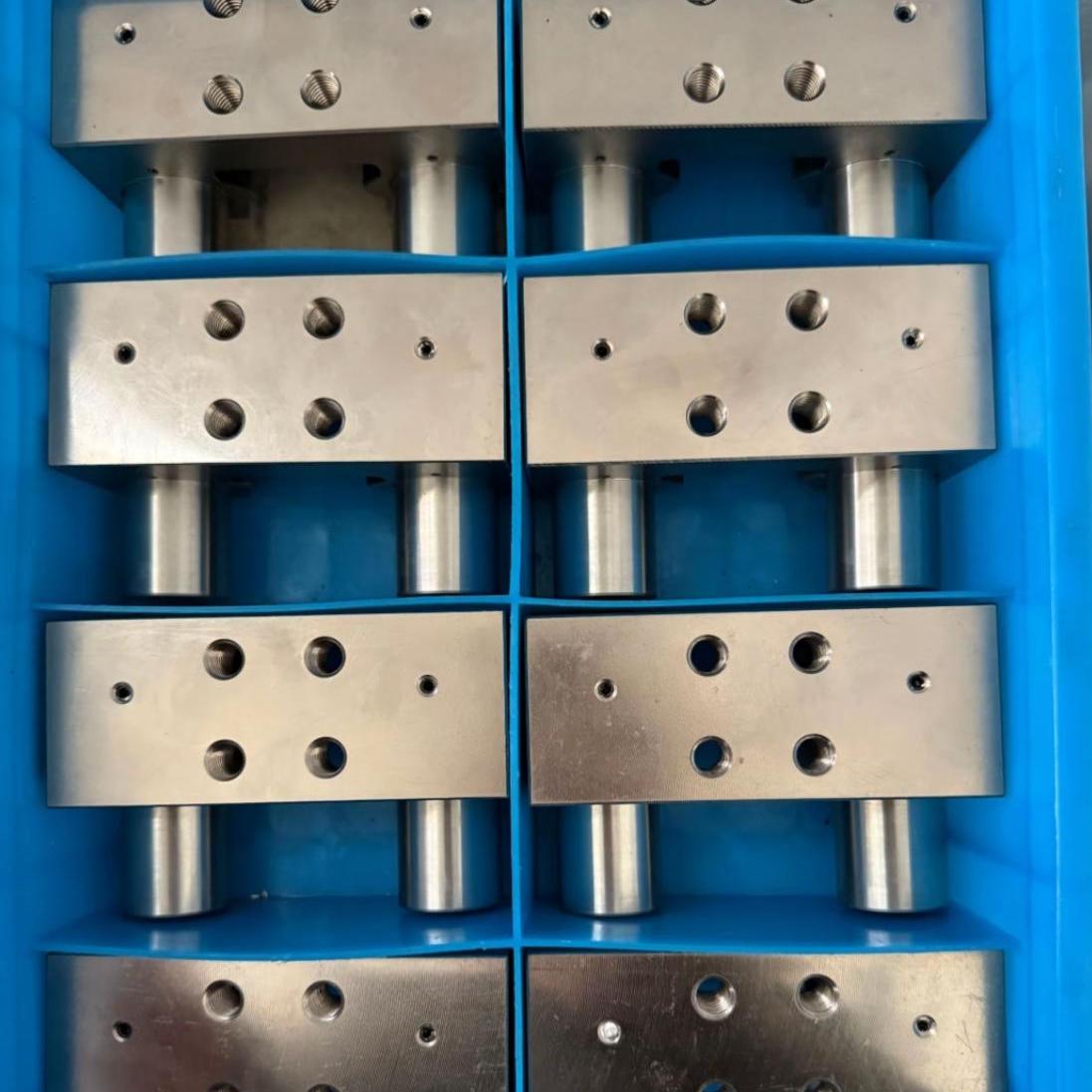

This pneumatic normally closed clamp brake securely holds position on 30mm HIWIN RG series heavy load roller linear guides.The clamp eliminates vibration,boosts rigidity,and ensures instant stop accuracy.A direct replacement for Zimmer/NBK brand MKS series clamps.
Specification:
| Clamp types | Pneumatic normally close |
| Linear guide sizes | 30mm |
| Standard type rated holding force(N) | Standard connection 1050N,pressurized connection 2600N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HIWIN RG Series 30mm Linear Guide Clamp Brake Advantages:
Lead time:Large stock inventory.
Cost-effective: 30%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic NC Clamp Brake Video
This pneumatic normally closed clamp brake securely holds position on 30mm HIWIN RG series heavy load roller linear guides.The clamp eliminates vibration,boosts rigidity,and ensures instant stop accuracy.A direct replacement for Zimmer/NBK brand MKS series clamps.
Specification:
| Clamp types | Pneumatic normally close |
| Linear guide sizes | 30mm |
| Standard type rated holding force(N) | Standard connection 1050N,pressurized connection 2600N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HIWIN RG Series 30mm Linear Guide Clamp Brake Advantages:
Lead time:Large stock inventory.
Cost-effective: 30%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
