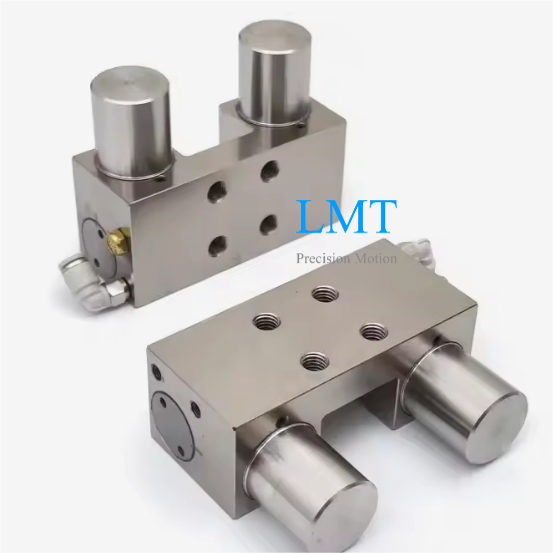

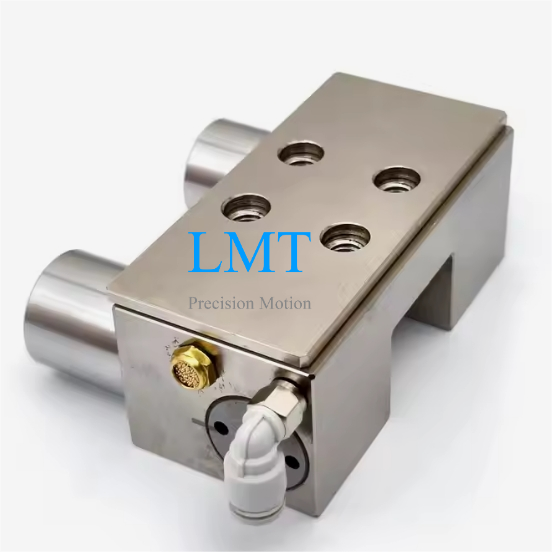

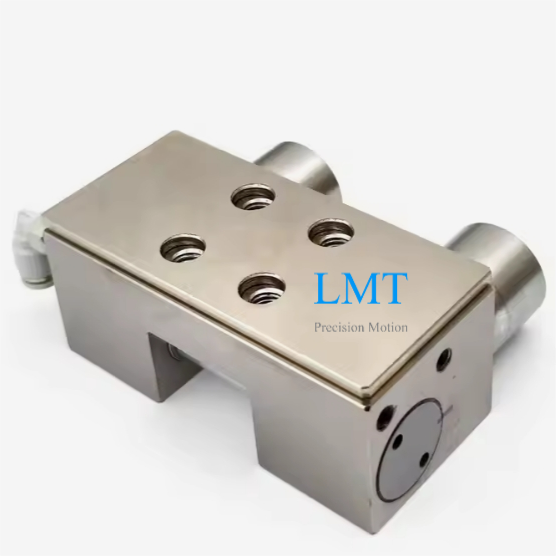

Designed as a direct-fit solution for Hiwin HGH30CA and HGW30CA rails,this industrial clamp brake delivers zero-position drift under vibration or load shifts.With 5 million static clamping cycles and rigid steel construction,it replaces MKS series pneumatic NC clamps seamlessly.Ideal for CNC,robotics,and high accuracy positioning.
Specification:
| Clamp types | Pneumatic normally close |
| Applicable guideway sizes | 30mm |
| Standard type rated holding force(N) | Standard connection 1050N,pressurized connection 2600N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
HGH30CA/HGW30CA Linear Rail Clamp Brake Advantages:
Lead time:Large stock inventory.
Cost-effective: 30%~50% cost savings.
High Durability:Up to 5 million static clamping cycles.
Broad Range of Products:For all common profile rail guides.
Completely replace the Zimmer or NBK brand MKS series linear guide clamp.
Customizable Design:Tailored to meet specific application requirements.
Corrosion Resistance:The surface of the clamp locking main body is nickel-plated and has good rust resistance.
Pneumatic NC Clamp Brake Video
